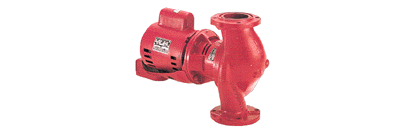

Series LD3, HD3, PD

Overview

Design Features

For applications requiring higher flow and head pressures, Bell & Gossett provides an entire range of booster pumps. The designs of these pumps are based on three-part configuration which offers complete field repairability and compact construction. All Bell & Gossett boosters are equipped with the incomparable B&G manufactured motor for quiet and efficient operation.

Operational limits:

These pumps are designed to pump liquids compatible with their iron or bronze body construction. This pump line delivers maximum capacities from 100 GPM to 150 GPM. Unless special provisions have been made by ITT Bell & Gossett, the operational limits for Series 2½", LD3, HD3, PD35, PD37, PD38 and PD40 Pumps are listed below.

Do not exceed these values:

Max. Working Pressure: 125 psi
Max. Operating Temperature: 225ºF

Electrical Rating:

115/230V, 60 Hz, 1PH
208-230/460V, 60 Hz, 3PH
115V or 230V, 60 Hz, 1PH (¼ HP only)
Motors with special electrical characteristics are available on request.
Contact your local Bell & Gossett Representative for details.

Applications

Bell & Gossett Booster Pumps may be used for hydronic heating and cooling systems, domestic water, industrial applications and general service operations. Bell & Gossett recomends that bronze constructed pumps be used for pumping potable water.
