Series 1531

Overview

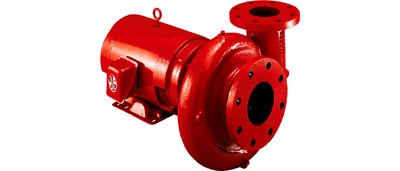

Bell and Gossett -  Series 1531 end suction, close coupled, foot mounted pumps supplied by Butt's Pumps & Motors Ltd.

Design Features

End suction, close-coupled, foot-mounted pump available in 1-1/4'' through 6'' sizes. Motor size 3/4 to 50 HP at 1750 RPM, 2 to 60 HP at 3500 RPM. Available in bronze-fitted, all-iron and all-bronze construction with flows to 2300 GPM, heads to 400 feet. Close-coupled, space-saving economy plus rugged construction make the Series 1531 an ideal selection for a variety of horizontal and vertical mount applications. Available with the B&G standard self-flushing Carbon/Ceramic mechanical seal in 175# working pressure design.

Typical Specifications

  • Back pullout design allows ease of maintenance.
  • Self-flushing mechanical seals.
  • Aluminum bronze shaft sleeve.
  • Enclosed, balanced impeller for quiet, vibration free performance.
  • Heavy duty cast iron volute construction for 175 PSI working pressure.
  • Jacking bolts provide ease of volute disassembly.
  • Gauge tappings.
  • Hydrostatic testing of each pump is standard.

Applications



Hydronic heating and cooling systems, general service, cooling towers and industrial uses.
