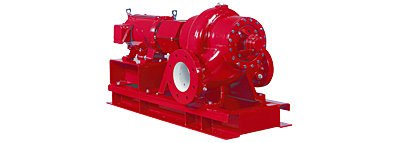

VSX Double-Suction Split-Case Pump
Overview
Design Features
At Bell & Gossett, we have over 88 years of experience in designing pumps. New VSX Double-Suction Split-Case Pump has Maintenance-Free Bearings, new One-Piece Unitized Seal,
Groutless Base Plate, Alignment-Friendly Coupling, reduced pump room footprint by up to 40% when compared to traditional split-case and vertical inline pumps. Read more in: Product Bulletin, Technical Bulletin. Pump is available in 25 sizes!
Hydraulic coverage to meet all your design requirements
- Flows from 500 to 28,000 GPM/114 to 6400 m3/h
- Heads from 30 to 530 feet/9 to 161 meters
- Working pressures of 175 and 300 psig/12 and 20 Bar
- ANSI flange ratings of 125# and 250#
- Temperature 0 to 300°F/-17 to 148°C
Materials of construction
- Volute & Cover Plates: Cast iron ASTM A159 (35,000 psi)*
- Impeller: Low Zinc Silicon Bronze ASTM 876
- Shaft: 416 Stainless Steel
- Sleeve: 304 Stainless Steel
Simply select your hydraulic requirements and then pick any one of three different suction and discharge flange orientations that best suit your installation requirements.
Only the VSX platform offers so many installation options, thanks to its revolutionary design.
Using CFD technology, we can deliver identical performance in any flange configuration. The result is that you can maximize your piping possibilities and meet a broad hydraulic range for chillers, towers, distributive and general pumping requirements.
Applications
Commercial.
* 12x14x22, 14x16x22, 16x18x19, 18x20x22 are ASTM A536 ductile iron - standard.
