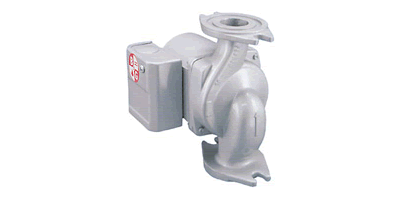

Stainless Steel SSF-22, SSF-12, SSF-9 Circulator

Overview


Bell & Gossett Stainless Steel SSF-22, SSF-12, SSF-9 Circulator supplied by Butt's Pumps & Motors Ltd.

Design Features

  • Maintenance-free, stainless steel pump body.
  • Flanged, union or sweat models available.
  • High starting torque provides dependable start-ups.
  • Unique B&G DuraGlide Bearing System assures whisper-quiet, maintenance-free operation
  • Standard, universal flange-to-flange dimensions
  • Backed by B&G's representatives and a 3-year warranty--the best in the business
  • DuraGlide Bearing System incorporates several components working together to eliminate seasonal freeze-up
  • Low-watt, energy-conserving models
  • Flanged and union system connection models are available
  • Automatic Timer and Aquastat accessories are available.

Operating Data

  • Operating Data
  • Maximum working pressure . . . . . . . 150 psi (10 bar)
  • Maximum operating temperature . . . . . 230°F (110°C)
  • Materials of Construction
  • Pump Body . . . . . . . . . . . . . . . .  . . .Stainless Steel
  • Impeller . . . . . . . . . . . . . . . . . . . . . . . .  Non-metalic
  • Shaft . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .Ceramic
  • Bearings. . . . . . . . .. . . . . . . .Double-Sintered Carbon



Applications


Residential or light commercial potable water or heating applications.
