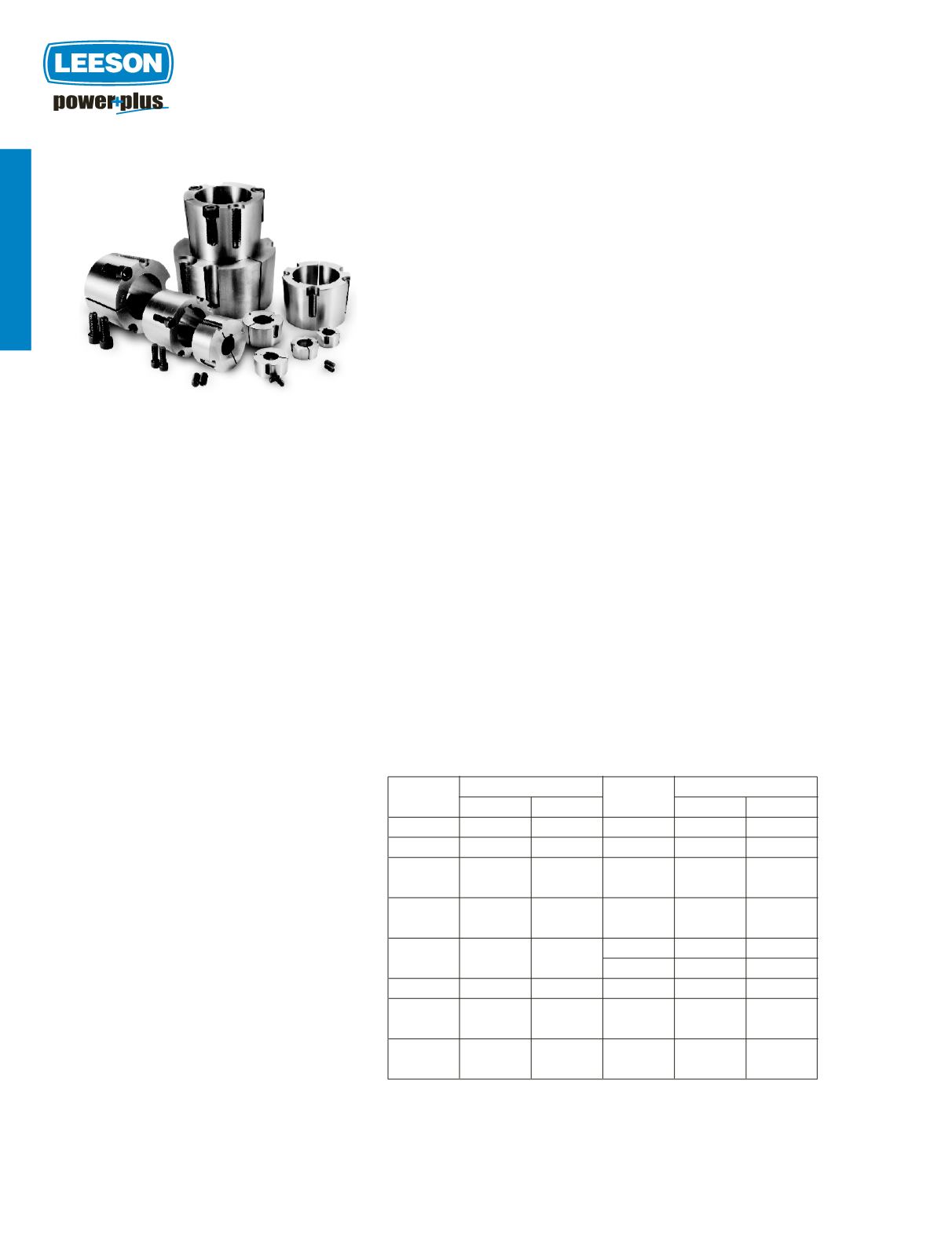

BTL TAPER BUSHINGS
Sizes 1008 - 5050 & 6050 - 120100
Bush. No.
Torque Capacity
Torque Capacity
lbf.in Nm
lbf.in Nm
1008
1,200
136
3535
44,800 5,060
1108
1,300
147
4040
77,300 8,740
1210
3,600
407
4545
110,000 12,400
1215
1310
3,850
435
5050
126,000 14,200
1315
1610
4,300
486
6050
282,000 31,900
1615
7060
416,000 47,000
2012
7,150
808
8065
456,000 51,500
2517
11,600 1,310
10085
869,000 98,200
2525
3020
24,000 2,710
120100 1,520,000 172,000
3030
lbf.in=0.113Nm
BTL Taper bushings are manufactured in
GG25 cast iron. Set screws are provided for a
precision fit.
• 1008-5050 items are available from stock.
• 86050-12100 bushings are produced made-
to-order.
Bores and keyways are available in metric
and/or inch.
Characteristics:
• Standard configuration
• Precise and secure fit
• Easy assembly and disassembly
• Excellent shock resistance, long lifetime, for
use under frequent starting and reversing
situations and other severe operating
conditions
• Large range of mounting between various
kinds of transmission components and
shafts with different diameters
BTL • TORQUE CAPACITIES
BTL TAPER BUSHINGS
CHARACTERISTICS & TORQUE CAPACITY
BUSHINGS
Bush. No.
