17
Motors Are Sleeve Bearing Unless Indicated - Rotation Determined Opposite Shaft End (Double Shaft Determined By Lead End)

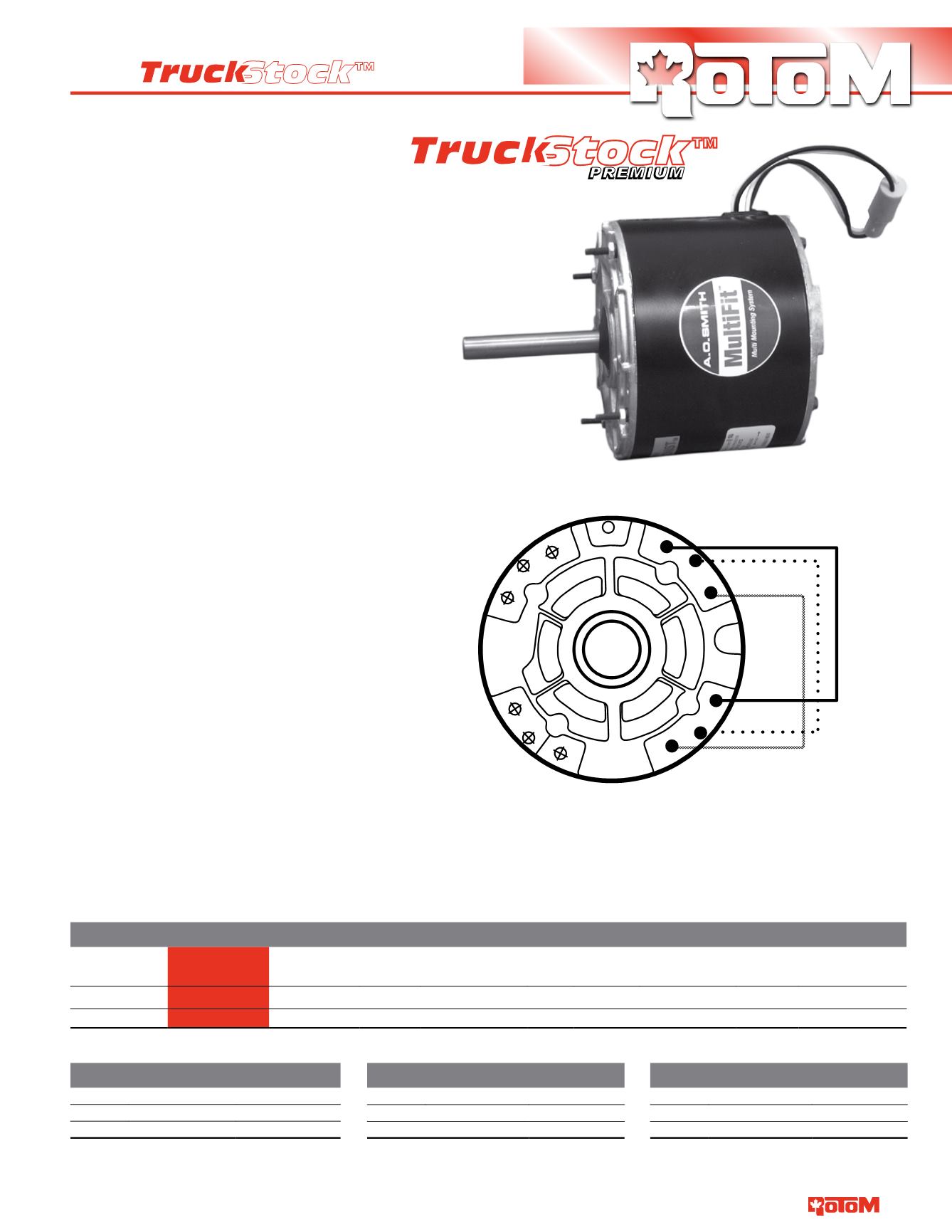

5.0" Motors
Features
• North American Made
• Multi-Mounting System
• Single speed multi-horsepower
replacement motor uses one simple
connection
• Energy-efficient PSC design
• Easy-to-read connection diagram
attached to white lead wire
• Water-resistant reversing plug
• Double sealed ball bearings for
dependable long life
• Rubber shaft slinger keeps water
and dirt out of motor
• Water-resistant rubber grommet at
lead opening
• 60°C max ambient
• Class B insulation
• Lead length 36”
• 60 Hertz
• Totally enclosed
• Continuous duty, air over
• All-angle mount
P rt #
HP
Volts
Amps
RPM
Dia Rot
Type
Body
Shaft
M4-R2722
1/8, 1/10,
1/12
208/230
0.9
1/1075
5.0"
Rev
5/370
4.0”
1/2” x 3”
M4-R2723
1/4, 1/5, 1/6
208/230
2.0
1/1075
5.0"
Rev
7.5/370
4.5”
1/2” x 3”
M4-R2724
1/4, 1/5, 1/6
208/230
1.6
1/1625
5.0"
Rev
5/370
4.5"
1/2” x 3”
M4-R2722
HP
RPM
Amps
1/8
1075
0.9
1/10
1135
0.6
1/12
1155
0.5
M4-R2723
HP
RPM
Amps
1/4
1075
2.0
1/5
1145
1.2
1/6
1165
1.0
M4-R2724
HP
RPM
Amps
1/4
1625
1.6
1/5
1715
1.0
1/6
1759
0.7
* MultiFit™ is a trademark of A.O. Smith Corporation
Replaces motors with
a 4.33, 4.42 and 4.62
inch mounting bolt
circle
4.42BC
4.62BC
4.33BC
Mounting System Replaces:
4.42BC
AOS/Westinghouse Design
Emerson 42-Frame (5" dia.)
4.62BC
GE 42-Frame (5" dia.)
Fasco 42-Frame (5" dia.)
AOS/Universal Electric Design
4.33BC
Emerson Clam-Shell
GE Cap-Can
5.0" Condenser Fan Replacement Motors
Included
• Durable collar studs with 5/8” extension,
8-32 threads
• Extra mounting nuts with locking feature
• Easy-to-install plugs
• Mounting instructions with easy-to-read
diagrams
