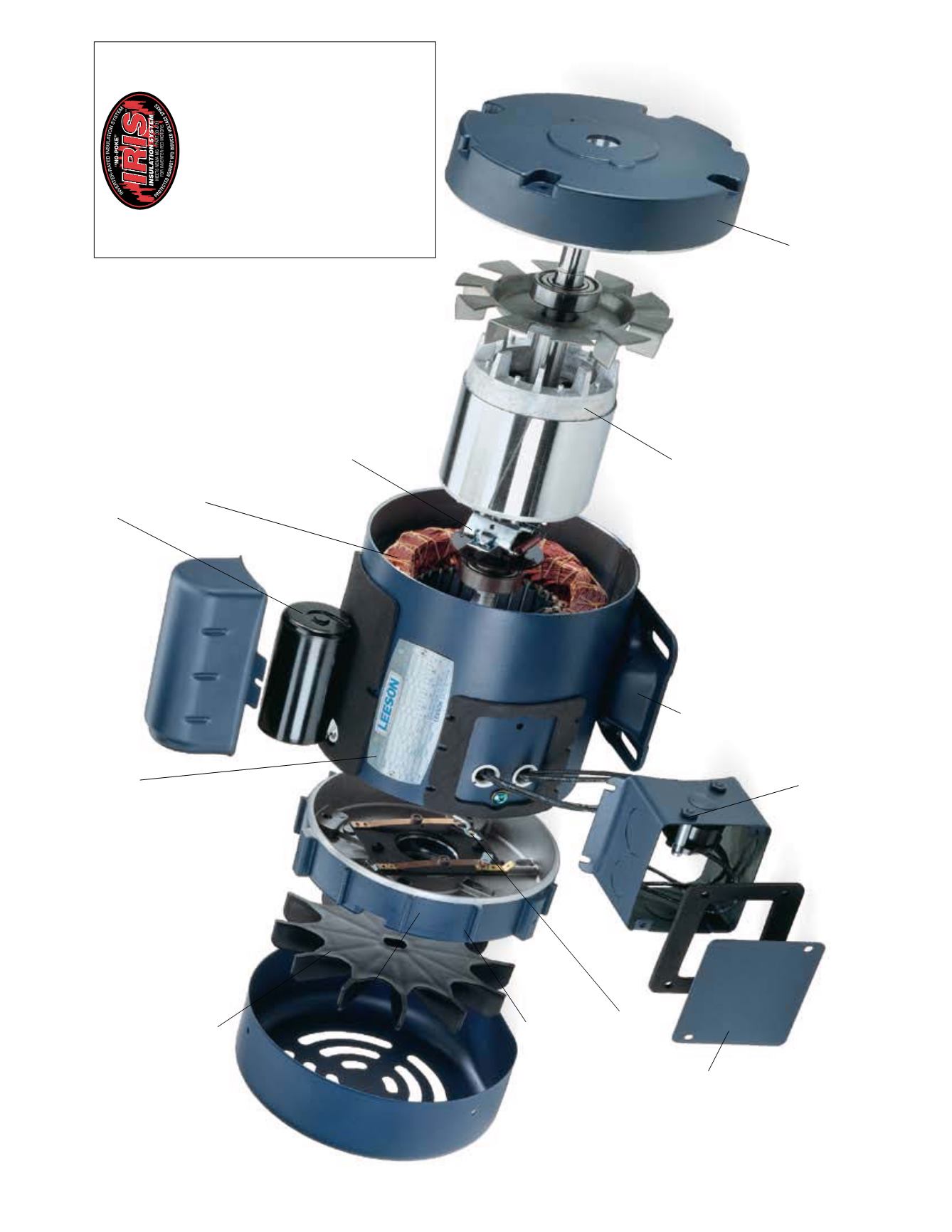

Starting Switch
– single phase
motors use a field-proven rotating
mechanism for “three phase”
reliability, even in applications
requiring frequent starts.
Industrial Design Endshield
internal ribs for rigidity and cast
iron bearing inserts for accurate
alignment and quiet operation.
Industrial Design Endshield
– heavyweight, deep cross
section design endshields, with internal ribs for rigidity
and cast iron bearing inserts precision machined for
accurate alignment and quiet operation.
Data Plate
– “full fact” metal nameplate has
complete information including connection
data, amperage and full load efficiency.
Connection Box
generously sized,
gasketed conduit box
with several access
holes and ground
screw for easy quick
connections to
permanently marked
leads.
LEESON…Industrial Quality From the Inside Out
Cooling System
– quiet, efficient cooling with
high volume, chemically inert, static-free fan.
Heavy steel fan cover channels air for maximum
cooling. Fan positively positioned by oppos-
ing flats and snap ring/shoulder for trouble-free
operation even in frequent starting applications.
Stationary Switch
– heavy-duty
silver-cadmium oxide contacts and
wear pads (single phase only).
Capacitor
– molded-case starting
capacitor in single phase motors assures
high starting torques, adequate for the
most demanding loads.
Winding
– high temperature, moisture-re-
sistant (MR200° magnet wire) copper wind-
ing tied each end, preheated, immersed
in Class H polyester varnish and cured,
resulting in a stator with vibration and
environmental resistance, built-in overload
capacity and high full-load, verified effi-
ciencies for energy savings.
Motor Base & Frame
– a heavy-
gauge base is electrically welded
in multiple locations to a seam-
welded steel frame for maximum
rigidity and mounting strength.
Overload Protection
– thermal overload protectors allow
the motor to work at its fullest while providing protection
against stall conditions and excessive overload.
Rotor/Shaft Assembly
– high pressure cast,
void-free rotor is heat shrunk to a precision
machined shaft, dynamically balanced for quiet
vibration-free operation. Electric motor grade
ball bearings used each end. Shell Dolium R
lubricant. Internal fan eliminates “hot spots”.
LEESON’s Inverter Rated Insulation
System (IRIS
) provides superior
motor protection against voltage spikes
induced by variable frequency drives.
This total insulation system protects
better than spike-resistant magnet wire
alone. Specially formed phase insulation,
cushioned and sleeved connections
(from the leads all the way into the turns),
and deep-penetrating, non-hygroscopic,
high temperature varnish are just a few
features contributing to the extra protec-
tion. The IRIS
total insulation system
is standard at no extra cost in all
LEESON stock three-phase motors, 1
HP and larger.
