Basins & Accessories
15
F
Professional Plumbing

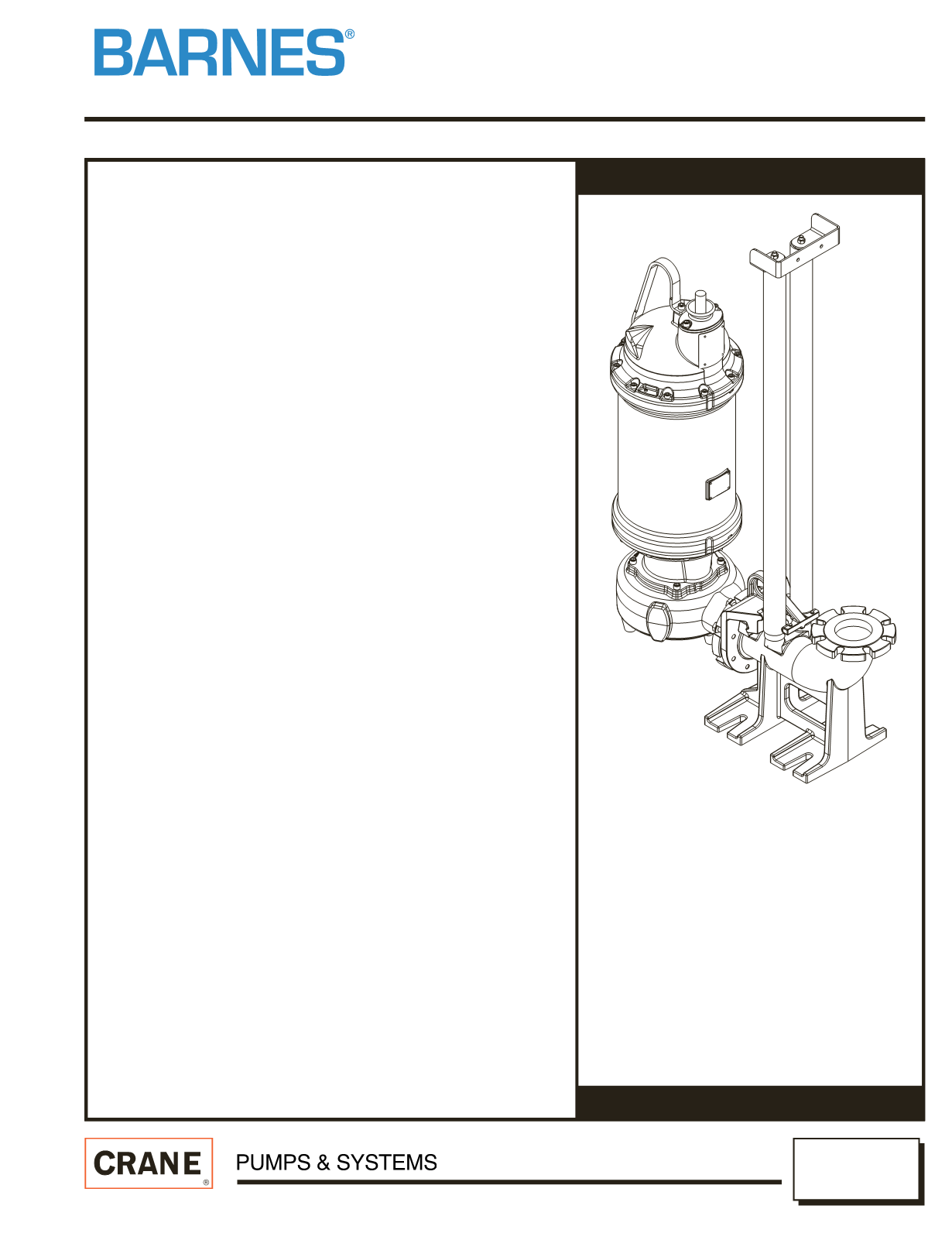

4" Break Away Fitting
Models: BAF 4x4 and BAF 4x6
11/10
Specifications:
BAF 4x4 and 4x6: Non-Sparking
The stationary portion of the BAF consists of a specially designed cast
iron base elbow which is bolted to the floor of the wet well. The pump bolts
to the cast iron moveable portion which is free to ride up and down the
guide rails. A gasket is installed into the moveable. The elastomer to cast
iron contact assures a complete and positive seal which allows pumps to
operate without hydraulic leakage, over wide range of discharge pressures.
The guide rails are attached to the base elbow at one end and to a
stainless steel Guide Cap which is attached to the underside of the wet
well cover at the other end. The Guide Cap assembly has elastomer plugs
which aid in locating the guide rails and in reducing noise and vibration of
the guide rails. The guide rails serve only to guide, they carry none of the
pump weight. 2” (48mm) schedule 40 pipe should be used for guide rails.
An intermediate guide pipe bracket should be used for depths of 13 feet
(4M) or more.
For OPTIONAL information see Intermediate Rail Supports Section.
DESCRIPTION:
THE BREAK AWAY FITTING IS DESIGNED TO
ALLOW THE SUBMERSIBLE PUMP TO BE
INSTALLED OR REMOVED WITHOUT REQUIRING
PERSONNEL TO ENTER THE WET WELL.
Model:
BAF 4x4
P/N:
128281
Model:
BAF 4x6
P/N:
128280
