BALL CHECK VALVES
1-1/4" & 2" Cast Iron
1-1/4", 1-1/2" & 2" PVC
4/04
Series: 1-1/4" thru 2"
Cast Iron & PVC
inches
(mm)
1-1/4” & 2”, Cast Iron
HOUSING ..............................
ASTM Class 30 Cast Iron
BALL .....................................
Natural Rubber
PLUG......................................
Schedule 40 PVC
TEMPERATURE ....................
80°C and a potential peak of 100°C.
PRESSURE TEST..................
150 Lbs./Sq. In.(10.6 kgs/sq. meter).
P/N: 1-1/4” ............................
077881 Weight: 4.4 lbs (2kg)
P/N: 2” ...................................
077882 Weight: 9.0 lbs. (4.1kg)
1-1/4”, 1-1/2” & 2”, PVC
HOUSING ..............................
PVC
BALL .....................................
Nitrile or Buna-N
PLUG......................................
PVC
TEMPERATURE ....................
80°C and a potential peak of 100°C.
PRESSURE TEST..................
150 Lbs./Sq. In.(10.6 kgs/sq. meter).
P/N: 1-1/4” ............................
085448 Weight: 1.0 lbs. (.46kg)
P/N: 1-1/2” ............................
099727 Weight: 1.5 lbs. (.68kg)
P/N: 2” ...................................
089874 Weight: 1.5 lbs. (.68kg)
FEATURES:
Works both vertically and horizontally (in the latter case, place the “bulge” above
the axe of flow- the ball can thus return to its seat by the pull of gravity).
Ball has sufficient weight to seat tightly and moves freely to open.
Low headlosses as the ball is set completely to one side at a maximum rate of
flow
Works in silence.
No maintenance.
Easy dismantling.
Supplied with clean out port and plug.
APPLICATIONS:
Waste water or fluids of varying viscosity, liquid manure, etc.

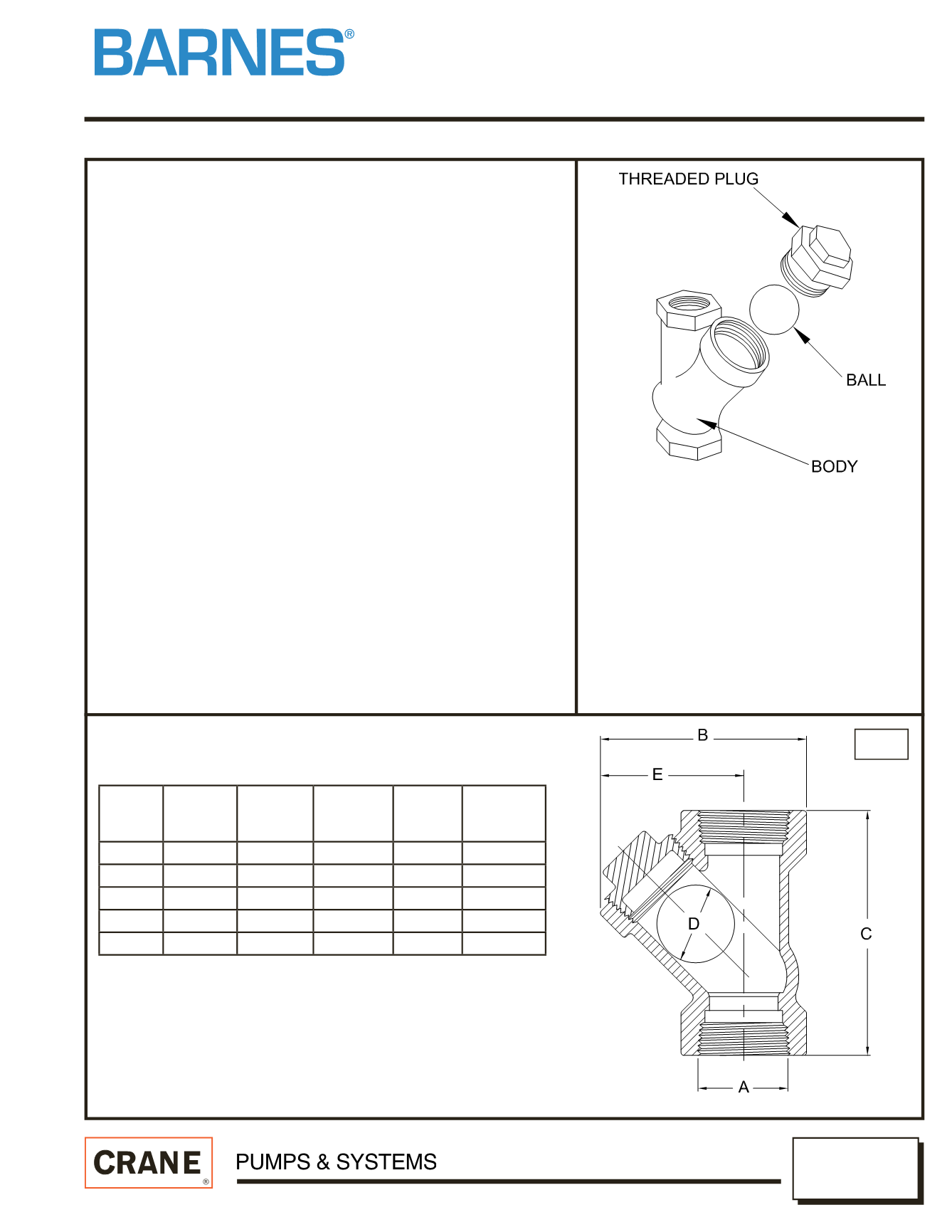

PART
NO.
SIZE
A
WIDTH
B
LENGTH
C
BALL
DIA.
D
E
077881 1-1/4 (32) 4.50 (114) 5.00 (127) 1.62 (41) 3.00 (76)
085448 1-1/4 (32) 4.50 (114) 5.63 (143) 1.50 (38) 3.00 (76)
099727 1-1/2 (38) 6.50 (165) 7.56 (192) 2.50 (64) 4.19 (106)
077882 2 (51)
6.00 (152) 6.87 (175) 2.50 (64) 4.25 (107)
089874 2 (51)
6.50 (165) 7.06 (179) 2.50 (64) 4.25 (107)
