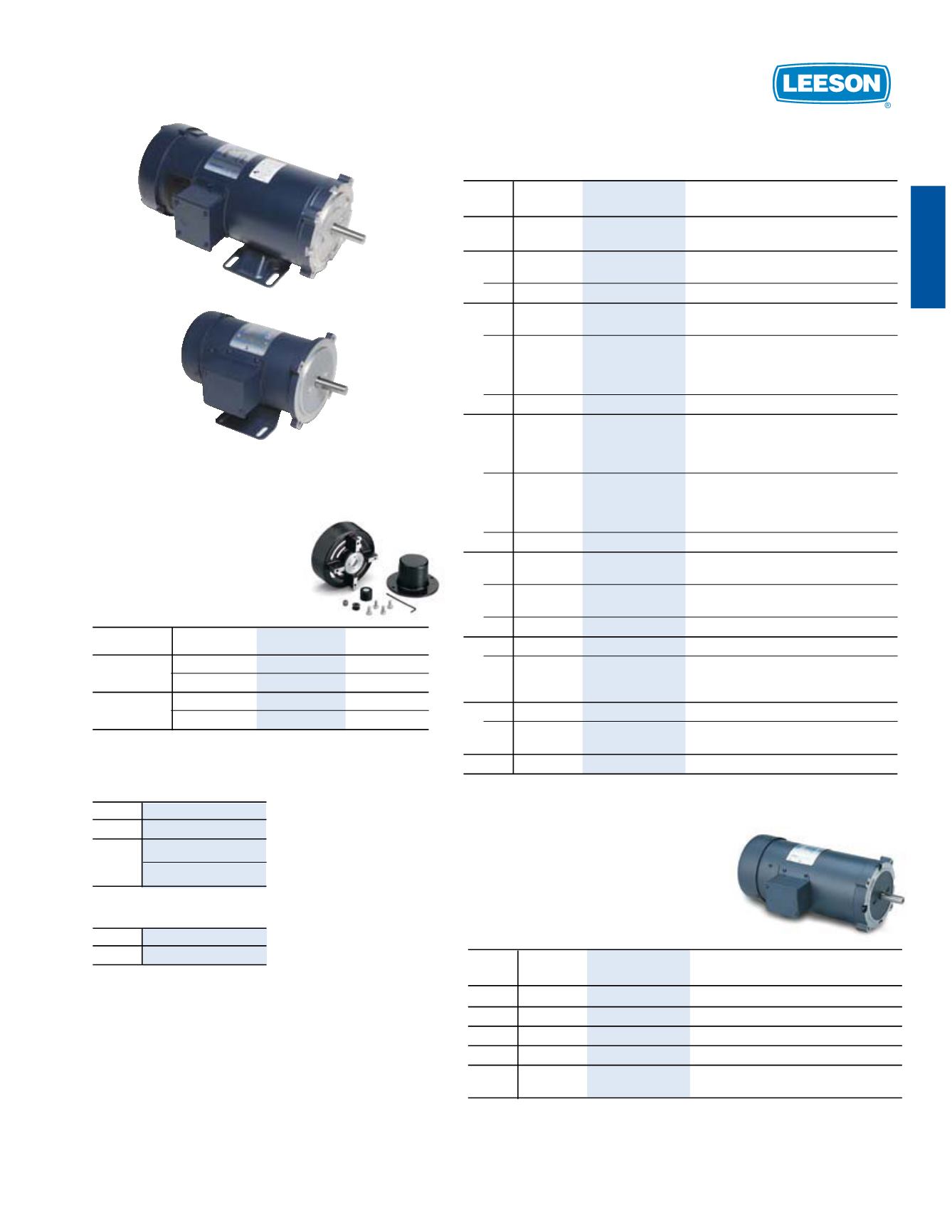

DC Motors
$# -/4/23
.%-! &2!-% s 3#2 2!4%$
A )F BASE IS REMOVED DO NOT REINSTALL BOLTS WITHOUT USING WASHERS TO COMPENSATE
for thickness of base.
NEMA 145TC face mounting with removable NEMA 182T rigid base.
n NEMA 145TC frame shaft 7 /8” x 21/4” and NEMA 56 removable base.
q SS56C motors have a 4.88 inch diameter frame.
S56C motors have a 5.61 inch diameter frame.
4%&# s 3#2 2!4%$ 6/,43
.%-! # s # &!#% 7)4( 2%-/6!",% "!3%A
Full App. Arm. Control F.L. “C”
Load NEMA Catalogue Wgt. Volts Volts AC Amps Dim.
HP RPM Frame .UMBER LBS $# )NPUT $# )NCHES
1/4 1800 SS56C 098002 19 90 115 2.5 10.81
1800 SS56C 098003 22 180 230 1.4 11.31
1/3 1800 SS56C 098004 23 90 115 3.5 11.31
1800 SS56C 098005 23 180 230 1.7 11.31
1200 S56C 109098 32 90 115 3.5 12.81
1/2 2500 SS56C 098006 22 90 115 5.0 10.81
2500 SS56C 098007 22 180 230 2.5 10.81
1800 SS56C 098000 26 90 115 5.0 11.81
1800 S56C 108014 29 90 115 5.0 12.82
1800 SS56C 098008 25 180 230 2.5 11.81
1800 S56C 108015 30 180 230 2.5 12.82
1200 S56C 109099 40 90 115 5.0 14.32
3/4 2500 SS56C 098009 26 90 115 7.6 11.81
2500 S56C 108016 29 90 115 7.6 12.82
2500 SS56C 098010 25 180 230 3.8 11.81
2500 S56C 108017 29 180 230 3.8 12.82
1800 SS56C 098032 36 90 115 7.6 13.81
1800 S56C 108018 38 90 115 7.6 13.82
1800 SS56C 098069 36 180 230 3.8 13.81
1800 S56C 108019 35 180 230 3.8 13.82
1200 S56C 109100 49 90 115 7.5 15.82
1 2500 S56C 108020 34 90 115 10.0 13.32
2500 S56C 108021 38 180 230 5.0 13.82
1800 S56C 108022 47 90 115 10.0 14.82
1800 S56C 108023 39 180 230 5.0 14.81
1200 145TC 128023 82 90 115 11.0 18.84
11⁄ 2 2500 S56C 108265 43 180 230 7.5 15.32
1800 S56C 108092 53 180 230 7.6 16.82
1800 S56/145TC 108262 n 54 180 230 7.6 17.39
1800 145TC 128000 70 180 230 7.5 18.34
2 2500 S56/145TC 108266 n 51 180 230 8.6 17.89
1800 145TC 128010 83 180 230 9.5 19.34
1800 182/145TC 128001 84 180 230 9.5 19.34
3 1800 182/145TC 108502 88 180 230 14.0 21.75 -/$)&)#!4)/. +)43
Motors with S56C or SS56C frame sizes may be
converted to 42/48 C face using the following:
Frame Catalogue No.
SS56C 175182.00
S56C 175082.00P
175802.00 P✖
DC motors in NEMA S56C frame may be
converted to 48 base using the following:
Frame Catalogue No.
S56C 175080.00 P
P !DDITION OF BASE KIT WILL RESULT IN NON .%-! "! DIMENSION OF 3/4”. Addition
of C face kit will result in conduit box located at 1 o’clock facing lead end.
✖ For endshield mounted brush cover motors
4%&# s 3#2 2!4%$ 6/,43
.%-! # s # &!#% ,%33 "!3%
Full App. Arm. Control F.L. “C”
Load NEMA Catalogue Wgt. Volts Volts AC Amps Dim.
HP RPM Frame .UMBER LBS $# )NPUT $# )NCHES
1/4 1800 SS56C 098377 19 90 115 2.5 10.81
1/3 1800 SS56C 098378 23 90 115 3.5 11.31
1/2 1800 SS56C 098379 29 90 115 5.0 11.81
3/4 1800 SS56C 098380 38 90 115 7.6 13.81
1 1800 S56C 109096 47 90 115 10.0 14.82
1800 S56C 109097 39 180 230 5.0 14.82
* No tapped holes provided for attaching a bolt-on base.
4!#(/-%4%2 -/5.4).'
+)43 &/2 $# -/4/23
All necessary parts to mount listed
tachometers to stock TEFC SCR motors.
Consists of machined cast fan cover,
coupling and hardware. Does not include
tachometer. Tach adapter kit is not
suitable for catalog number 108502.
4ACHOMETER .%-! )%# #ATALOGUE !PP
Type Frame Frame Number Wt.(lbs.)
GE 5PY Series SS56 71 175156.00 5
56/145 — 175158.00 5
Servo-tek SS56 71 175157.00 8
SA740 Series 56/145 — 175159.00 8
