AC Motors
AC METRIC (IEC) MOTORS
THREE PHASE
These high efficiency motors meet North American performance standards and
EPACT energy efficiency mandates, and have 1.15 service factors.
Typically used for replacement on machine tools, textile machinery and other
equipment with metric dimensions but requiring the heavy-duty torque and
performance of motors designed for use in North America.
Two frame constructions are offered:
Aluminum frame
models are designated with a 192000 series catalog
number, while
cast iron frame
models are 193000 series.
"OTH TYPES ARE BUILT TO MEET INTERNATIONAL STANDARDS
AND FEATURE )0 WEATHERPROOF ENCLOSURES
(Z INTERCHANGEABILITY (Z
6 (Z
200/400V), dual stamped nameplates, CE mark,
AND & CONDUIT BOX LOCATION +ITS ARE AVAILABLE FOR
FIELD CONVERSION FROM " TO " " OR " "
!# -%42)# -/4/23

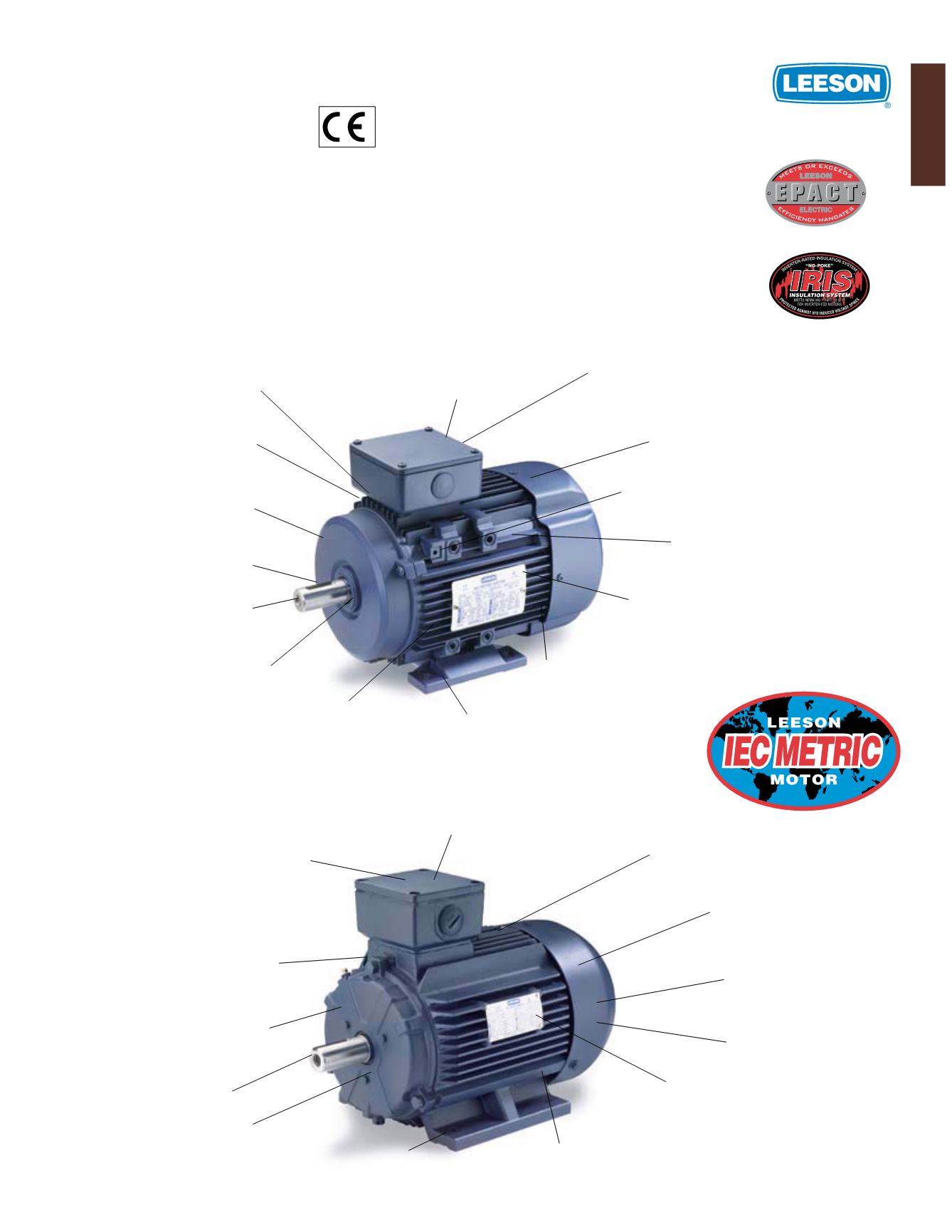

ALUMINUM FRAME
CAST IRON FRAME
IP55 weatherproof enclosure
allows for use in a wide range
of applications.
Drain Hole
locations in four
quadrants can be drilled-out for
multi-position condensate drainage.
Class F insulation system
with
#LASS " TEMPERATURE RISE OR LOWER
Class F insulation system
with
#LASS " TEMPERATURE RISE OR LOWER
Heavy-duty cast iron
construction includes frame,
endbells and conduit box.
Special design steel fan cover
and low-noise fan maximize
airflow efficiency.
Multi-mount repositionable feet
allow for
three conduit box positions (F2, F1, F3).
High efficiency design
utilizes
low-loss steel laminations for
optimum power and performance.
High efficiency design
utilizes
low-loss steel laminations for
optimum power and performance.
Steel fan cover.
Non-sparking fan.
Small
size reduces noise and
enhances efficiency.
Stainless steel “full fact” nameplate
with
information on motor efficiency and power
factor. Stamped with 60 Hz and 50 Hz data
Aluminum “full fact” nameplate
with
information on motor efficiency and power
factor. Stamped with 60 Hz and 50 Hz data.
Conduit box
with neoprene gaskets. Reposition
metric “PG” tapped lead exit hole by rotating box
in 90 degree increments. Move box to F1 or F2
position by relocating motor feet.
Conduit box
with neoprene gaskets. Reposition
metric “PG” threaded lead exit by rotating box
in 90 degree increments. Motors 132 frame and
larger have second lead exit hole for auxiliary
BOX "OX IS FIXED AT & LOCATION
External grounding
provision.
Oil seals
on both the drive
end and non drive end.
Drilled and tapped shaft.
“Captive Shaft” keyway.
D flange (B5) and C face
(B14)
models available. Field
conversion kits also offered.
Drilled and tapped shaft.
Oil seals
on both the drive
end and non drive end.
Cast iron mounting feet
are precision machined for
accurate alignment.
D flange (B5) and C face
(B14)
models available. Field
conversion kits also offered.
Removable feet.
Terminal Boards
included.
s
6 MOTORS HAVE LEADS
s
6 MOTORS HAVE LEADS
s !LL TERMINAL BOARDS HAVE POSTS
C
ONFORMITE
E
UROPEENE
IP55 weatherproof enclosure
allows for use in a wide range
of applications.
LEESON’s Inverter Rated Insulation System,
(IRIS™)
provides superior protection against
voltage spikes induced by variable frequency
drives.
CSA: File number LR33543
5, &ILE NUMBER % FOR MOTORS
produced January 2004 and later
CSA: File number LR62104
5, &ILE NUMBER % FOR MOTORS
produced June 2003 and later
Terminal Boards
included.
s
6 MOTORS
FRAME AND LARGER
have 12 leads and 9 post terminal boards.
s
6 MOTORS SMALLER THAN FRAME
have 9 leads and 6 post terminal boards.
s
6 MOTORS HAVE LEADS AND POST
terminal boards.
