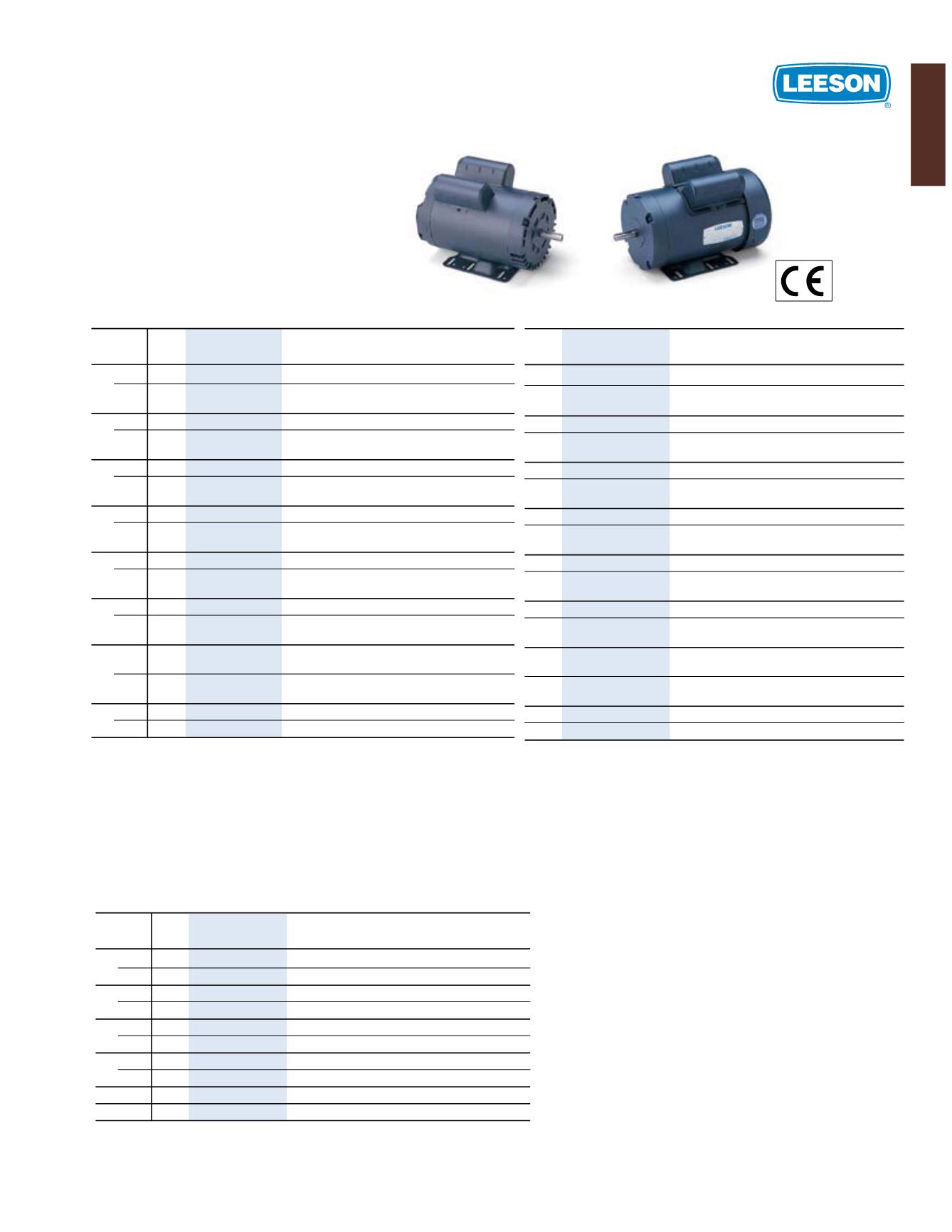

Butt’s Pumps and Motors - page 493

87
Specifications are subject to change without notice
AC Motors
- Ê* - ÊUÊ , *‡*,"" ÊUÊ, - /Ê - ÊUÊ *ÓÓ1
RPM App. Over- F.L. “C”
50 NEMA Catalogue Wgt. load Amps Dim.
HP Hz Frame Number (lbs.) Voltage Prot. 220V (in.)
1/3 3000 56 114222 24 110/220 None 3.2 10.82
1500 56 114223 24 110/220 None 3.2 10.81
1/2 3000 56 114224 26 110/220 None 3.8 11.32
1500 56 114225 27 110/220 None 4.1 11.31
3/4 3000 56 114226 28 110/220 None 5.6 11.32
1500 56 114227 31 110/220 None 5.9 11.81
1 3000 56 114228 31 110/220 None 6.6 11.82
1500 56 114229 35 110/220 None 6.4 12.31
11⁄2 1500 56H 114231 ) 42 110/220 None 8.4 13.32
2 1500 56H 114233 † 49 220 None 9.6 13.82
- Ê* - ÊUÊ/ ÊUÊ, Ê - ÊUÊ *x{1
App. Over- F.L. “C”
NEMA Catalogue Wgt. load Amps Dim.
Frame Number (lbs.) Voltage Prot. 220V (in.)
56 113916 25 110/220 None 3.2 10.81
56 110423 24 110/220 None 3.2 10.81
56 113908 26 110/220 Man. 3.2 10.81
56 113917 27 110/220 None 3.8 11.31
56 110064 25 110/220 None 4.1 11.31
56 113909 29 110/220 Man. 4.1 11.31
56 113918 29 110/220 None 5.6 11.31
56 110065 † 32 110/220 None 5.9 11.81
56 113910 32 110/220 Man. 5.9 11.81
56 113919 32 110/220 None 6.6 11.81
56H 110066 : 38 110/220 None 6.4 12.81
56 113911 † 34 110/220 Man. 6.4 12.31
56H 113920 44 110/220 None 8.0 13.31
56H 110424 †): 47 110/220 None 8.6 13.31
56H 113929 †) 49 110/220 Man. 8.6 13.31
56HZ 113928 †N 44 110/220 None 10.7 13.76
182T 131556 † 95 220 None 11.2 15.96
182T 131600 † 71 220 Man. 12.0 14.96
145T 121070 †) 50 220 None 12.4 12.84
56H 113936 †) 48 220 None 12.4 13.81
184T 131557 † 98 220 None 15.9 16.96
184T 131601 † 98 220 Man. 15.9 16.96
184T 131638 †) 98 220 None 20.5 17.46
184T 131578 †) 103 220 None 21.0 17.46
These motors have NEMA Service Factors. See page 119 for details.
- Ê* - ÊUÊ , *‡*,"" ÊUÊ, Ê - ÊUÊ *ÓÓ1
RPM App. Over- F.L. “C”
50 NEMA Catalogue Wgt. load Amps Dim.
HP Hz Frame Number (lbs.) Voltage Prot. 220V (in.)
1/3 3000 … … … … … … …
1500 56 110394 22 110/220 None 3.5 9.88
1500 … … … … … … …
1/2 3000 56 113901 25 110/220 None 3.8 10.34
1500 56 110395 25 110/220 None 4.4 10.38
1500 … … … … … … …
3/4 3000 56 113902 27 110/220 None 5.6 10.34
1500 56 110396 30 110/220 None 5.9 10.88
1500 … … … … … … …
1 3000 56 113903 31 110/220 None 6.6 11.84
1500 56H 110397: 35 110/220 None 6.4 11.88
1500 … … … … … … …
11⁄ 2 3000 56H 113904 37 110/220 None 8.6 11.84
1500 56H 110398): 43 110/220 None 8.4 12.35
1500 … … … … … … …
2 3000 56H 113905 42 110/220 None 10.7 12.34
1500 182T 131553† 70 220 None 11.8 13.69
1500 … … … … … … …
3 3000 56H 113937† 47 220 None 12.4 12.84
3000 … … … … … … …
1500 184T 131554† 80 220 None 16.8 14.69
1500 … … … … … … …
5 3000 … … … … … … …
1500 184T 131555†) 95 220 None 23.2 15.69
xäÊ ,/<Ê "/",-
SINGLE PHASE
8 Combination 56HZ base has mounting holes for NEMA 56 and 143-5T and a standard
NEMA 145T frame shaft of 7/8” diameter.
: Combination 56H base motors have mounting holes for NEMA 56 and NEMA 143-5T
and a standard NEMA 56 shaft.
) Capacitor start/capacitor run design for reduced amperage, others are capacitor start/
induction run.
† Class F insulated.
1 "Y WAY OF COMPARISON )0 RELATES TO /PEN $RIP 0ROOF AND )0 TO 4%&#
xäÊ <ÊUÊ- Ê* -
General Specifications:
50 Hz single phase designs produce full rated HP on 50 Hz
power supply. Designed for general purpose application.
Electrical Features:
High efficiency energy saving designs. Centrifugal switch
specifically designed for 50 Hz service. Conduit box with leads.
Torque at rated HP on 50 Hz power supply is 20% greater than
the running torque of a 60 Hz motor.
C ONFORMITE
EUROPEENE
