Convertible
PJC

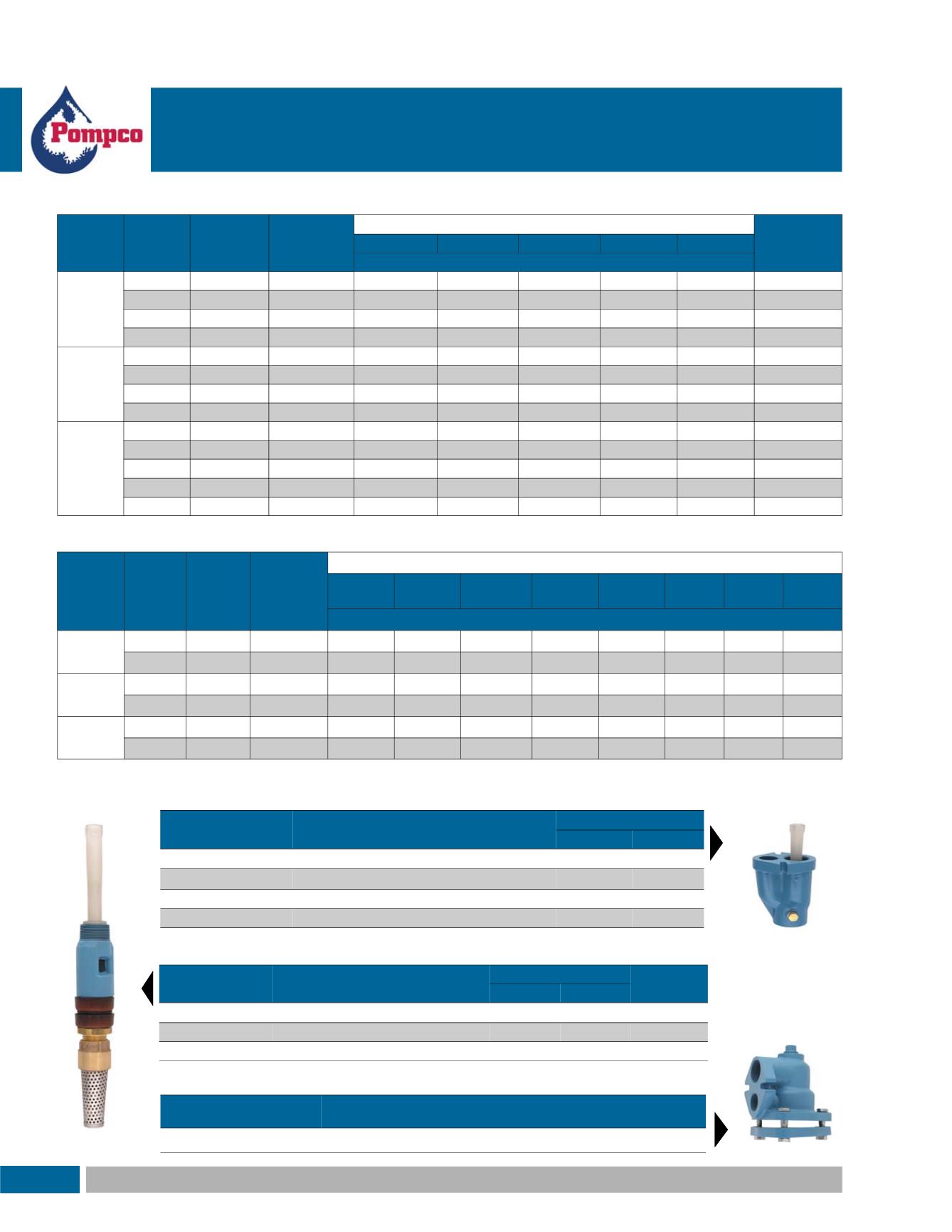

PERFORMANCE CHART - SHALLOW WELL APPLICATION
DEEP WELL EJECTOR KITS
(included: ejector body, venturi tube and nozzle)
2" SINGLE PIPE JET PACKAGE
2" CASING ADAPTER
PERFORMANCE CHART - DEEP WELL APPLICATION
MODEL
MOTOR
H.P.
(kW)
VENTURI &
NOZZLE
DEPTH OF WATER IN FEET (METERS)
Shut-off
PSI (kPa)
5 (1.52)
10 (3.05)
15 (4.57)
20 (6.10)
25 (7.62)
CAPACITY - U.S. GALLONS/HOUR (LITERS/HOUR)
PJC-50
1/2 (.37)
296
20 (1.41)
910 (3445)
810 (3066)
690 (2612) 565 (2139) 410 (1552)
62 (427)
1/2 (.37)
296
30 (2.11)
900 (3407)
800 (3028)
685 (2593) 560 (2120) 405 (1533)
62 (427)
1/2 (.37)
296
40 (2.81)
710 (2688)
625 (2366)
605 (2290) 500 (1892) 345 (1306)
62 (427)
1/2 (.37)
296
50 (3.52)
460 (1741)
400 (1514)
330 (1249)
210 (795)
115 (435)
62 (427)
PJC-75
3/4 (.55)
326
20 (1.41)
1050 (3975) 945 (3577)
830 (3142) 690 (2612) 520 (1968)
61(420)
3/4 (.55)
326
30 (2.11)
1040 (3937) 935 (3539)
825 (3123) 685 (2593) 515 (1949)
61(420)
3/4 (.55)
326
40 (2.81)
830 (3142)
790 (2990)
740 (2801) 620 (2347) 465 (1760)
61(420)
3/4 (.55)
326
50 (3.52)
520 (1968)
480 (1817)
400 (1514) 360 (1363) 180 (681)
61(420)
PJC-100
1(.75)
346
20 (1.41)
1150 (4353) 1035 (3918) 900 (3407) 750 (2839) 560 (2120)
67 (462)
1(.75)
346
30 (2.11)
1140 (4315) 1025 (3880) 895 (3388) 740 (2801) 555 (2101)
67 (462)
1(.75)
346
40 (2.81)
1130 (4278) 1020 (3861) 890 (3369) 735 (2782) 550 (2082)
67 (462)
1(.75)
346
50 (3.52)
815 (3085)
735 (2782)
610 (2309) 475 (1798) 245 (927)
67 (462)
1(.75)
346
60 (4.22)
410 (1552)
370 (1401)
310 (1173)
240 (908)
120 (454)
67 (462)
DISCHARGE
PRESSURE
P.S.I. (kPa)
MODEL
MOTOR
H.P.
(kW)
VENTURI
&
NOZZLE
DISCHARGE
PRESSURE
P.S.I. (kPa)
DEPTH OF WATER IN FEET (METERS)
30
(9.14)
40
(12.2)
50
(15.2)
60
(18.3)
70
(21.3)
80
(24.4)
90
(27.4) 100 (30.5)
CAPACITY - U.S. GALLONS/HOUR (LITERS/HOUR)
PJC-50
1/2 (.37)
245
20 / 40
580 (2192)
510 (1928)
450 (1701)
20 / 40
380 (1436)
320 (1210)
270 (1021)
220 (832)
PJC-75
3/4 (.55)
234
20 / 40
640 (2419)
580 (2192)
510 (1928)
450 (1701)
20 / 40
430 (1625)
360 (1360)
320 (1210)
290 (1096)
260 (983)
PJC-100
1 (.75)
234
20 / 40
760 (2873)
710 (2684)
630 (2381)
510 (1928)
390 (1474)
20 / 40
470 (1777)
440 (1663)
420 (1588)
380 (1436)
260 (983)
220 (832)
150 (567)
235
226
226
1/2 (.37)
3/4 (.55)
1 (.75)
Part
number
Model
Diameter
Venturi
Nozzle
513-0200
AJ37 FP 235
23/64
15/64
513-0210
AJ37 FP 226
22/64
16/64
513-0230
AJ37 FP 245
24/64
15/64
513-0250
AJ37 FP 234
23/64
14/64
Part
number
Model
Diameter
Setting
range
Venturi
Nozzle
513-0310
SP235
23/64
15/64
30-70'
513-0320
SP226
22/64
16/64
40-80'
513-0330
SP225
22/64
15/64
50-100'
Partnumber
Model
513-0300
2" casing adapter
