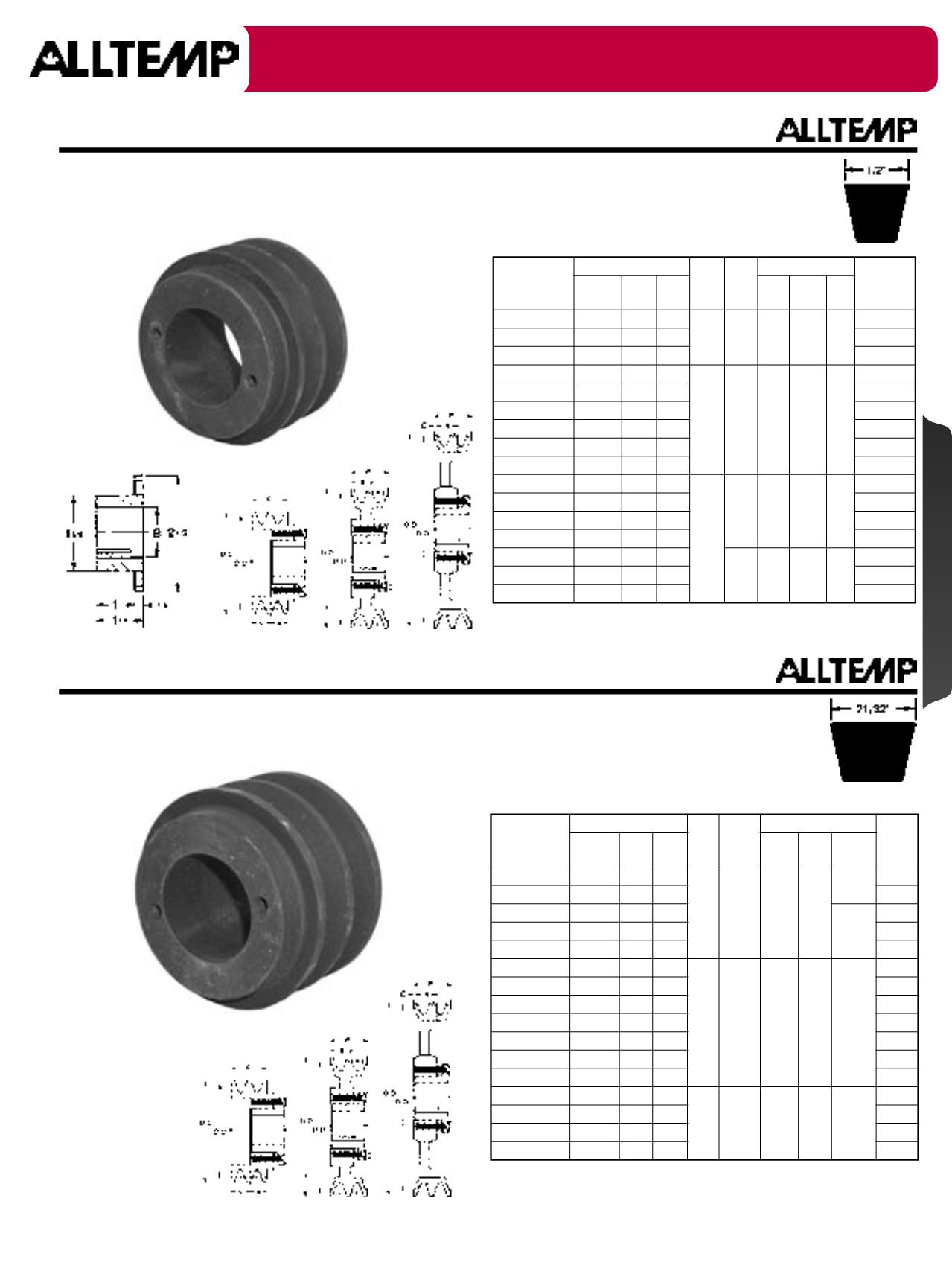

Two Groove Sheaves - Type 67-2AKH
Two Groove Sheaves - Type 67-2BKH
Stock "QH" Bushings
Type 67-2AKH Two Groove Sheaves
Part #
Diameters
Type Bush
Dimensions
Stock
QH
Bores
Outside DD
"A"
Pitch
"3L"
F X C
67-2AK30H
3.05 2.80 2.46
1 QH 1 3/8 15/32 3/16
3/8"
67-2AK32H
3.25 3.00 2.66
7/16
67-2AK34H
3.45 3.20 2.86
1/2
67-2AK39H
3.75 3.50 3.16
2 QH 1 3/8 15/32 1/2
9/16
67-2AK41H
3.95 3.70 3.36
5/8
67-2AK44H
4.25 4.00 3.66
11/16
67-2AK46H
4.45 4.20 3.86
3/4
67-2AK49H
4.75 4.50 4.16
13/16
67-2AK51H
4.95 4.70 4.36
7/8
67-2AK54H
5.25 5.00 4.66
3
QH 1 3/8 15/32 1/2
15/16
67-2AK56H
5.45 5.20 4.86
–
67-2AK59H
5.75 5.50 5.16
1
67-2AK61H
5.95 5.70 5.36
1 1/8
67-2AK64H
6.25 6.00 5.66
QH 1 3/8 11/32 1/8
1 3/16
67-2AK74H
7.25 7.00 6.66
1 1/4
67-2AK84H
8.25 8.00 7.66
1 3/8
Type 67-2BKH Two Groove Sheaves
Part #
Diameters
Type Bush
Dimensions
Stock
QH
Bores
Outside DD
"A"
Pitch
"3L"
F X C
67-2BK32H
3.35 2.60 3.00
1 QH 1 3/4 7/8
1 5/16
3/8"
67-2BK34H
3.55 2.80 3.20
7/16
67-2BK36H
3.75 3.00 3.40
7/8
1/2
67-2BK40H
3.95 3.20 3.60
9/16
67-2BK45H
4.25 3.50 3.90
5/8
67-2BK47H
4.45 3.70 4.10
2 QH 1 3/4 7/8 7/8
11/16
67-2BK50H
4.75 4.00 4.40
3/4
67-2BK52H
4.95 4.20 4.60
13/16
67-2BK55H
5.25 4.50 4.90
7/8
67-2BK57H
5.45 4.70 5.10
15/16
67-2BK60H
5.75 5.00 5.40
–
67-2BK62H
5.95 5.20 5.60
1
67-2BK65H
6.25 5.50 5.90
3 QH 1 3/4 7/8 1/4
1 1/8
67-2BK67H
6.45 5.70 6.10
1 3/16
67-2BK70H
6.75 6.00 6.40
1 1/4
67-2BK80H
7.75 7.00 7.40
1 3/8
Type 67-2BKH
• Two groove sheaves - combination groove for
"4L" or "A" belts and "5L" or "B" belts.
Type 67-2AKH
• Two groove sheaves For "4L" Or "A" belts.
• "3L" belts may be used with these
sheaves as indicated in table below.
Type 1
Type 3
Type 2
Type 2
Type 3
Type 1
67-2AK32H
Illustrated
67-2BK32H
Illustrated
