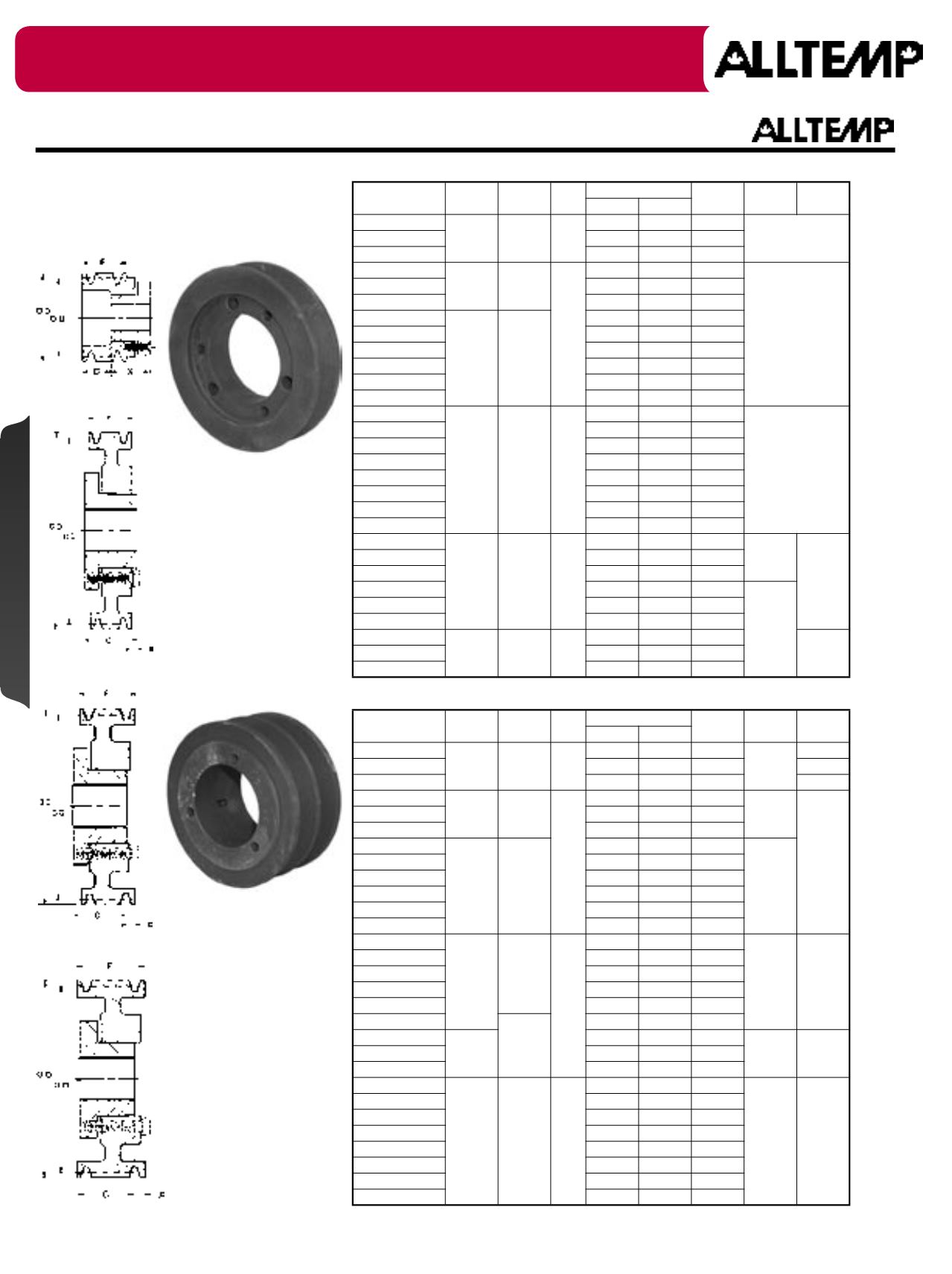

1 & 2 Groove Cast Iron Sheaves
Type 2
Type 3
Type 1
Type 4
1 Grooves
,F = 7/8" (67-1B34SH to 67-1B70SDS); F = 1" (67-1B74SDS to 67-1B184SK)
Part #
Bushing Bore
Range Type
D.D.
O.D.
X
C
"B" Belts "A" Belts
67-1B34SH
SH
1/2" to 1
11/16"
1
3.4
3.0
3.75
0.071"
0.165"
67-1B36SH
3.6
3.2
3.95
67-1B38SH
3.8
3.4
4.15
67-1B40SH
SH
1/2" to 1
11/16"
2
4.0
3.6
4.35
0.062"
0.255"
67-1B42SH
4.2
3.8
4.55
67-1B44SH
4.4
4.0
4.75
67-1B46SDS
SDS 5/8" to 2"
4.6
4.2
4.95
67-1B48SDS
4.8
4.4
5.15
67-1B50SDS
5.0
4.6
5.35
67-1B52SDS
5.2
4.8
5.55
67-1B54SDS
5.4
5.0
5.75
67-1B56SDS
5.6
5.2
5.95
67-1B58SDS
SDS 5/8" to 2"
3
5.8
5.4
6.15
0.062"
0.255"
67-1B60SDS
6.0
5.6
6.35
67-1B62SDS
6.2
5.8
6.55
67-1B64SDS
6.4
6.0
6.75
67-1B66SDS
6.6
6.2
6.95
67-1B68SDS
6.8
6.4
7.15
67-1B70SDS
7.0
6.6
7.35
67-1B74SDS
7.4
7.0
7.75
67-1B80SDS
SDS 5/8" to 2"
4
8.0
7.6
8.35
3/4"
0.069"
67-1B86SDS
8.6
8.2
8.95
67-1B94SDS
9.4
9.0
9.75
67-1B110SDS
11.0
10.6 11.35
7/8"
67-1B124SDS
12.4
12.0 12.75
67-1B136SDS
13.6
13.2 13.95
67-1B154SK
SK
5/8" to 2
1/2"
15.4
15.4
15.0 15.75
0.134"
67-1B160SK
16.0
15.6 16.35
67-1B184SK
18.4
18.0 18.75
2 Grooves
, F = 1 3/4"
Part #
Bushing Bore
Range Type
D.D.
O.D.
X
C
"B" Belts "A" Belts
67-2B34SH
SH
1/2" to 1
11/16"
1
3.4
3.0
3.75
13/16"
15/16"
67-2B36SH
3.6
3.2
3.95
1 1/4"
67-2B38SH
3.8
3.4
4.15
0.631"
67-2B40SH
SH
1/2" to 1
11/16"
2
4.0
3.6
4.35
13/16"
0.631"
67-2B42SH
4.2
3.8
4.55
67-2B44SH
4.4
4.0
4.75
67-2B46SDS
SDS 5/8" to 2"
4.6
4.2
4.95
3/4"
67-2B48SDS
4.8
4.4
5.15
67-2B50SDS
5.0
4.6
5.35
67-2B52SDS
5.2
4.8
5.55
67-2B54SDS
5.4
5.0
5.75
67-2B56SDS
5.6
5.2
5.95
67-2B58SDS
SDS
5/8" to 2"
3
5.8
5.4
6.15
3/4"
0.631"
67-2B60SDS
6.0
5.6
6.35
67-2B62SDS
6.2
5.8
6.55
67-2B64SDS
6.4
6.0
6.75
67-2B66SDS
6.6
6.2
6.95
67-2B68SDS
5/8" to 2
1/2"
6.8
6.4
7.15
67-2B70SK
SK
7.0
6.6
7.35
1 1/4"
0.446"
67-2B74SK
7.4
7.0
7.75
67-2B80SK
8.0
7.6
8.35
67-2B86SK
SK
5/8" to 2
1/2"
4
8.6
8.2
8.95
1 1/4"
0.446"
67-2B94SK
9.4
9.0
9.75
67-2B110SK
11.0
10.6 11.35
67-2B124SK
12.4
12.0 12.75
67-2B136SK
13.6
13.2 13.95
67-2B154SK
15.4
15.0 15.75
67-2B160SK
16.0
15.6 16.35
67-2B184SK
18.4
18.0 18.75
1 & 2 Groove Cast Iron Sheaves
• "A" and "B" combination 1 to 4
groove Cast iron sheaves.
• For "QD" style taper bushings.
67-1B34SH
Illustrated
67-2B34SH
Illustrated
