156
Electrical
Low Voltage "Intrinsically Safe"
Features snap action micro switch with
"gold plated" contacts to meet low contact
resistance requirements of intrinsically
safe circuits.
Part # Volts Amps Description
29-FS1G-20
120 1 Pump Down 20'.
29-FS2G-20
120 1 Pump Up 20'.
Other lead specifications, lengths and 230 volt models
available upon request.

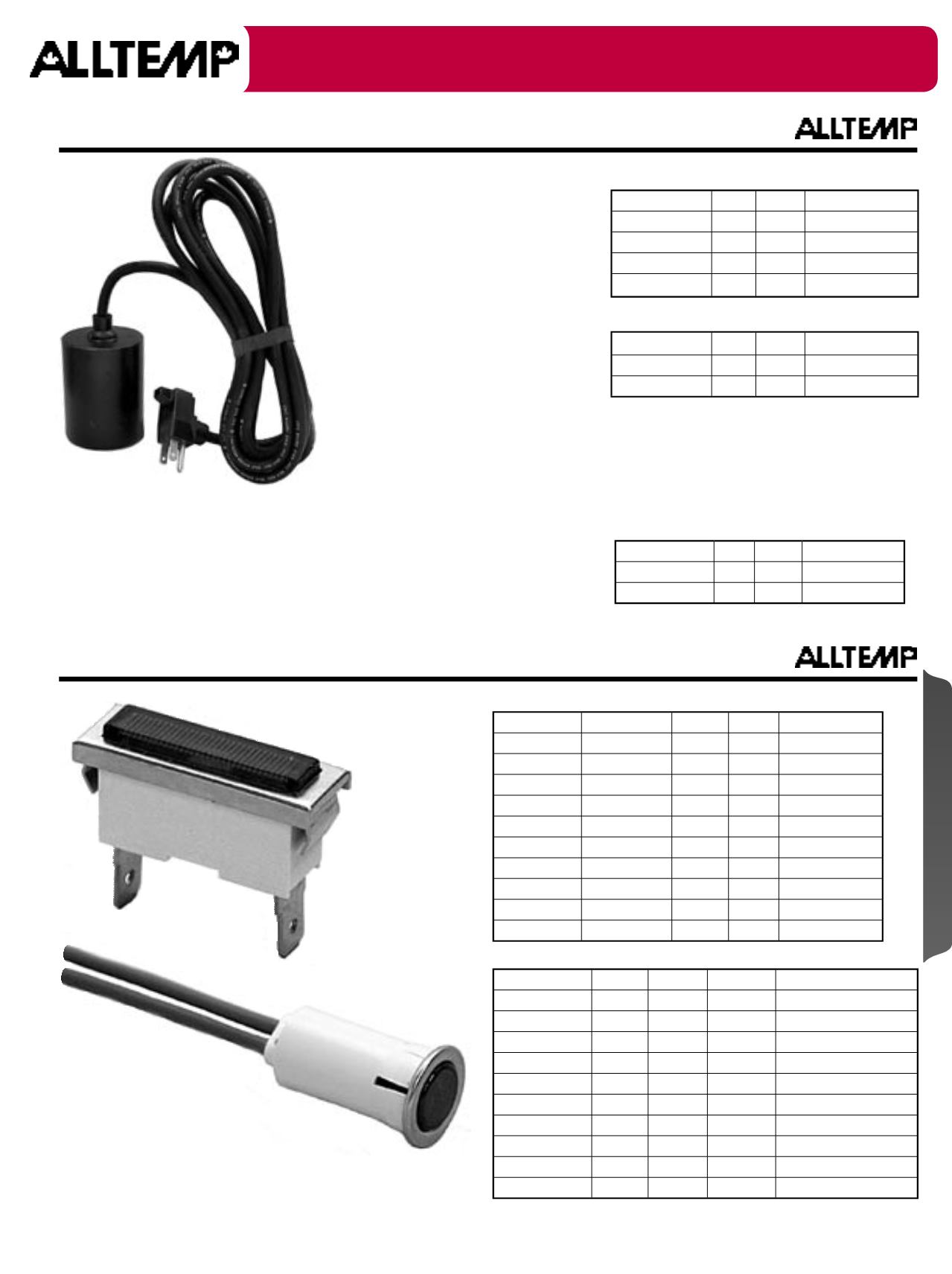

Mechanical Float Switches
Applications
• Sewage Lift Pumps
• Sump Pumps
• Alarm Systems
• Solenoid or relay
controlled packages and
other liquid level control
applications.
Features
Environmentally Safe
• Mercury Free.
Power Cord
• 10' SJOW 16 ga. 2 conductor with
grounded molded piggyback plug.
Swivel strap included!
Corrosion Resistant
• Housing molded from durable ABS material.
Reliable
• Compact float and proven mechanical
switch quality.
Variable Pumping Range
• Tether length determines pumping range
Switch Position
• OMNI Directional (not affected by
rotation. Designed to accommodate
normally off, normally on or both
positions.
Selection
•
FS1 Series - pump down. (sump
pump, etc.)
• FS2 Series - pump up. (water trough,
etc.)
Approvals
• UL Listed & Recognized.
• CSA Approved.
29-FS1-10
Illustrated
29-152-2
Illustrated
Rectangular
Part #
Colour
Volts Lens
Leads
29-155-1
Red
125 Flush 1⁄4" Spade
29-155-2
Red
250 Flush 1⁄4" Spade
29-155-3
Green
125 Flush 1⁄4" Spade
29-155-4
Green
250 Flush 1⁄4" Spade
29-155-5
White
125 Raised 9" Leads
29-156-1
Amber
125 Flush 1⁄4" Spade
29-157-1
White
125 Flush 1⁄4" Spade
29-157-3
White
250 Flush 9" × 1⁄4" Fe Tabs
29-157-10
Amber & Red 125 Flush (4) 1⁄4" Spade
29-158
Red
125 Flush 1⁄4" Spade
Round
Part #
Colour Volt
Lens
Leads
29-152
Red 125 Raised
9"
29-152-1
Red 125 Flush
9"
29-152-2
Red 250 Flush
9"
29-152-3
*
Red 125 Flush
3/16" tabs
29-152-4
*
Red 125 Raised
9" tabs
29-152-10
Red
24
Flush 12" × 1⁄4" female tabs
29-152-11
*
Red 250 Flush 6" × 1⁄4" female tabs
29-152-22
Red 250 Raised
9" high temp
29-152-6
White 250 Raised 12" × 1⁄4" female tabs
29-153-10
*
Red
24
Flush
12"
* 5/16" Diameter Body
29-155-1
illustrated
Pilot Lights
Pump Down Switches
Part #
Volts Amps Description
29-FS1-10
120 15 Pump Down 10'.
29-FS1-20
120 15 Pump Down 20'.
29-FS1-30
120 15 Pump Down 30'.
29-FS1-20-2
230 15 Pump Down 20'
Pump Up Switches
Part #
Volts Amps Description
29-FS2-10
120 15 Pump Up 10'.
29-FS2-20
120 15 Pump Up 20'.
Other lead specifications, lengths and 230 volt models
available upon request.
Switches & Lights
