Air Conditioner Electrical Disconnect Switches
Metallic-Non Fusible A/C Disconnects
Lift-Up Door (Switch & Pull-Out)
• Straight-in, straight-out wiring saves time & money.
• Lift-up removable door for easy wiring access.
• 12.7 × 18.4 × 6.9cm (5.0" × 7.25" × 2.75")
- compact NEMA 3R enclosure.
• Keyhole mounting slot for easy installation.
• Six (1⁄2" × 3⁄4" × 1") knockouts reduce installation time.
• Heavy zinc coated steel with high quality electro-deposition
paint finish for a maximum, corrosion resistant enclosure.
• Terminals approved for 60°C & 75°C (140°F & 167°F) wire.
• Padlock provisions to prevent unauthorized access.
• UL & cUL approved.
Non Automatic Switch
• On/Off Switch Mechanism...No More Pull-outs to Lose.
Part #
HP Volts Amps Phase AIC Rating Weight
11-U065NA1
10 240 60
1
10,000 4.0 lbs.
Pull-Out (Lift-Up Door)
• Pull-out & pocket! Now that's service security!
Part #
HP Volts Amps Phase AIC Rating Weight
11-U065P
10 240 60
1
10,000 3.0 lbs.

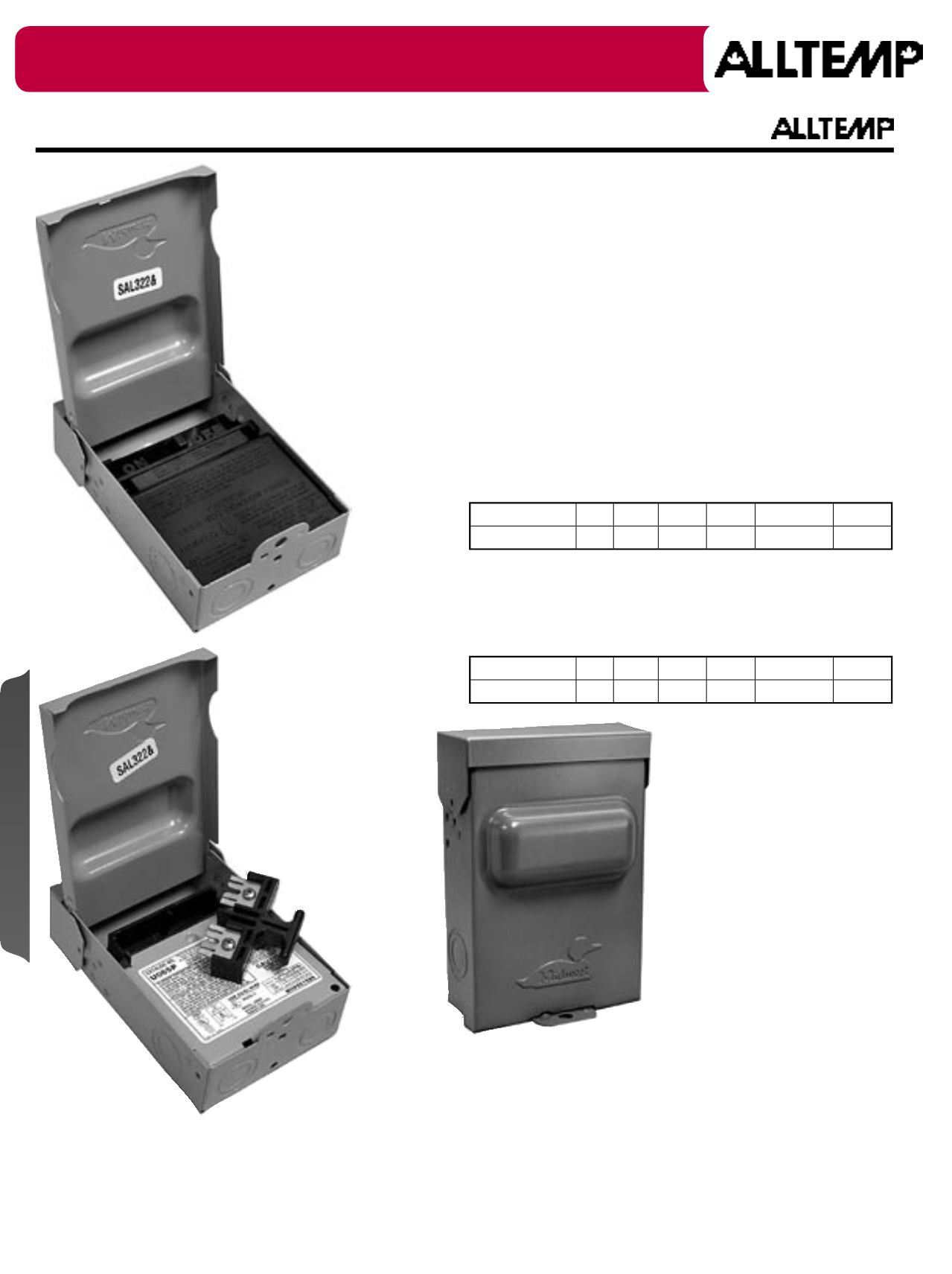

11-U065NA1
Switch
Features
• Easy to install
• Easy wiring access
• Lightweight, compact, heavy-
duty corrosion resistant finish
11-U065P
Pull-Out
11-U065
Series
Wire Range
14 to 8 gauge copper wire - solid
12 to 8 gauge aluminum wire - solid
14 to 3 gauge copper - stranded
14 to 3 gauge aluminum- stranded
