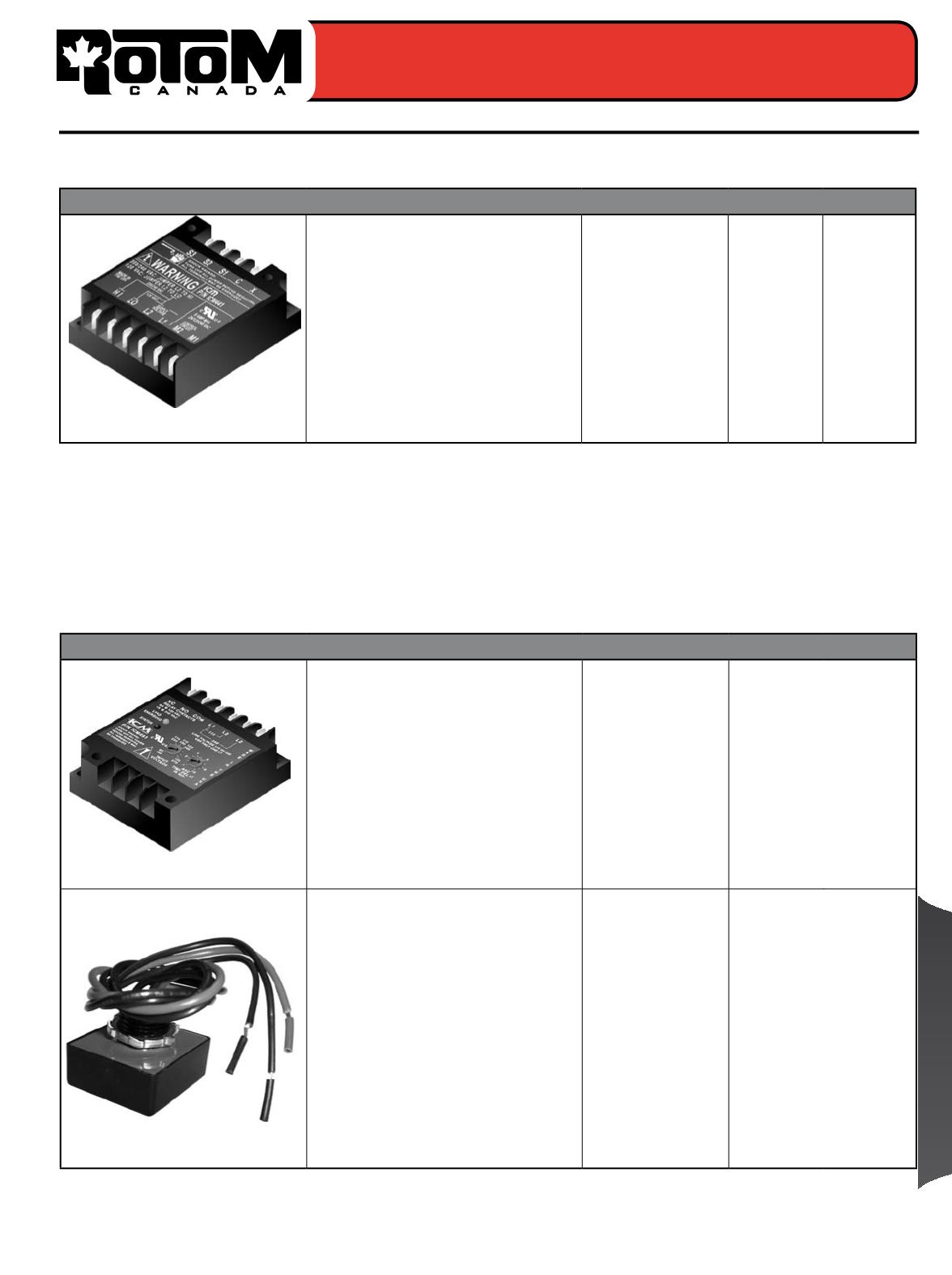

Butt’s Pumps and Motors - page 1626

135
Three Phase Line Voltage Monitors
Part #
Features & Applications
Specifications
Cross Reference
24-ICM441
• Protects Against: under voltage, over tem-
perature, power interruptions, rapid short
cycling, shorted temperature sensor, open
temperature sensor.
• Control Duty, SPST relay layout.
• 6 amp, 277 VAC relay contacts.
• Anti-Short-Cycle Time Delay, 4 minute
(nominal).
• 1 second manual bypass.
• 3.25" × 3" × 1.25".
• Voltage: 120 or
208/230 VAC.
• Frequency: 50/ 60
Hz.
• Output: relay, SPDT
N.O.: 6 amps.
Copeland
• 071-0376-01
• 071-0376-02
• 071-0397-00
• 071-0397-01
• 071-0424-00
• 071-0424-01
• 071-9800-00
• 071-9800-01
Bristol
• 241680
T.I.
• 15AA1600 B
• 15AA1600 C
• 15AA1603 C
• 31AA1606 E
• 31AA1600 E
Mars
• 37304
• 37306
• 37322
• 37300
• 37302
Motor Protection Controls
Single Phase Line Voltage Monitors
Part #
Features & Applications
Specifications
Cross Reference
24-ICM491
• Low cost single phase motor protection.
• Built-in anti-short cycle protection.
• Detects high/ low voltage conditions.
• Helps prevent rapid system recycling.
• LED indicator: "green" for normal condi-
tions, "red" for fault.
• Heavy duty SPDT, isolated relay output.
• Interrogation delay prevents nuisance trips.
• 3.25" × 3" × 1.25".
• Voltage: 95-270 VAC.
• Output: relay, SPDT
N.C./ N.O.: 5 amps.
• Time Delay
Range: adj. 6-600
sec.
Diversified
• CV-100-RS
• CV-200-RS15
• CV-200-RS20
Watsco
• EAC-401
• EAC-402
• EAC-403
• EAC-404
24-ICM515
• Easy Installation.
• Low cost, high performance.
• Weatherproof housing.
• Rugged, reliable.
• Protects against:
- Lightning power surges.
- Voltage surges from air conditioners,
generators or motors.
• 1.75" × 1.62" × 0.75".
• Service Voltage:
120/240V single
phase.
• Maximum Surge
Current: 24000 amps.
• Maximum en-
ergy dissipation: 200
joules.
• Installation point:
- Electrical panel.
- Electrical disconnect.
• AC protection
Modes: line-line, line-
ground.
NA
Solid State Controls
Motor Protection Controls
