140
Part #
Features & Applications
Specifications Cross Reference
24-ICM850
• Increases starting torque up to 500%.
• Ensures precise starts.
• Reduces inventory.
• Not affected by ambient temperature.
• Recycles instantly (less than one second).
• Multi-voltage operation... either 115 or 240 VAC
motors.
• Voltage: 90 to 277 VAC.
• Max input voltage: 390
VAC.
• Range: 1/12 to 10 Hp.
• Recommended range:
1/12 to 1 Hp.
• Oper. Temp. Range:
40°C to +65°C
43 to 52 Mfd 330 V
Capacitor.
N/A
24-ICM860
• Increases starting torque up to 500%.
• Ensures precise starts.
• Reduces inventory.
• Not affected by ambient temperature.
• Recycles instantly (less than one second).
• Multi-voltage operation... either 115 or 240 VAC
motors.
• Voltage: 90 to 277 VAC.
• Max input voltage: 390
VAC.
• Range: 2 to 5 Hp.
• Oper. Temp. Range:
-40°C to +65°C
88 to 106 Mfd 330 V
Capacitor.
N/A

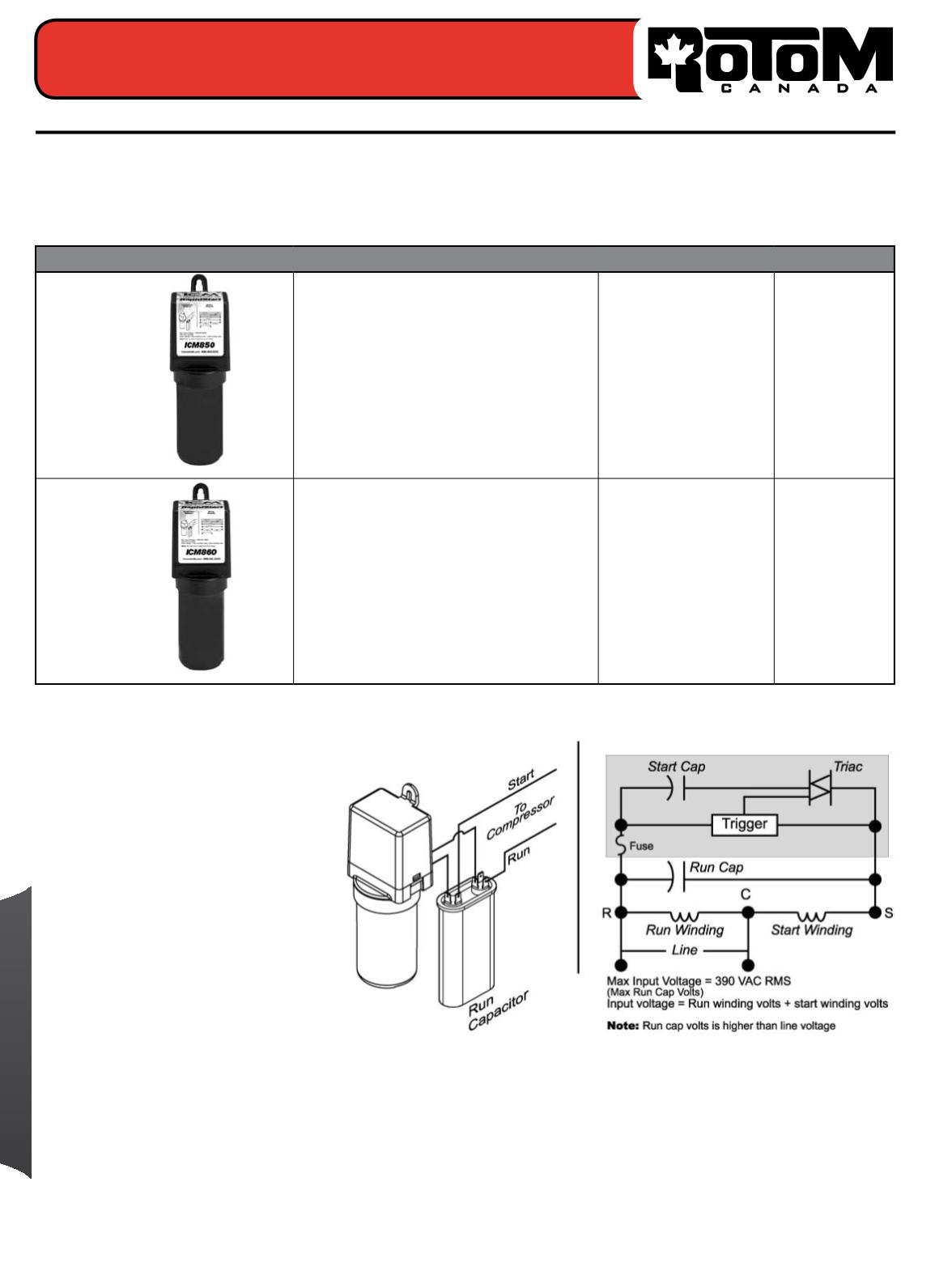

Wiring & System Diagrams
RapidStart® Applications
• Water Coolers
• Vending Machines
• Household Refrigerators (115 or 230 VAC)
• Commercial Refrigerators (115 or 230 VAC)
• Air Conditioners
• Heat Pumps
RapidStart® Features
• Self Adjusting
• Uses Current Differential Technology
• Does Not Use Potential Motor Start Relay
• Two Wires, Non-Polarized
• Recycles Instantly
• Senses Whether Motor Started or Not
• Replaces 3-Wire Relay & Capacitor Kit
• UL & CSA Recognized
• Approved By Compressor & Equipment
Manufacturers
• Used By OEM Manufacturers
• Safety Cut-Off
• True Power Factor Starting Not Required
• Not Factory Calibrated
• Not Voltage Sensitive
• Does Not Require PTCR Device
• No Timing Circuit Device
• Not Affected By Ambient Temperature
RapidStart® Motor Starters
Voltage Sensing
ICM’s differential voltage sensing products employ patented circuitry which monitors differential compressor
auxiliary voltage, determines the state of the motor and precisely engages and disengages the start capacitor. A
timed safety circuit is provided in the event the motor fails to start within 2 seconds.
Solid State Controls
Motor Starters
