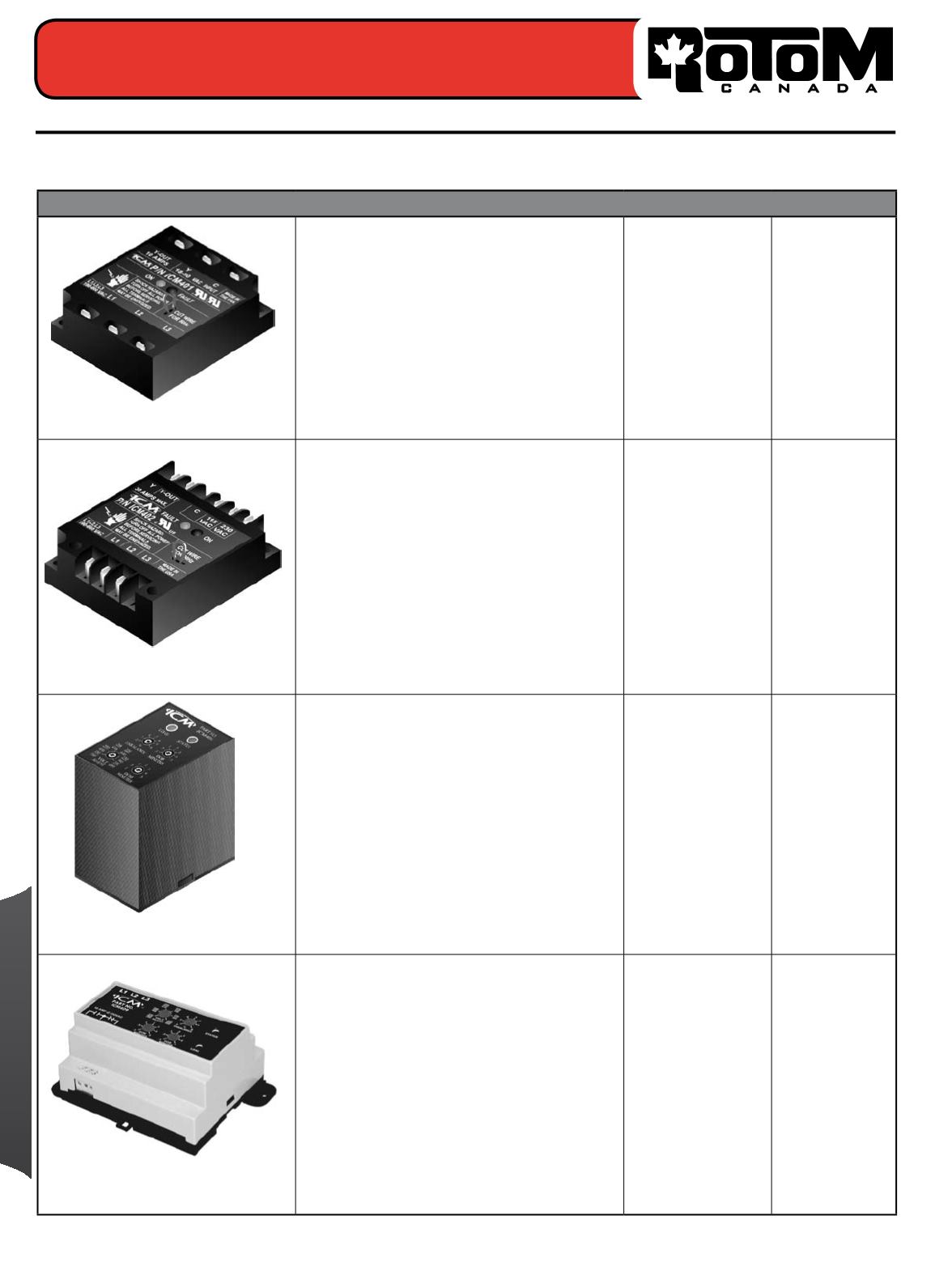

Butt’s Pumps and Motors - page 1625

134 www.rotom.ca
Phase Loss & Reversal Protection - Ultra Low Cost
Part # Features & Applications Specifications Cross Reference
24-ICM401
• Low cost 3-phase protection for single side.
• Monitors for phase reversal, phase loss, unbalance
% as a function of input voltage.
• Bright LED indicators for ON and FAULT.
• Universal 3-phase input: 190-600 VAC.
• Highly reliable passive electronics.
• IEEE587 transient-tested.
• Epoxy coated for added protection.
• Patented: U.S. Patent No. 5,337,206.
• 24-ICM401 enclosed model (Open 24-ICM403).
• 3.25" × 3" × 1.25".
• Voltage: 190-600
VAC.
• Frequency: 50/ 60
Hz.
• Control: 18-30 VAC.
• Output: relay, SPDT
N.O.: 10 amps.
N/A
24-ICM402
• Low cost 3-phase protection for single side.
• Monitors for phase reversal, phase loss, unbalance
% as a function of input voltage.
• Bright LED indicators for ON and FAULT.
• Universal 3-phase input: 190-600 VAC.
• Control voltage input: 190-240 VAC.
• Highly reliable passive electronics.
• IEEE587 transient-tested.
• Epoxy coated for added protection.
• Patented: U.S. Patent No. 5,337,206.
• 24-ICM402 enclosed model (Open 24-ICM404).
• 3.25" × 3" × 1.25".
• Voltage: 190-600
VAC.
• Frequency: 50/ 60
Hz.
• Control: 115 or
208/240 VAC.
• Output: relay, SPDT
N.O.: 30 amps.
N/A
24-ICM408
• Reliable 3-phase protection for single side.
• Monitors for phase reversal, phase loss, unbalance
% and high/ low voltage.
• Bright LED indicators for ON and FAULT.
• High/ low voltage cut-out: high voltage cut-out set
point +12%, low voltage cut-out set point -12%.
• Highly reliable passive electronics.
• Power/ phase loss detection: within 100ms.
• User selectable unbalance voltage: 2 to 8%.
• Phase reversal detection: detects on power up.
• 8 pin plug-in mount.
• 4" × 2.5" × 1.75".
• Voltage: 190-480
VAC.
• Frequency: 50/ 60
Hz.
• Adjustable DOB: 0.1
to 5 min.
• Adjustable DOM: 0.1
to 5 min.
• Heavy duty SPDT
relay output: NO/ NC
- contacts: 10 amps.
- resistive @ 250 VAC.
N/A
24-ICM409
• Reliable 3-phase protection for single side.
• Monitors for phase reversal, phase loss, unbalance
% and high/ low voltage.
• Bright LED indicators for ON and FAULT.
• High/ low voltage cut-out: high voltage cut-out set
point +12%, low voltage cut-out set point -12%.
• Highly reliable passive electronics.
• Power/ phase loss detection: within 100ms.
• User selectable unbalance voltage: 2 to 8%.
• Phase reversal detection: detects on power up.
• User selectable delay on make: 0.5 to 5 min.
• DIN rail mount.
• 4.25" × 3.5" × 2.375".
• Voltage: 190-480
VAC.
• Frequency: 50/ 60
Hz.
• Adjustable DOB: 0.1
to 5 min.
• Adjustable DOM: 0.1
to 5 min.
• Heavy duty SPDT
relay output: NO/ NC
- contacts: 10 amps.
- resistive @ 250 VAC.
NA
Motor Protection Controls
Solid State Controls
Motor Protection Controls
