Part #
Features & Applications
Specifications Cross Reference
24-ICM803
• Operates from 95 to 288 VAC.
• Max input voltage: 502 VAC.
• Patented current sensing circuitry.
• Self-adjusting to voltage fluctuation.
• Easy to install, 2 wires.
• OEM approved.
• Solid-state circuitry.
• Boosts starting torque.
• Disengages upon start.
• Ideally suited for
1/2 thru 3 Hp.
• 88 to 106 Mfd. capacitor.
Supco
• SPP-8
Kickstart
• TO5
• TO-5
24-ICM805
• Operates from 95 to 288 VAC.
• Max input voltage: 502 VAC.
• Patented current sensing circuitry.
• Self-adjusting to voltage fluctuation.
• Easy to install, 2 wires.
• OEM approved.
• Solid-state circuitry.
• Boosts starting torque.
• Disengages upon start.
• Ideally suited for
3 thru 5 Hp.
• 145 to 175 Mfd. capacitor.
Kickstart
• KS1
24-ICM810
• Operates from 95 to 288 VAC.
• Max input voltage: 502 VAC.
• Patented current sensing circuitry.
• Self-adjusting to voltage fluctuation.
• Easy to install, 2 wires.
• OEM approved.
• Solid-state circuitry.
• Boosts starting torque.
• Disengages upon start.
• Ideally suited for 5 thru
10 Hp.
• 243 to 292 Mfd. capacitor.
N/A

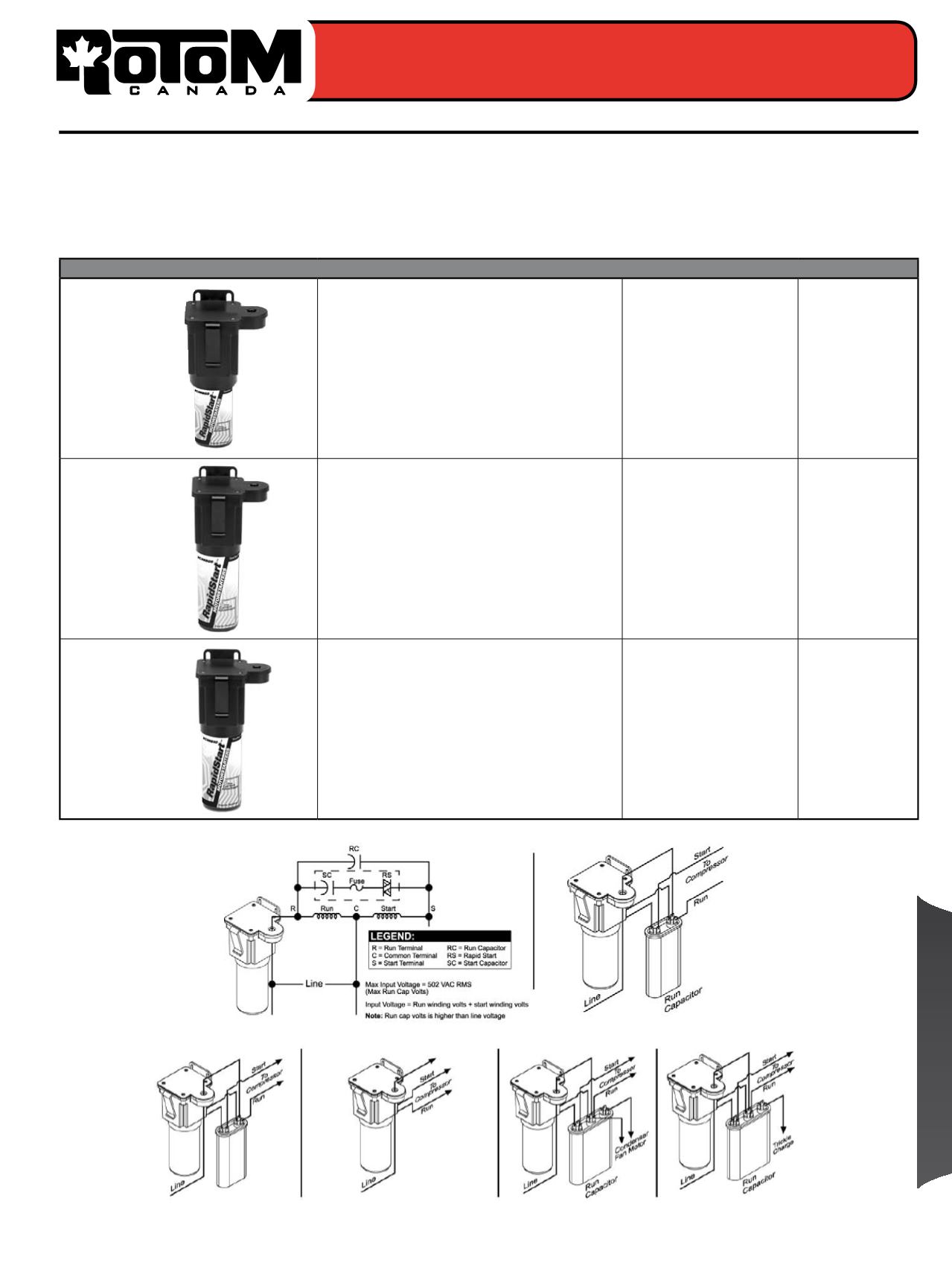

Wiring & System Diagrams
Alternate Wiring Configurations
PSC Units
Capacitor Start Induction Run
Double Capacitor
Off Cycle Heat
RapidStart® Motor Starters
Current Sensing
By monitoring the compressor "current" upon start-up, RapidStart® is able to engage the hard start capacitor
for precisely the correct amount of time, ensuring maximum starting torque without the risk of supplying too
much current into the start winding. A timed safety circuit is provided in the event the motor fails to start within 2
seconds. Current sensing hard start precisely increases starting torque.
