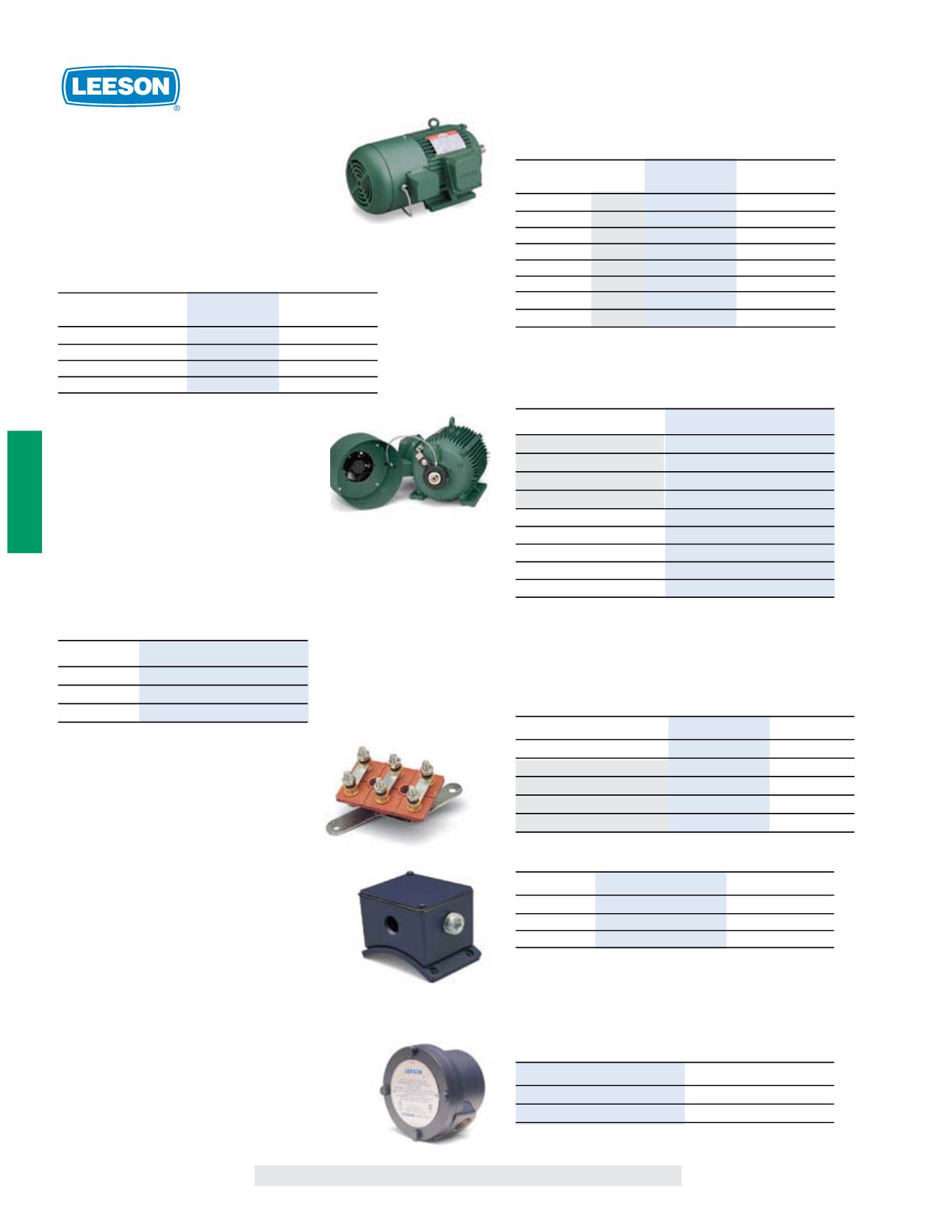

Accessories
TERMINAL BLOCK KITS
Terminal block kits for 150 and 170 Series
NEMA Frame Cast Iron motors. Can also be
used for replacement on 193 Series Cast Iron
and 192 Series aluminum IEC metric motors.
BLOWER FAN KITS
These kits are used for converting 150 and 170
Series Cast Iron TEFC motors to Totally Enclosed
Blower Cooled motors. Cooling per MG1.6 (IC46)
The kits are designed for inverter and vector drive
applications where continuous cooling is required
regardless of motor shaft speed. The kit is mounted on the back of the motor
after removing the fan guard and fan. Modifying the shaft is not required.
ENCODER KITS
These kits include the parts and encoder for field
assembly of slim-line, through-shaft encoder
designed to slip over the motor’s fan end shaft.
Blower kit sold separately.
Output is 1024 pulses per revolution, quadrature,
5 to 28 VDC line driver output. Short-circuit
protection is standard. Inputs are over voltage and
reverse voltage protected. Electrical noise immunity exceeds international
standards. Encoders are isolated from shaft currents using hard anodized
sleeves and non metallic anti-rotation hardware. Designed for long-life in
industrial environments using an all-metal, shock resistant code disk. The
encoder is protected by the motor’s fan cover after mounting. Using a blower
fan kit is suggested for proper motor cooling.
NEMA
IEC
Catalog
App. Wgt.
Frame
Frame
Number
(lbs.)
—
63-90L
175881
Z
1
180/210T
100/112/132
175668
2
250/280T
160/180
175667
3
320/360T
200/225
175666
4
400/440T
250/280
175665
5
Z
Replacement terminal board for aluminum frame IEC motors.
DIE CAST ALUMINUM CONDUIT BOX
CONVERSION KIT
56/140-frame kit (pictured) includes die cast aluminum
conduit box, cover, gaskets, grounding screw,
mounting hardware and adapter plate for mounting
box on existing holes in motor. 180 and 210-frame kits
include all parts required to replace the conduit box
including the die cast conduit box, plug, cover, gaskets
and mounting hardware. No adapter plate is required
because these kits mount on existing holes. All conduit boxes have 1/2-NPT
tapped lead exit holes on two adjacent sides with one hole plugged. Note: the kit
will not work with larger HP single-phase 210-frame motors.
For use with 150 & 170 Series Cast Iron TEFC Motors only.
For NEMA
Encoder Kit
Frame
Catalog Number
182-4T
175684
213-5T
175685
254-6T
175686
284-6T
175687
320T
175641
360T
175642
400T
175643
440T (2 pole)
175644
440T (4/6 pole)
175645
For use with Rolled Steel/TEFC Motors only.
For NEMA
Encoder Kit
Frame
Catalog Number
56-145T
175960
182-4T
175897
213-5T
175898
NEMA
Catalog
App. Wgt.
Frame
Number
(lbs.)
56-140T
175892
2
182-4T
175649
2
213-5T
175847
11
EXPLOSION-PROOF CONDUIT BOX
UL and CSA listed for Class I, Group C & D, and Class
II, Groups E, F & G locations. Has grounding screw and
all hardware provided. Mounts to motor by 3/4”-14NPT
opening at rear of box. For NEMA 56 & 143-5T frame
motors only. Box number 175755 has a 1” NPT thread.
Catalog
App. Wgt.
Number
(lbs.)
175026
2
175755
(1)
2
(1)
For motors having a letter P after the date code.
For use with 150 & 170 Series Cast Iron TEFC Motors only.
Blower Motor
App.
NEMA
Catalog
Wgt.
Voltage Phase
Frame
Number
CFM
(lbs.)
115
1
182-4T
175674
260
10
115
1
213-5T
175675
260
11
115
1
254-6T
175676
260
17
115
1
284-6T
175677
500
24
115
1
324-6T
175678
500
28
230/460 3
360T
175879
500
35
230/460 3
400T
175880
500
45
230/460 3
440T
175558
J
500
55
J
For 444T/445T motors
SHADED FRAME INDICATES CAST IRON CONSTRUCTION
MOTOR ACCESSORIES
FIELD INSTALLED
For use with Rolled Steel TEFC Motors only.
Blower Motor
App.
NEMA
Catalog
Wgt.
Voltage Phase
Frame
Number
CFM
(lbs.)
115
1
56-145T
175876
115
4
115
1
56-145T
175775
¡
115
4
115
1
182-4T
175895
115
4
115
1
213-5T
175896
235
5
¡
For 56/145T motors having face mounted (plastic) fan guards.
