Gearmotors
SUB-FHP MOTORS
INVERTER RATED
ALL DIMENSIONS IN INCHES
Design Specifications:
Three phase motors totally enclosed for continuous duty,
general purpose applications.
Standard on all these ratings is the exclusive Inverter
Rated Insulation System (IRIS). This provides superior
protection against voltage spikes induced by variable
frequency drives.
Many superior mechanical features double shielded ball
bearings, welded-on base, steel conduit box provided
as standard, furnished with high gloss hardened black
enamel paint.
Application Notes:
These motors are designed with high temp insulation
(Class F) to avoid overheating when operated with a
PWM inverter down to a 10:1 speed range from the
motor’s base speed.
ÓÎäÊ6" /ÊUÊ/ , Ê* -
£°äÊ- ,6 Ê /",ÊUÊ/"/ 9Ê "-
RPM F.L.
60 Catalog Amps
HP Hz Frame Number Voltage 230V
1⁄ 15 1725 38 M1140171* 230 .4
1 ⁄6 1725 38 M1140173* 230 .72
1 ⁄4 1725 38 M1140172 230 1.1
* TENV enclosure

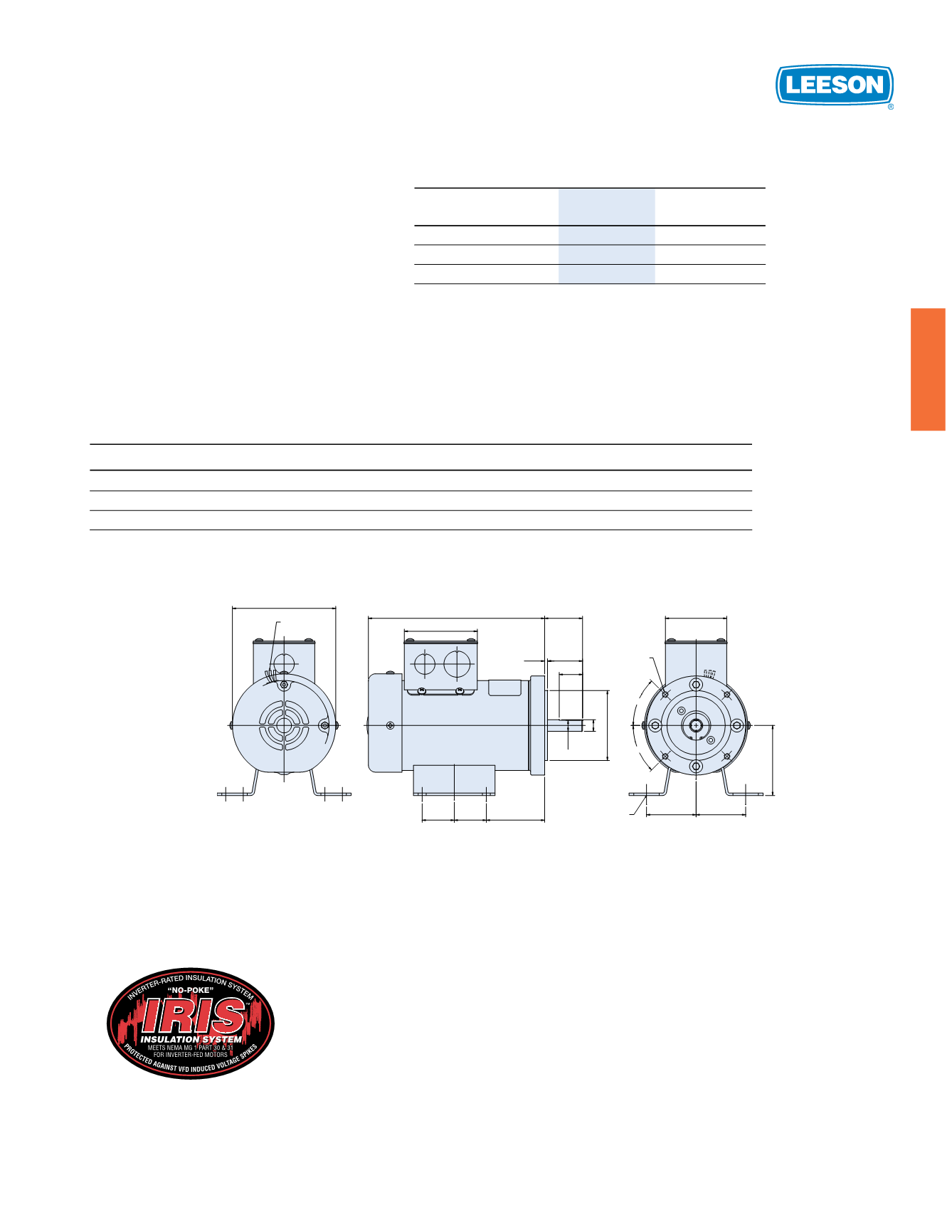

38 FRAME NEMA C-FACE WITH BASE DIMENSIONS
Catalog
Number AG P U AH BB AJ TAP R AK BB D BA E F H
M1140171 5.14 3.85 .5000 1.63 1.00 3.75 1/4-20 4.25 3.00 .13 3.0 2.50 2.125 1.375 11/32 Slot
M1140173 6.14 3.85 .5000 1.63 1.00 3.75 1/4-20 4.25 3.00 .13 3.0 2.50 2.125 1.375 11/32 Slot
M1140172 7.56 4.43 .5000 1.63 1.00 3.75 1/4-20 4.25 3.00 .13 3.0 2.50 2.125 1.375 11/32 Slot
"AH"
"U" "AK"
"BB" "N"
FLAT
.47 FLAT
TAP
"BA"
"D"
"E" "E"
"F" "F" "H"
"AG" 2.63
"P"
MOTOR LEADS
6.00 LG MIN
45∞
45∞
3.13
NAMEPLATE
AC 38 48C
LEESON’S Inverter Rated Insulation System (IRIS™)
provides superior protection against voltage spikes
induced by variable frequency drives. This total insulation
system protects better than spike-resistant magnet wire
alone. Sleeved connections (from the leads all the way
into the turns), and deep-penetrating, non-hygroscopic,
high temperature varnish are just a few features
contributing to extra protection. All this plus second
generation spike-resistant magnet wire. The IRIS™ total
insulation system is standard at no extra cost.
œÌ ʓœÌœÀÃʜ˜ÞÊ>˜`Ê}i>À“œÌœÀÃÊ܈Ê >Ûiʈ˜ÛiÀÌiÀÊÀ>Ìi`Ê«Àˆ˜Ìi`ʜ˜ÊÌ iʘ>“i«>Ìi°Ê
UL and CSA recognition for both motors only and gearmotors
