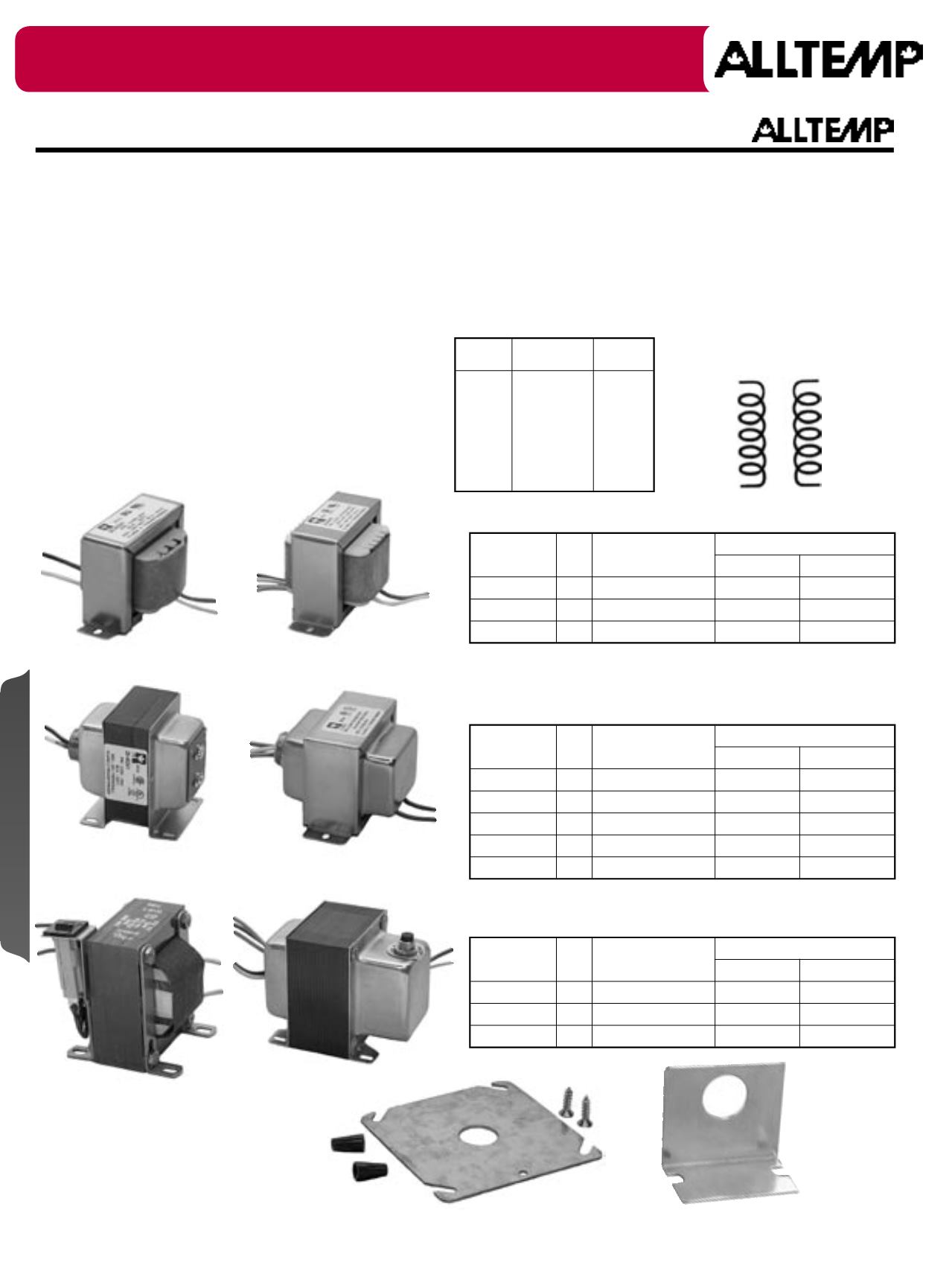

Butt’s Pumps and Motors - page 1180

175 Electrical www.alltemp.ca
SPECIALLY DESIGNED FOR LOW
VOLTAGE CONTROL APPLICATIONS
IN THE INDUSTRIAL HEATING &
COOLING INDUSTRY!
Features
• Compact superior design.
• Individually boxed with instructions.
• Includes necessary mounting hardware.
• Complete cross-reference.
• UL, cUL & CSA Class 2 not wet, Class 3 wet.
• Class 2 UL listed per UL 1585.
• Class 2 CSA listed per CSA 22.2 No. 66.
Lead Wire Colour Coding
Black
Primary
Common Lead
Voltage
White
Secondary
2.5 Orange
12 Red
24 Blue
White 120
Red 208
Orange 240
Yellow 277
Gray 480
Control Transformers
Control Transformers
Control transformers are designed for use in 2.5, 12 or 24
volt alternating current (AC) control systems, including air
conditioning circuits, thermostats, gas valves, relays and or
other applications that do not exceed the listed ratings. These
contactors can be used to replace any transformers of the
same primary voltage and equal or smaller VA ratings.
Primary
Black
Common
120White
208 Red
240 Orange
277Yellow
480 Gray
Secondary
White
Common
2.5 Orange
12 Red
24 Blue
25-52C6
Mounting Plate & Hardware
Foot Mount
Part # VA Primary Voltage Secondary
Voltage Connections
25-20241 20 120 24 Wire
25-40244 40 120 24 Wire
25-40245 40 120/ 208/ 240 24 Wire
Multi Mount
• 25-52C6 mounting plate, (2) screws & (2) wire
connectors included.
Part # VA Primary Voltage Secondary
Voltage Connections
25-40241 40 120 24 Screw
25-40242 40 208/ 240/ 277 24 Screw
25-40243 40 120/ 208/ 240 24 Screw
25-48003 48 120/ 208/ 240 2.5 / 12 / 24 Wire
25-50243 50 120/ 208/ 240 24 Wire
Foot Mount
Heavy Duty (c/w Circuit Breaker)
Part # VA Primary Voltage Secondary
Voltage Connections
25-75241 75 120 24 Wire
25-75244 75 120/ 208/ 240/ 480 24 Wire
25-10244 96 120/ 240/ 277/ 480 24 Wire
25-20241 25-40244
25-40245 Illustrated
25-40241 Illustrated
25-40242
25-40243
25-48003 Illustrated
25-50243
25-75241 25-75244 Illustrated
25-10244
25-FA112
Optional Mounting Plate
Transformers
