Electrical
3-Phase Line Voltage Monitors - Full Performance
Part #
Features & Applications
Specifications
Cross Reference
24-ICM450
• Fully Programmable - with LCD diagnostic display.
• Easy to configure - simple 7-step push-button setup.
• Easy to customize - set points, variables and fea-
tures are fully adjustable and may be defined by the
user while in control SETUP mode.
• 25 - fault memory storage, non-volatile.
• Independent high and low voltage settings - ideal
for dual voltage compressor applications.
• Monitors/ identifies front & back side faults.
• Reset mode: choice of auto or manual.
• Protects against: voltage unbalance, high/ low
voltage, phase loss, reversal, faulty power, incorrect
sequencing and rapid short cycling.
• Reliable, high temperature LCD to 167°F.
• Simultaneous voltage display - no scrolling.
• Line voltage programmable.
• Universal Voltage Operation: 190-630 VAC.
• Voltage: 190-630 VAC.
• Frequency: 50/ 60 Hz.
• Voltage Unbalance:
adjustable: 2-25%.
• Control: 18-240 VAC.
• Delay on break timer:
(0.1-10 min.).
• Output: relay, SPDT
N.O.: 10 amps.
N.C.: 6 amps.
Diversified
• AC-2020
• AC-301
• AC-302
Motorsaver
• 455
SSAC
• QLM/ QLV
Time Mark
• 265
Wagner
• WPC-800
Watsco
• EAC-800
• EAC-8000
24-ICM400
• Lower cost, full performance version featuring bright
LED indicators to display system faults.
• Monitors "front" and "back" sides of system.
• Universal Voltage Operation: 190-630 VAC.
• Knob-adjustable features and system set points.
• Reset mode: choice of auto or manual lockout.
• Built-in anti short-cycle protection.
• Protects against: voltage unbalance, high/ low
voltage, phase loss, reversal, faulty power, incorrect
sequencing and rapid short cycling.
• 6.5" × 4.25" × 1.5".
• Voltage: 190-630 VAC.
• Frequency: 50/ 60 Hz.
• Voltage Unbalance:
adjustable: 2-25%.
• Control: 18-240 VAC.
• Delay on break timer:
(0.1-10 min.).
• Output: relay, SPDT
N.O.: 10 amps.
N.C.: 6 amps.
Diversified
• AC-2020
• AC-301
• AC-302
Motorsaver
• 455
SSAC
• QLM/ QLV
Time Mark
• 265
Wagner
• WPC-800
Watsco
• EAC-800
• EAC-8000

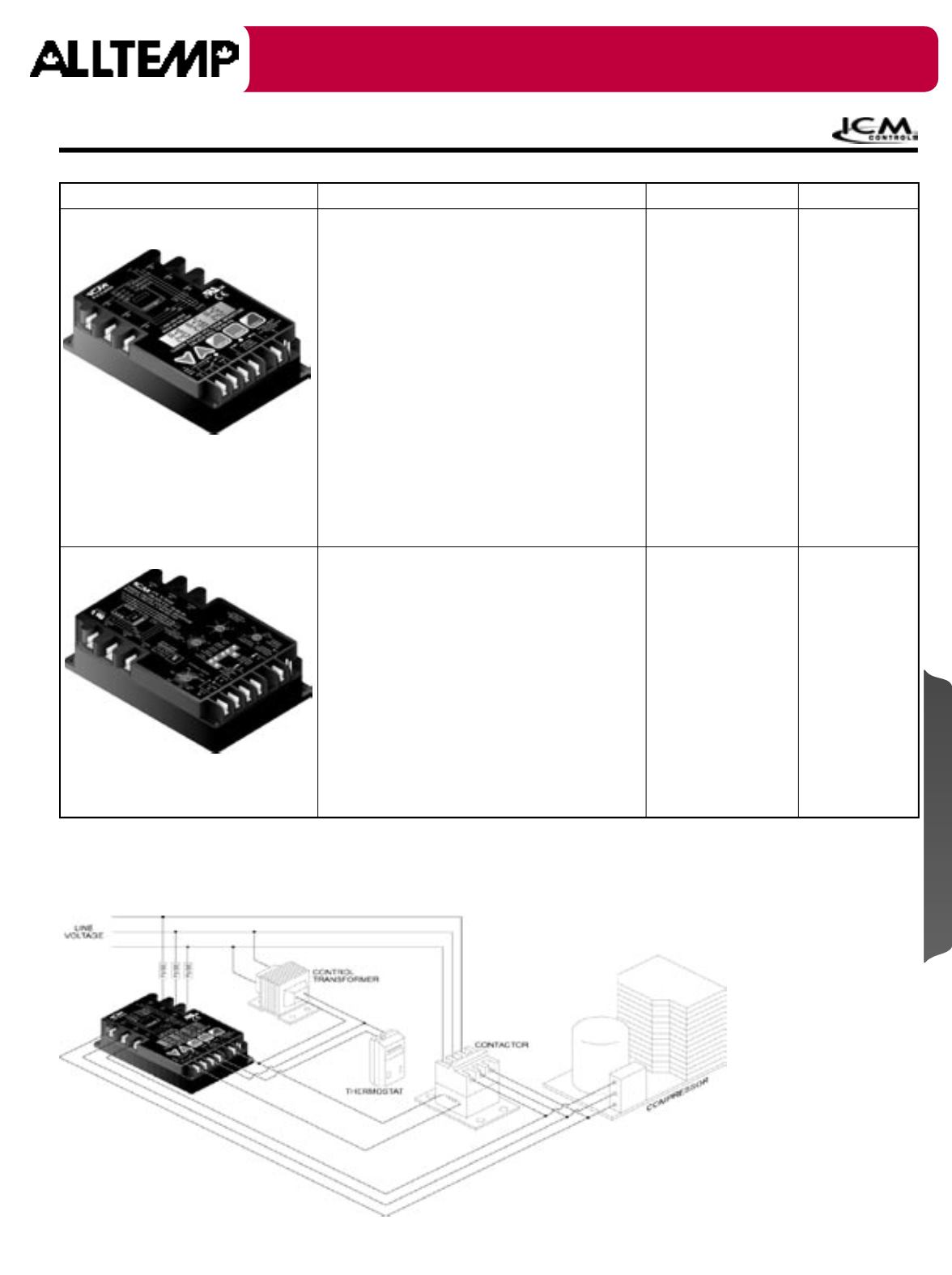

24-ICM450 Typical System Diagram
Mode Of Operation
STOP MOTOR BURNOUTS!
• Monitor voltage unbalance, high/ low voltage, phase loss, reversal,
incorrect sequencing and rapid short cycling.
• Voltage monitors are specifically
designed to protect compressor
motors and other 3-phase
loads from premature failure or
damage due to common voltage
faults. They offer complete
system protection by monitoring
both the source (front) and
load (back) side of the system
including the power, motor and
contactor lines. In addition, an
integral "delay on break timer"
guards against rapid short-
cycling at both the control circuit
and the 3-phase lines. Compact
and easy to install, the 24-
ICM400 & 24-ICM450 provide
highly reliable protection for your
valuable equipment.
Motor Protection Controls
Solid State Components
