Electrical

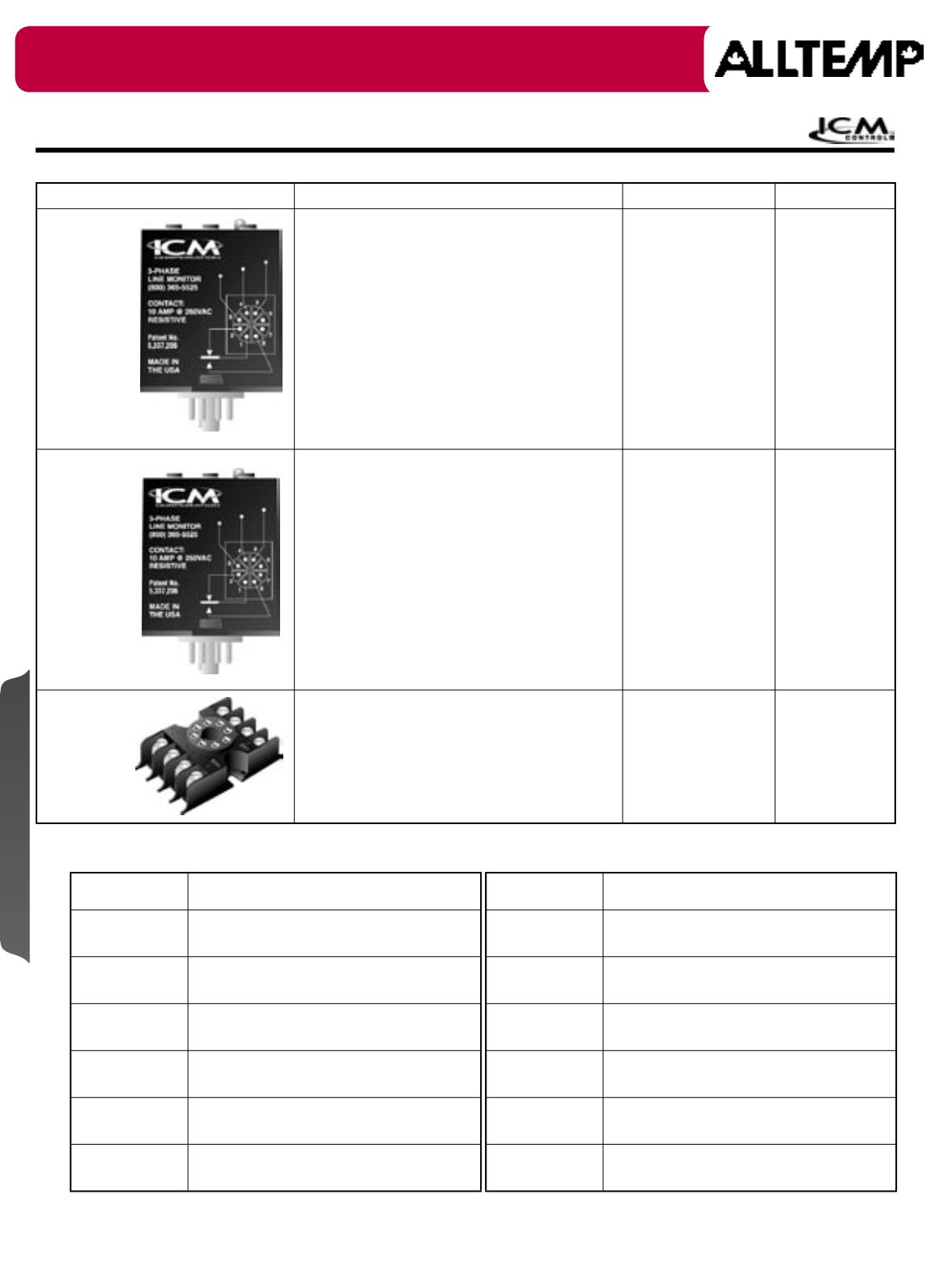

3-Phase Line Voltage Monitors - Plug-in, Single Side Only
Part #
Features & Applications
Specifications
Cross Reference
24-ICM410
24-ICM411
24-ICM412
24-ICM415
24-ICM416
24-ICM417
• Basic low cost, 3-phase motor protection.
• Super-quick 100 ms. response time.
• Voltage ranges: 200-480 VAC.
• 410-412: fixed 8% Voltage Unbalance.
• 415-417: adj. 4-8% Voltage Unbalance.
• Monitors single side of system for: voltage unbal-
ance, high/ low voltage, phase loss, incorrect
sequence, reversal.
• LED indicator: green for normal conditions.
• Interrogation delay prevents nuisance trips.
• Patented: U.S. Patent No. 5,337,206.
• 2.5" × 1.75" × 4".
• Line: 200-480 VAC
determined by mode.
• Control: 18-240 VAC/
VDC.
• Frequency: switch se-
lectable 50 or 60 Hz.
• Output: relay SPDT,
8 amps resistive.
Diversified
• SLA Series
• SVA Series
24-ICM420
24-ICM421
24-ICM422
24-ICM425
24-ICM426
24-ICM427
• Same features as Series 24-ICM410-417 plus
built-
in anti short cycle protection
.
• Voltage ranges: 200-480 VAC.
• 420-422: fixed 8% Voltage Unbalance.
• 425-427: adj. 4-8% Voltage Unbalance.
• Monitors single side of system for: voltage unbal-
ance, high/ low voltage, phase loss, incorrect
sequence, reversal.
• LED indicator: green for normal conditions.
• Interrogation delay prevents nuisance trips.
• Patented: U.S. Patent No. 5,337,206.
• 2.5" × 1.75" × 4".
• Voltage: 200-480 VAC
determined by model.
• Control: 18-240 VAC/
VDC.
• Frequency: switch se-
lectable 50 to 60 Hz.
• Output: relay SPDT, 8
amps resistive.
• ASC timer: range adj.
6-300 sec.
Diversified
• AC-410
• AC-411
24-ACS-8
• Relay socket.
• 8-pin octal plug-in base.
• Locating key ensures proper orientation.
• Order ACS-11 for 11-pin base.
• For use with 24-ICM410-427, 500-505.
• Rated for 480 VAC.
• 10 amps up to 480
VAC.
Diversified
• RB-08
Motor Protection Controls - 24-ICM410 to 24-ICM427 Specifications
Part #
24-ICM410-415
Ultra Low Cost Protection
Part #
24-ICM420-427
With Built-in Anti Short-Cycle Protection
24-ICM410
User-adjustable input voltage: 200 to 240 VAC.
Factory Fixed 8% voltage unbalance.
24-ICM420
User-adjustable input voltage: 200 to 240 VAC.
Factory Fixed 8% voltage unbalance.
24-ICM411
User-adjustable input voltage: 360 to 430 VAC.
Factory Fixed 8% voltage unbalance.
24-ICM421
User-adjustable input voltage: 360 to 430 VAC.
Factory Fixed 8% voltage unbalance.
24-ICM412
User-adjustable input voltage: 400 to 480 VAC.
Factory Fixed 8% voltage unbalance.
24-ICM422
User-adjustable input voltage: 400 to 480 VAC.
Factory Fixed 8% voltage unbalance.
24-ICM415
User-adjustable input voltage: 200 to 240 VAC.
User-adjustable voltage unbalance: 4% to 8%.
24-ICM425
User-adjustable input voltage: 200 to 240 VAC.
User-adjustable voltage unbalance: 4% to 8%.
24-ICM416
User-adjustable input voltage: 360 to 430 VAC.
User-adjustable voltage unbalance: 4% to 8%.
24-ICM426
User-adjustable input voltage: 360 to 430 VAC.
User-adjustable voltage unbalance: 4% to 8%.
24-ICM417
User-adjustable input voltage: 400 to 480 VAC.
User-adjustable voltage unbalance: 4% to 8%.
24-ICM427
User-adjustable input voltage: 400 to 480 VAC.
User-adjustable voltage unbalance: 4% to 8%.
24-ICM420 to 24-ICM427 Feature an integral, user-adjustable anti short-cycle timer.
