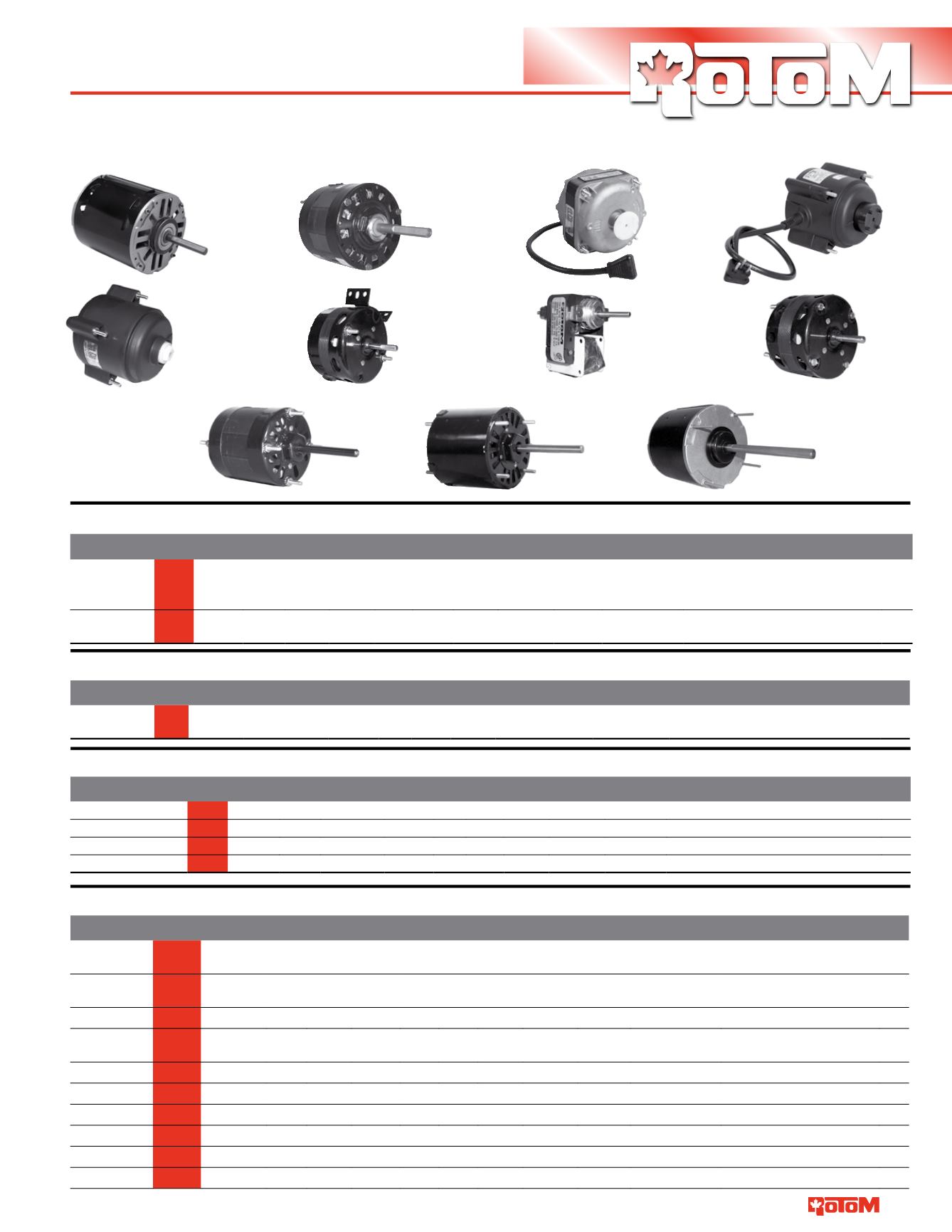

33
Motors Are Sleeve Bearing Unless Indicated - Rotation Determined Opposite Shaft End (Double Shaft Determined By Lead End)
Fig. 10
Fig. 11
Arkla
Part # HP Volts Amps Type RPM Rot. Body Dia Bearing Cap Shaft
Comments
Fig
R6-R32317
1/3
115 4.8 PSC 1/825 CCW 5.43" 5.5"
Ball
5/370 2.5" × 1/2"
B14506-393, B14506-363,
F48SR8V1, F48SP8V3, K8042, 2342,
C729, 3M824, D795
1
R6-R32237
1/2
230 3.0 PSC 1/825 CCW 5.38" 5.5"
Ball
5/370 2.75" × 1/2"
B14506-396, B14506-354, F48S-
R8V3, F48SR8V7, F48ST8V1, K8075
1
Armstrong
Arneg
Blanchard-Ness (cont. next page)
Part # HP Volts Amps Type RPM Rot. Body Dia Bearing Cap Shaft
Comments
Fig
M4-R2691
1/5
208/230 1.5 PSC 1/1075 CW 4.00" 5.0" Sleeve 5/370 3.9" × 1/2"
Magic Chef, 35035B001 Johnson Air Ease
322P859, CJK15,18,24,30,36, F42B59A01
2
Part # Watts Volts Amps Type RPM Rot. Body Dia Bearing Shaft
Comments
Fig
EC-4W115V835
4
115 0.40
SP 1/1550 CW 2.30"
-
Sleeve Hubless
34410000
3
EC-9W115V834
9
115 0.58
SP 1/1550 CW 2.67"
-
Sleeve Hubless
34410001
3
EC-HE-0147
12
115 0.18 ECM 1/1450 CW 3.61"
-
Ball
Hubless
34410013 , 34410009, 24681010 4
EC-HE-0170
12
115 0.18 ECM 1/1450 CW 3.61"
-
Ball
Hubless
34410012 (for fan 34415010)
5
Part # HP Volts Amps Type RPM Rot. Body FrameBearing Cap Shaft
Comments
Fig
R3-R326
1/125
120 0.50 SP 1/1550 CW 1.94" 3.3"
Ball
-
1.4" × 1/4"
Blower Coil Motors,
E01001,2,3
6
T1-R1014
1/100
115 0.70 SP 1/3000 CW 0.875 Skel
Sleeve
-
1.25"×0.1811"
Bohn, Hussman Evap. Motor
E1014, J238-087-8104
7
R3-R302
1/100
240 0.30 SP 1/1550 CW 1.94" 3.3" Sleeve
-
1.3" × 1/4"
Blower Coil Motors, E01004 8
R3-R358
1/20
120 2.00 SP 1/1550 CCW 3.25" 3.3" Sleeve
-
2.8" × 5/16"
Blower Coil Motors,
E01007,57,58
9
R3-R359
1/20
208/240 1.20 SP 1/1550 CCW 3.25" 3.3" Sleeve
-
2.8" × 5/16" Blower Coil Motors, E01059 9
R3-R1052
1/20
120 2.00 SP 1/1550 CCW 3.0" 3.3"
Ball
-
2.8"× 5/16"
Blower Coil Motors, E1052 10
R3-R1053
1/20
208/230 1.00 SP 1/1550 CCW 3.0" 3.3"
Ball
-
2.8"× 5/16"
Blower Coil Motors, E1053 10
M2-R22445
1/4
208/230 1.50 PSC 1/825 Rev 5.11" 5.5" Sleeve 5/370 6" × 1/2"
E1026
11
M2-R22746
1/3
208/230 2.60 PSC 1/1075 Rev 4.80" 5.5" Sleeve 7.5/370 6" × 1/2"
E1022, E1025
11
M2-R22745
1/2
208/230 4.40 PSC 1/1075 Rev 4.80" 5.5" Sleeve 5/370 6" × 1/2"
E1064
11
Fig. 6
Fig. 8
Fig. 9
Fig. 2
Fig. 5
Fig. 7
Fig. 1
Fig. 4
Fig. 3
OEM Replacement Motors
"N" - New Product
"N" - New Product
