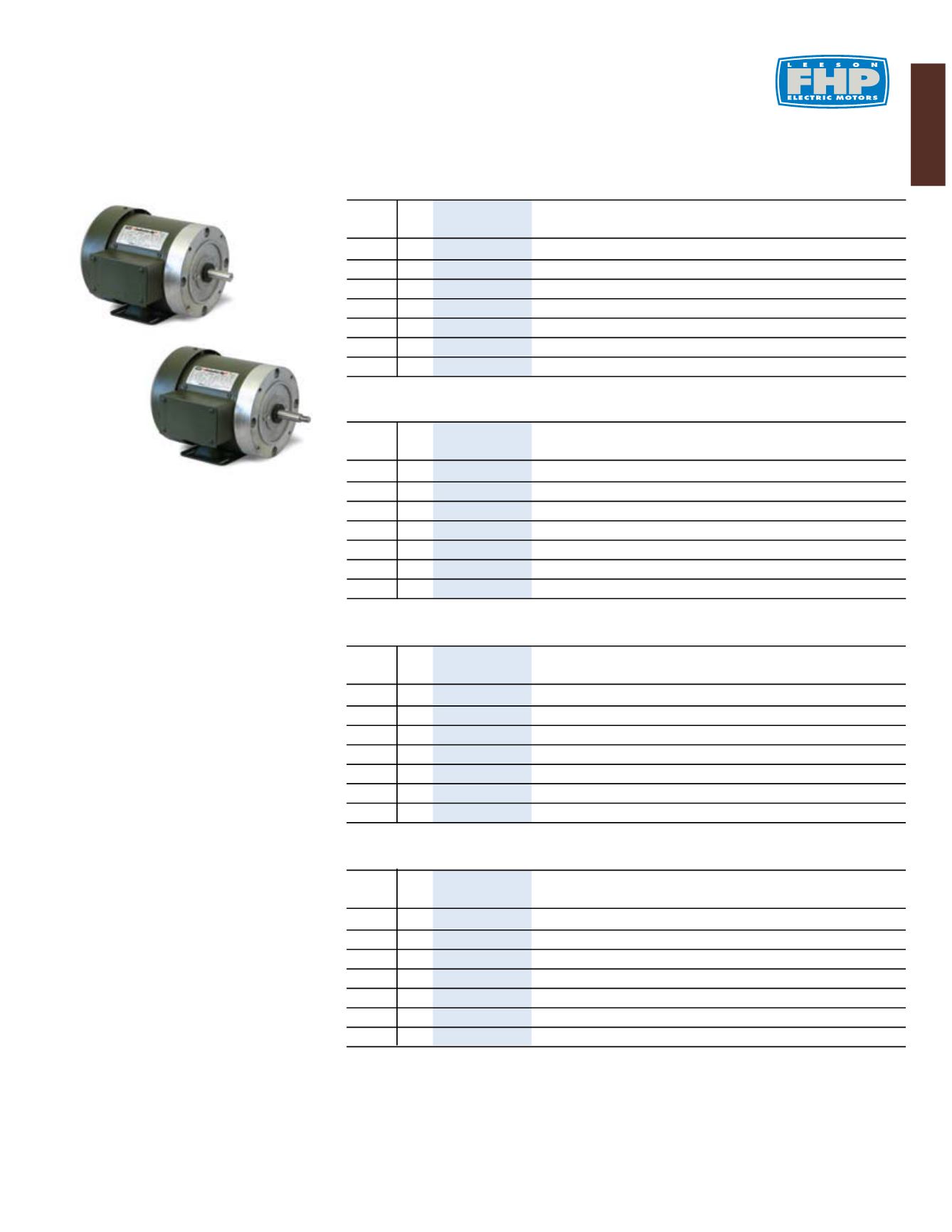

Butt’s Pumps and Motors - page 485

79
Specifications are subject to change without notice
AC Motors
Óän‡ÓÎäÉ{ÈäÊ6" /ÊUÊ ‡ ÊEÊ, ÊUÊ 9 Ê- /
RPM App. F.L. “C”
60 NEMA Catalogue Wgt. Service Amps Dim.
HP Hz Frame Number (lbs.) Voltage Factor 230V (in.)
1/3 3600 S56C 191429 20 208-230/460 1.15 1.1 11.02
1/2 3600 S56C 191430 22 208-230/460 1.15 1.5 11.02
3/4 3600 S56C 191431 23 208-230/460 1.15 2.2 11.51
1 3600 S56C 191432 24 208-230/460 1.15 3 11.77
1.5 3600 56C 191433 31 208-230/460 1.15 4.2 12.07
2 3600 56C 191434 36 208-230/460 1.15 5 12.58
3 3600 56C 191435 39 208-230/460 1.15 7.6 14.06
Rugged, TEFC three phase jet pump
motors for industrial service. NEMA 56C
face standard or threaded shaft (56J) and
base mounting. Stator impregnated with
heavy varnish system. High temperature
copper magnet wire for high overload
capacity. Grounding provision inside
oversized conduit box.
Shaft Material
303 stainless steel, threaded
Features
s "ALL BEARINGS
s 6 MOTORS ARE SUITABLE FOR
190/380 V 50 Hz.
*%4 05-0 -/4/23 s 4(2%% 0(!3% s 4%&#
PUMP MOTORS
THREE PHASE
Óän‡ÓÎäÉ{ÈäÊ6" /ÊUÊ ‡ ÊEÊ, ÊUÊ/ , Ê- /
RPM App. F.L. “C”
60 NEMA Catalogue Wgt. Service Amps Dim.
HP Hz Frame Number (lbs.) Voltage Factor 230V (in.)
1/3 3600 S56J 191450 20 208-230/460 1.15 1.1 11.02
1/2 3600 S56J 191451 22 208-230/460 1.15 1.5 11.02
3/4 3600 S56J 191452 23 208-230/460 1.15 2.2 11.51
1 3600 S56J 191453 24 208-230/460 1.15 3 11.77
1.5 3600 56J 191454 31 208-230/460 1.15 4.2 12.07
2 3600 56J 191455 36 208-230/460 1.15 5 12.58
3 3600 56J 191456 39 208-230/460 1.15 7.6 14.06
xÇxÊ6" /ÊUÊ ‡ ÊEÊ, ÊUÊ 9 Ê- /
RPM App. F.L. “C”
60 NEMA Catalogue Wgt. Service Amps Dim.
HP Hz Frame Number (lbs.) Voltage Factor 575V (in.)
1/3 3600 S56C 191443 20 575 1.15 0.4 11.02
1/2 3600 S56C 191444 22 575 1.15 0.6 11.02
3/4 3600 S56C 191445 23 575 1.15 0.9 11.51
1 3600 S56C 191446 24 575 1.15 1.2 11.77
1.5 3600 56C 191447 31 575 1.15 1.7 12.07
2 3600 56C 191448 36 575 1.15 2 12.58
3 3600 56C 191449 39 575 1.15 3 14.06
xÇxÊ6" /ÊUÊ ‡ ÊEÊ, ÊUÊ/ , Ê- /
RPM App. F.L. “C”
60 NEMA Catalogue Wgt. Service Amps Dim.
HP Hz Frame Number (lbs.) Voltage Factor 575V (in.)
1/3 3600 S56J 191457 20 575 1.15 0.4 11.02
1/2 3600 S56J 191458 22 575 1.15 0.6 11.02
3/4 3600 S56J 191460 23 575 1.15 0.9 11.51
1 3600 S56J 191461 24 575 1.15 1.2 11.77
1.5 3600 56J 191462 31 575 1.15 1.7 12.07
2 3600 56J 191463 36 575 1.15 2 12.58
3 3600 56J 191464 39 575 1.15 3 14.06
