AC Motors
/ , Ê* - ÊUÊ/ ÊUÊ, Ê - ÊUÊÓänÓÎäÉ{Èä6
App.
F.L.
%
“C”
NEMA
Catalogue
Wgt.
Amps
F.L.
Dim.
Frame
Number
(lbs.)
Voltage
230 V.
Eff.
(in.)
143JM
160464
41 208-230/460
3.4
82.5
14.85
145JM
160465
39 208-230/460
4.2
82.5
14.85
145JM
160466
44 208-230/460
4.6
84.0
15.35
145JM
160467
42 208-230/460
5.6
84.0
15.35
145JM
160468
43 208-230/460
6.2
84.0
15.35
145JM
160469
45 208-230/460
8.0
85.5
15.85
182JM
160275
113 208-230/460
8.6
87.5
18.68
182JM
151657
113 208-230/460
8.6
85.5
18.68
184JM
160277
120 208-230/460 12.0
87.5
18.68
184JM
151661
120 208-230/460 12.0
84.0
18.68
184JM
160279
120 208-230/460 13.2
87.5
18.68
184JM
151659
120 208-230/460 13.2
84.0
18.68
184JM
160281
147 208-230/460 19.0
88.5
18.68
184JM
151665
147 208-230/460 19.0
85.5
18.68
213JM
160283
249 208-230/460 18.4
89.5
20.17
213JM
151663
249 208-230/460 18.4
87.5
20.17
215JM
160285
172 208-230/460 23.8
89.5
21.67
215JM
151669
172 208-230/460 23.8
85.5
21.67
215JM
160287
180 208-230/460 24.6
89.5
21.67
215JM
151667
180 208-230/460 24.6
86.5
21.67
215JM
160289
197 208-230/460 36.0
90.2
21.67
215JM
151673
197 208-230/460 36.0
89.2
21.67
254JM
160291
284 208-230/460 37.0
91.0
25.29
254JM
151671
284 208-230/460 37.0
90.2
25.29
254JM
160293
322 208-230/460 48.0
90.2
25.29
254JM
151677
322 208-230/460 48.0
89.5
25.29
256JM
160295
337 208-230/460 48.0
91.0
27.00
256JM
151675
337 208-230/460 48.0
91.7
27.00
256JM
G151417
307 208-230/460 56.4
91.0
27.00
256JM
151417
307 208-230/460 56.4
91.0
27.00
284JM
G151418
370 208-230/460 58.8
92.4
27.17
284JM
151418
370 208-230/460 58.8
92.4
27.17
284JM
G151420
375 208-230/460 69.2
91.0
27.17
284JM
151420
375 208-230/460 69.2
91.0
27.17
286JM
G151422
428 208-230/460 69.8
92.4
28.74
286JM
151422
428 208-230/460 69.8
92.4
28.74
286JM
G151424
400 208-230/460 93.0
91.7
28.74
286JM
151424
400 208-230/460 93.0
91.7
28.74
324JM
G151426
528 208-230/460 95.2
93.0
31.33
324JM
151426
528 208-230/460 95.2
93.0
31.33
/ , Ê* - ÊUÊ/ ÊUÊ, Ê - ÊUÊxÇx6
RPM
App.
F.L.
%
“C”
60
NEMA
Catalogue
Wgt.
Amps
F.L.
Dim.
HP
Hz
Frame
Number
(lbs.)
Voltage
575 V.
Eff.
(in.)
1
1800 143JM
160475
41
575
1.3
82.5
14.85
1
1
/
2
3600 145JM
160476
39
575
1.7
82.5
14.85
1800 145JM
160477
44
575
1.8
84.0
15.35
2
3600 145JM
160478
42
575
2.3
84.0
15.35
1800 145JM
160479
43
575
2.6
84.0
15.35
3
3600 145JM
160480
45
575
3.7
85.5
15.85
1800 182JM
160276
113
575
3.4
87.5
18.68
1800 182JM
151658
113
575
3.4
85.5
18.68
5
3600 184JM
160278
120
575
4.8
87.5
18.68
3600 184JM
151662
120
575
4.8
84.0
18.68
1800 184JM
160280
120
575
5.3
87.5
18.68
1800 184JM
151660
120
575
5.3
84.0
18.68
7
1
/
2
3600 184JM
160282
147
575
7.6
88.5
18.68
3600 184JM
151666
147
575
7.6
85.5
18.68
1800 213JM
160284
249
575
7.4
89.5
20.17
1800 213JM
151664
249
575
7.4
87.5
20.17
10
3600 215JM
160286
172
575
9.5
89.5
21.67
3600 215JM
151670
172
575
9.5
85.5
21.67
1800 215JM
160288
180
575
9.8
89.5
21.67
1800 215JM
151668
180
575
9.8
86.5
21.67
15
3600 215JM
160290
197
575
14.4
90.2
21.67
3600 215JM
151674
197
575
14.4
89.2
21.67
1800 254JM
160292
284
575
14.8
91.0
25.29
1800 254JM
151672
284
575
14.8
90.2
25.29
20
3600 254JM
160294
322
575
19.2
90.2
25.29
3600 254JM
151678
322
575
19.2
89.5
25.29
1800 256JM
160296
337
575
19.2
91.0
27.00
1800 256JM
151676
337
575
19.2
91.7
27.00
25
3600 256JM
G151535
307
575
23.3
91.0
27.00
3600 256JM
151535
307
575
23.3
91.0
27.00
1800 284JM
G151419
370
575
23.6
92.4
27.17
1800 284JM
151419
370
575
23.6
92.4
27.17
30
3600 284JM
G151421
375
575
27.7
91.0
27.17
3600 284JM
151421
375
575
27.7
91.0
27.17
1800 286JM
G151423
428
575
28.0
92.4
28.74
1800 286JM
151423
428
575
28.0
92.4
28.74
40
3600 286JM
G151425
400
575
37.2
91.7
28.74
3600 286JM
151425
400
575
37.2
91.7
28.74
1800 324JM
G151427
528
575
38.0
93.0
31.33
1800 324JM
151427
528
575
38.0
93.0
31.33

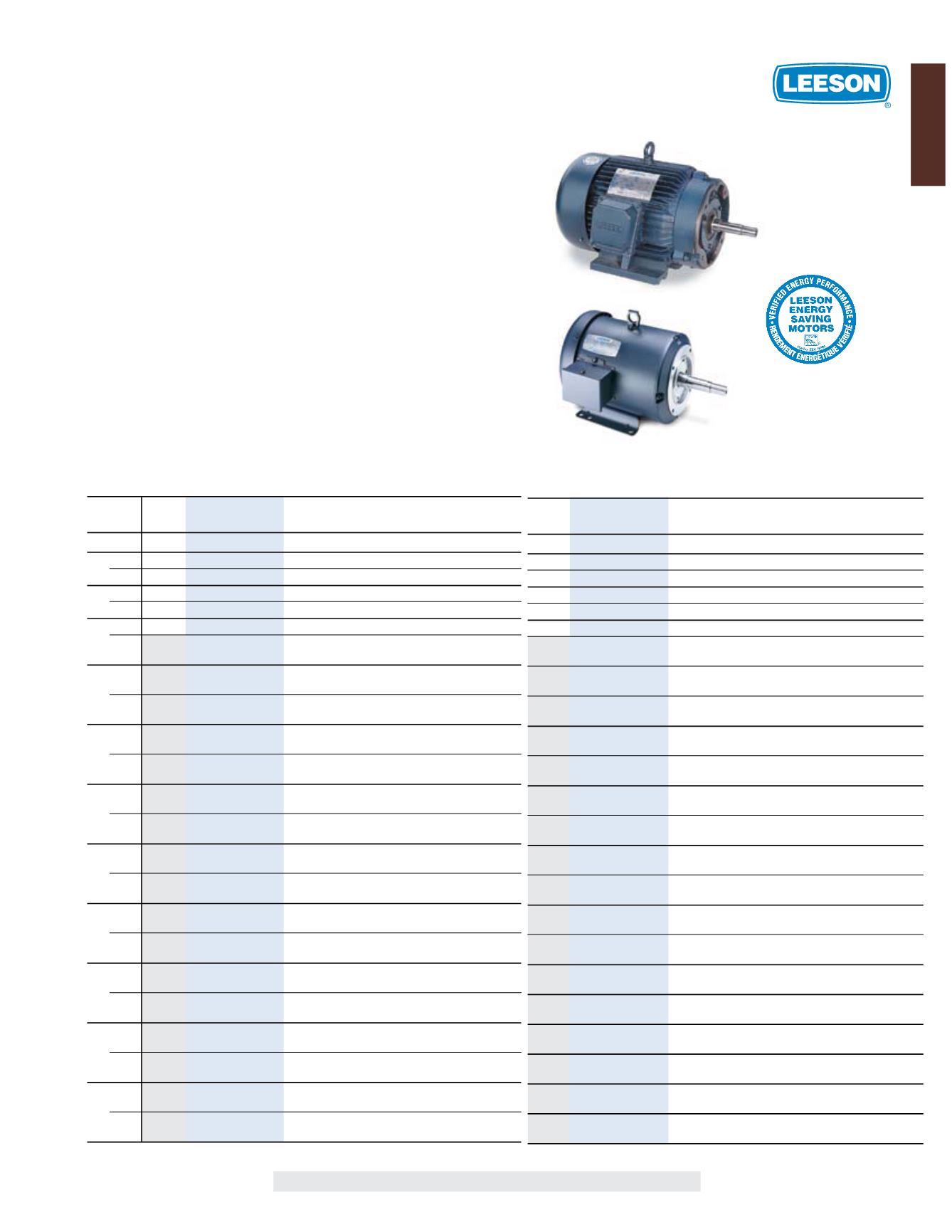

PUMP MOTORS
490% *- s 4/4!,,9 %.#,/3%$ &!. #//,%$
JM PUMP MOTORS
General Specifications:
Designed for continuous duty service on close-coupled pumps using
NEMA JM mounting provisions. All motors have a rigid mounting base
and NEMA JM pump shaft.
Mechanical Features:
Totally enclosed fan cooled construction for maximum life in dirty
or severe environments. Oversized locked bearing on shaft end
limits axial shaft movement. Drip covers are available as accessory
kits for 143-5JM and 182-4JM motors—see letter designations in
the table for the correct kit. LEESON 182-4JM frame motors have
ENCLOSED ENDSHIELDS AS STANDARD WITH FRAME VENTS MEETING THE
drip-proof requirement.
Electrical Features:
High efficiency copper windings with NEMA 1.15 service factors.
5, AND #3! RECOGNIZED DESIGNS
*NOTE - JM motors with “15” prefix are not suitable for inverter use
SHADED FRAME INDICATES CAST IRON CONSTRUCTION
