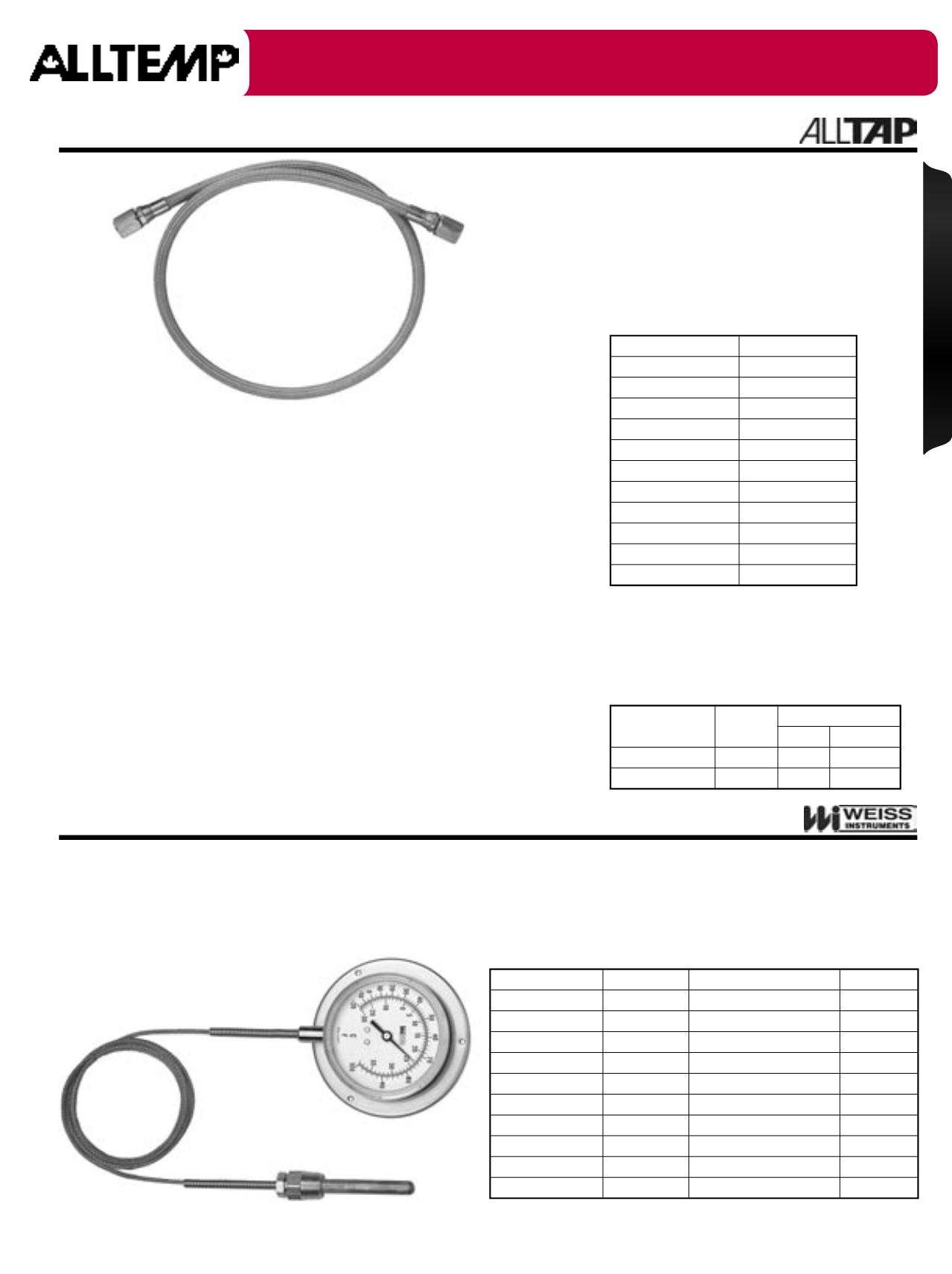

Refrigeration
Stainless Steel Lines
Stainless Steel Lines
Part #
Description
03-SD4-30-12
1/4" x 12"
03-SD4-30-24
1/4" x 24"
03-SD4-30-30
1/4" x 30"
03-SD4-30-36
1/4" x 36"
03-SD4-30-48
1/4" x 48"
03-SD6-32-12
3/8" x 12"
03-SD6-32-18
3/8" x 18"
03-SD6-32-27
3/8" x 27"
03-SD6-32-30
3/8" x 30"
03-SD6-32-36
3/8" x 36"
03-SD6-32-60
3/8" × 60"
Special lengths and sizes available upon request
Type SD Stainless Steel Lines
• Extruded core "smooth bore".
• Medium pressure.
• Heavy duty.
• The only line used and approved by major
commercial refrigeration manufacturers.
• Eliminates refrigerant loss from broken
capillary.
Construction Features:
The SD4 series is made from the best high molecular weight, low crystallinity, modified
PTFE resin. This means that the SD4 series has approximately
60 Times
the resistance
to flex fatigue than other hoses. The SD4 is also able to withstand far greater impulse
pressure loading, vibration at any frequency or amplitude, hot-cold cycling and continuous
high temperatures. Plus it has a greater dielectric strength and lower permeability.
Service Recommendations:
The SD4 series performs without surprises or disappointments even in the most severe
conditions in the medium pressure range. Accelerated aging tests and extensive field
experience show that SD4 series hoses may be safely regarded as virtually permanent
flexible connections when properly applied. If you’re looking for maximum freedom from
needless hose failure, look no further.
SD4 Hose Construction
Tube: Heavy wall, high molecular weight, low crystallinity, modified PTFE with exceptional
concentricity.
Reinforcement: Double braided stainless steel wire.
Available only as factory made and tested assemblies.
Hose Specifications
• Pressure ratings in PSI at 70°F (20°C).
• Maximum continuous operating temperature for
long life, 500°F (260°C).
• Additional details on request.
Connection
Nominal
ID
Pressure
Burst Operating
1/4" flare female 3/16" 12,000 4,000
3/8" flare female 5/16" 10,000 3,300
03-SD4-30-30
Illustrated
Union Connected Dial Thermometers
Part #
Dial Size
Range
Capillary
14-35BL-060
3 1/2"
-40 to 0 to 60°F & °C
5'
14-35BL-110
3 1/2"
-40 to 0 to 110°F & °C 5'
14-35BL-100
3 1/2"
-20 to 0 to 100°F & °C 5'
14-35BL-180
3 1/2"
0 to 180°F & °C
5'
14-35BL-240
3 1/2"
40 to 240°F & °C
5'
14-45BL-060
4 1/2"
-40 to 0 to 60°F & °C
5'
14-45BL-110
4 1/2"
-40 to 0 to 110°F & °C 5'
14-45BL-100
4 1/2"
-20 to 0 to 100°F & °C 5'
14-45BL-180
4 1/2"
0 to 180°F & °C
5'
14-45BL-240
4 1/2"
40 to 240°F & °C
5'
* Also available with back outlet, specify 14-35BB or 14-45BB
Union Connected Dial Thermometers
Union Connected Dial Thermometers
Offered in 3 1/2" and 4 1/2" dial sizes the BL series is furnished with braided copper capillary and a 1/2" NPT brass
union connection. Sensor bulb insertion is 2 5/8" below the mounting thread. Case configuration is stainless steel
back flange type for wall or surface mounting, capillary outlet at case bottom*. The BL series construction is well
suited to applications such as hot and chilled pipeline systems, tanks, coolers and air ducts.
14-45BL-100
Illustrated
Steel Lines &Thermometers
