2 1/2" Dial Manifold
Part # Range (in. hg) Refrigerant Scale Case Accuracy
14-RG25-120 -30 to 0 to 120 PSI R12, R22, R502 ABS
- Colour
ANSI Grade B
2% Mid Scale 14-RG25-500 0 to 500 PSI
2 1/2" Dial Manifold Liquid Filled
Part # Range (in. hg) Refrigerant Scale Case Accuracy
14-RGLF-120 -30 to 0 to 120 PSI R12, R22, R502 ABS
- Colour
ANSI Grade B
2% Mid Scale 14-RGFL-500 0 to 500 PSI
2 1/2" Dial Liquid Filled Front Flange
Part # Range (in. hg) Refrigerant Scale Case Accuracy
14-LF25-V150 -30 to 0 to 150 PSI
- Stainless
Steel
ANSI Grade B
2% Mid Scale
14-LF25-V300 -30 to 0 to 300 PSI
14-LF25-0300 0 to 300 PSI
14-LF25-0600 0 to 600 PSI
2 1/2" Dial Liquid Filled Lower Mount
Part # Range (in. hg) Refrigerant Scale Case Accuracy
14-LF25LMV60 -30 to 0 to 60 PSI
- Stainless
Steel
ANSI Grade B
2% Mid Scale
14-LF25LMV100 -30 to 0 to 100 PSI
14-LF25LMV150 -30 to 0 to 150 PSI
14-LF25LM150 0 to 150 PSI
14-LF25LM160 0 to 160 PSI
14-LF25LM200 0 to 200 PSI
14-LF25LM300 0 to 300 PSI
14-LF25LM600 0 to 600 PSI
3 1/2" Dial Back Flange
Part # Range (in. hg) Refrigerant Scale Case Accuracy
14-RG35-V150 -30 to 0 to 150 PSI
R12, R22, R502 Stainless
Steel
ANSI Grade A
1% Mid Scale
14-RG35-V300 -30 to 0 to 300 PSI
14-RG35-0300 0 to 300 PSI
14-RG35-0500 0 to 500 PSI
4 1/2" Dial Turret
Part # Range (in. hg) Refrigerant Scale Case Accuracy
14-4RG-150 -30 to 0 to 150 PSI R12, R22, R502 Phenolic ANSI Grade A
1% Mid Scale 14-4RG-300 -30 to 0 to 300 PSI

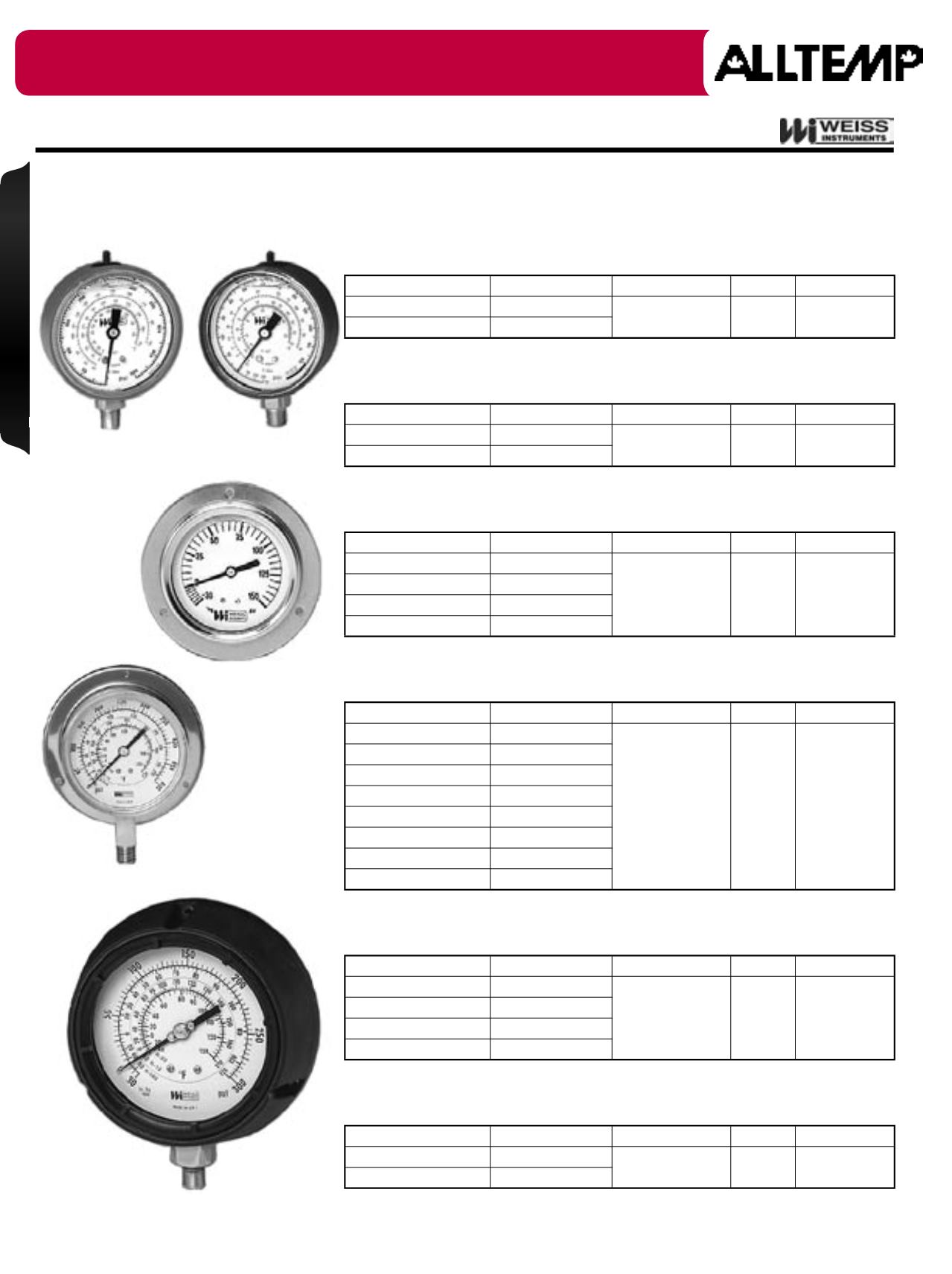

Refrigeration Gauges
These gauges are designed for the pressure measurement of refrigeration systems. All dials are furnished with
corresponding temperature scales for the various refrigerants shown below. Standard connections are 1/8" NPT
bottom for manifold gauges and 1/4" NPT for all other versions.
Refrigeration Gauges
14-RGLF-500
Illustrated (Red)
14-RGLF-120
Illustrated (Blue)
14-LF25-V150
Front Flange
14-RG35-0500
Lower Mount
14-4RG-300
Illustrated
