Refrigeration

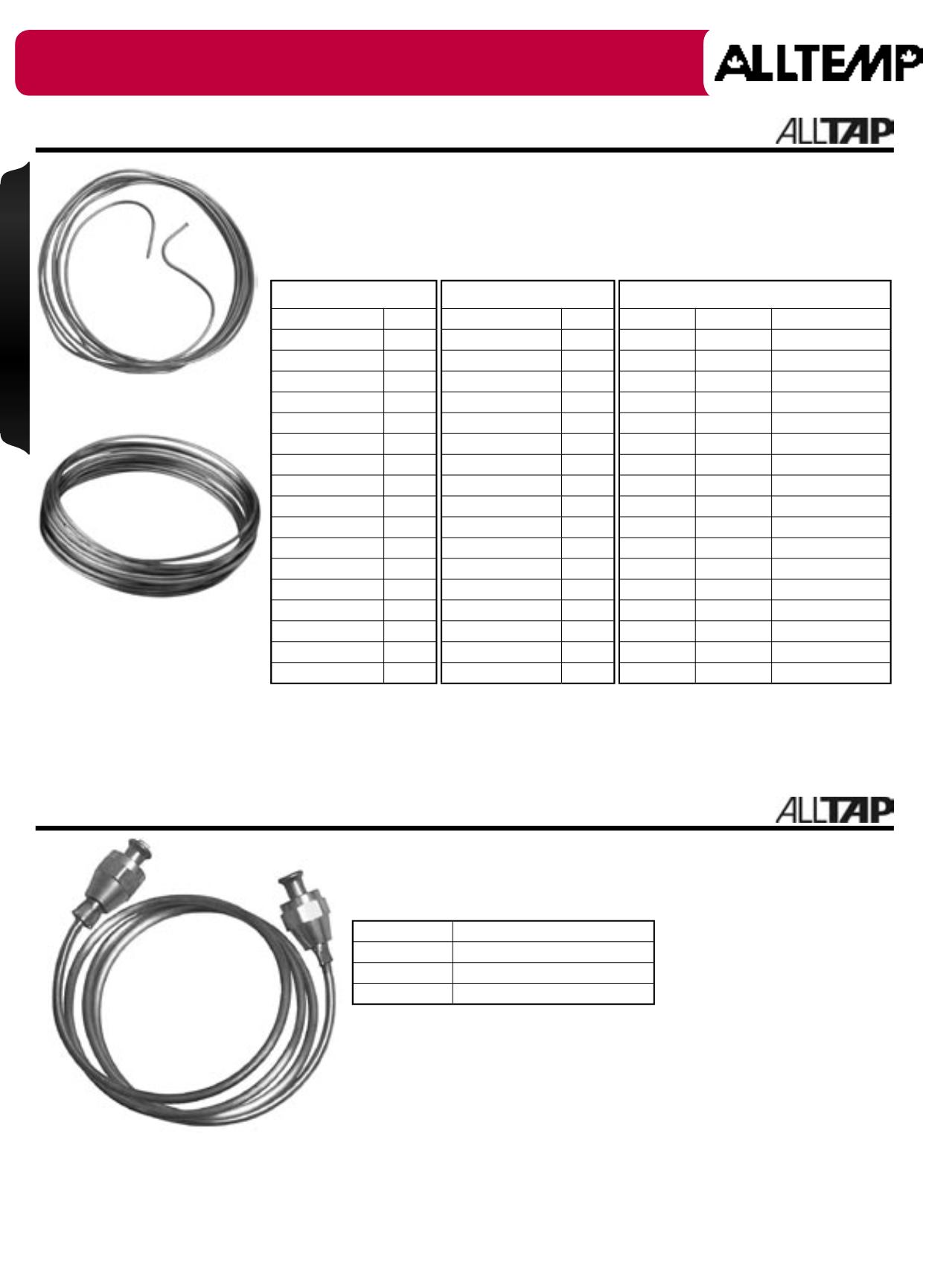

Copper Capillary Tubing
• Plug-drawn, sealed and dehydrated soft copper tubing.
• Commercial tolerance of ±0.001".
• Manufactured to ASTM B360-88.
• Short Coils - Packaged in clear plastic bags.
• 100' Coils - Individually boxed with conversion and application charts enclosed.
Short Coils
100' Rolls
Specifications
Part #
Length
Part #
Length I.D.
O.D.
Description
09-TC-26-16
16'
09-TC-26-100
100'
0.026" ID 0.072" OD BC-5, GC-5
09-TC-31-12
12'
09-TC-31-100
100'
0.031" ID 0.083" OD BC-1, GC-1
09-TC-36-12
12'
09-TC-36-100
100'
0.036" ID 0.087" OD GC-6
09-TC-42-12
12'
09-TC-42-100
100'
0.042" ID 0.093" OD BC-2, GC-2
09-TC-44-10
10'
09-TC-44-100
100'
0.044" ID 0.109" OD
09-TC-49-11
11'
09-TC-49-100
100'
0.049" ID 0.099" OD BC-3, GC-3, GC-7
09-TC-50-10
10'
09-TC-50-100
100'
0.050" ID 0.114" OD
09-TC-54-11
11'
09-TC-54-100
100'
0.054" ID 0.106" OD GC-8
09-TC-55-10
10'
09-TC-55-100
100'
0.055" ID 0.125" OD
09-TC-59-10
10'
09-TC-59-100
100'
0.059" ID 0.112" OD
09-TC-64-10
10'
09-TC-64-100
100'
0.064" ID 0.125" OD BC-4, GC-4
09-TC-70-12
12'
09-TC-70-100
100'
0.070" ID 0.125" OD GC-9
09-TC-75-9
9'
09-TC-75-100
100'
0.075" ID 0.125" OD GC-10
09-TC-80-10
10'
09-TC-80-100
100'
0.080" ID 0.145" OD GC-11
09-TC-85-9
9'
09-TC-85-100
100'
0.085" ID 0.145" OD GC-12
09-TC-90-7
7'
09-TC-90-100
100'
0.090" ID 0.145" OD
09-TC-100-10
10'
09-TC-100-100
100'
0.100" ID 0.156" OD
Copper Capillary Tubing & Connections
• Factory made double flare connections, used in such ways
as an external equalizer tube on an expansion valve.
• 36" capillary tube with 1⁄4" swivel female connections
Part #
Description
02-CD2540
No depressor tips.
02-CD2541
Depressor tip at one end.
02-CD2542
Depressor tip at both ends.
Capillary Tubing
09-TC-36-12
Short Coil
Illustrated
02-CD2540
Illustrated
09-TC-36-100
100' Coil
Illustrated
Capillary Tubing & Connections
Capillary Tubing
