Refrigeration

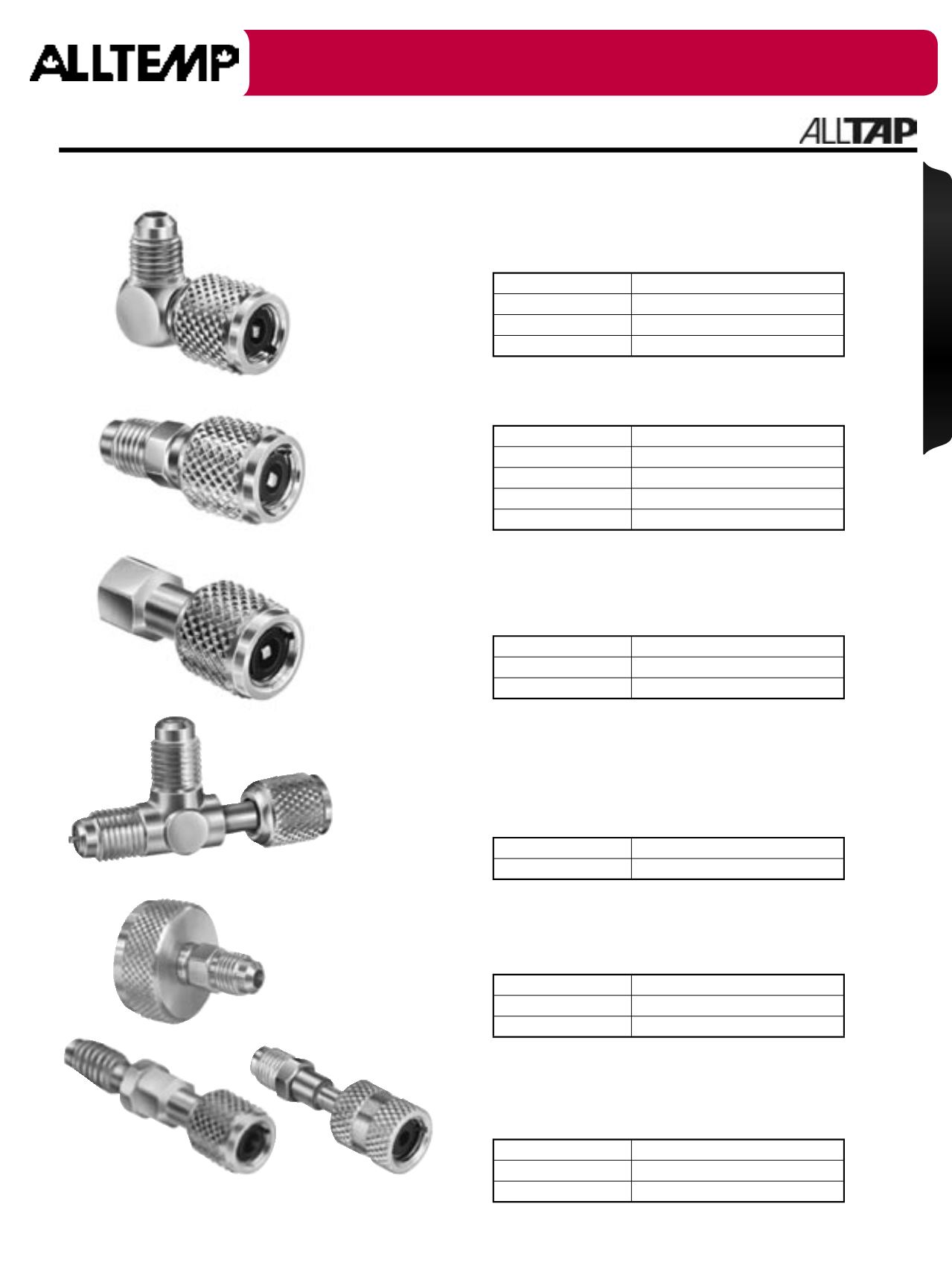

Quick Couplers
• 3/16" and 1/4" coupler with valve core depressor, safety channels and
rubber gasket seal
• 3/8" couplers with patented O-ring seal for deep vacuum. No depressor
45° Elbow Quick Couplers
Part #
Description
02-CQC-E3
3/16" QC x 1/4" SAE elbow
02-CQC-E4
1/4" QC x 1/4" SAE elbow
02-CQC-E64
*
3/8" QC x 1/4" SAE elbow
*no depressor
Straight Quick Couplers
Part #
Description
02-CQC-S3
3/16" QC x 1/4" SAE straight
02-CQC-S4
1/4" QC x 1/4" SAE straight
02-CQC-S46
1/4" QC x 3/8" SAE straight
02-CQC-S64
*
3/8" QC x 1/4" SAE straight
*no depressor
FPT Thread Quick Couplers
• Use 02-QC-S4A with M2-250 and M2-500
gauges.
Part #
Description
02-CQC-S4A
1/4" QC x 1/8" FPT straight
02-CQC-S4B
1/4" QC x 1/4" FPT straight
Quick Coupler Access Tee
• O-ring seal quick coupler.
• Furnished with cap and one valve core.
• Use with 04-SH31 residential air
conditioning gauge for charging hook-up.
Part #
Description
04-A34000
1/4" QC × 1/4" access fitting.
Swivel Cylinder Valves
• Finger tight seal.
• Includes gasket.
Part #
Description
02-CV-20004
3/4" NPS × 1/4" male flare.
02-CV-20006
3/4" NPS × 3/8" male flare.
134a Automotive Quick Couplers
• Retrofit existing SAE flare fitting for 134a
auto service.
Part #
Description
02-QCS4A-134
1/4" QC x 1/2" male Acme thread
02-13445-134
1/2" Acme QC x 1/4" male flare
Quick Coupler Access & Service Valves
02-QCS4A-134
Illustrated
02-13445-134
Illustrated
02-CV-20004
Illustrated
02-A34000
Illustrated
02-QC-E3
Illustrated
02-QC-S3
Illustrated
02-QC-S4A
Illustrated
Access Fittings
