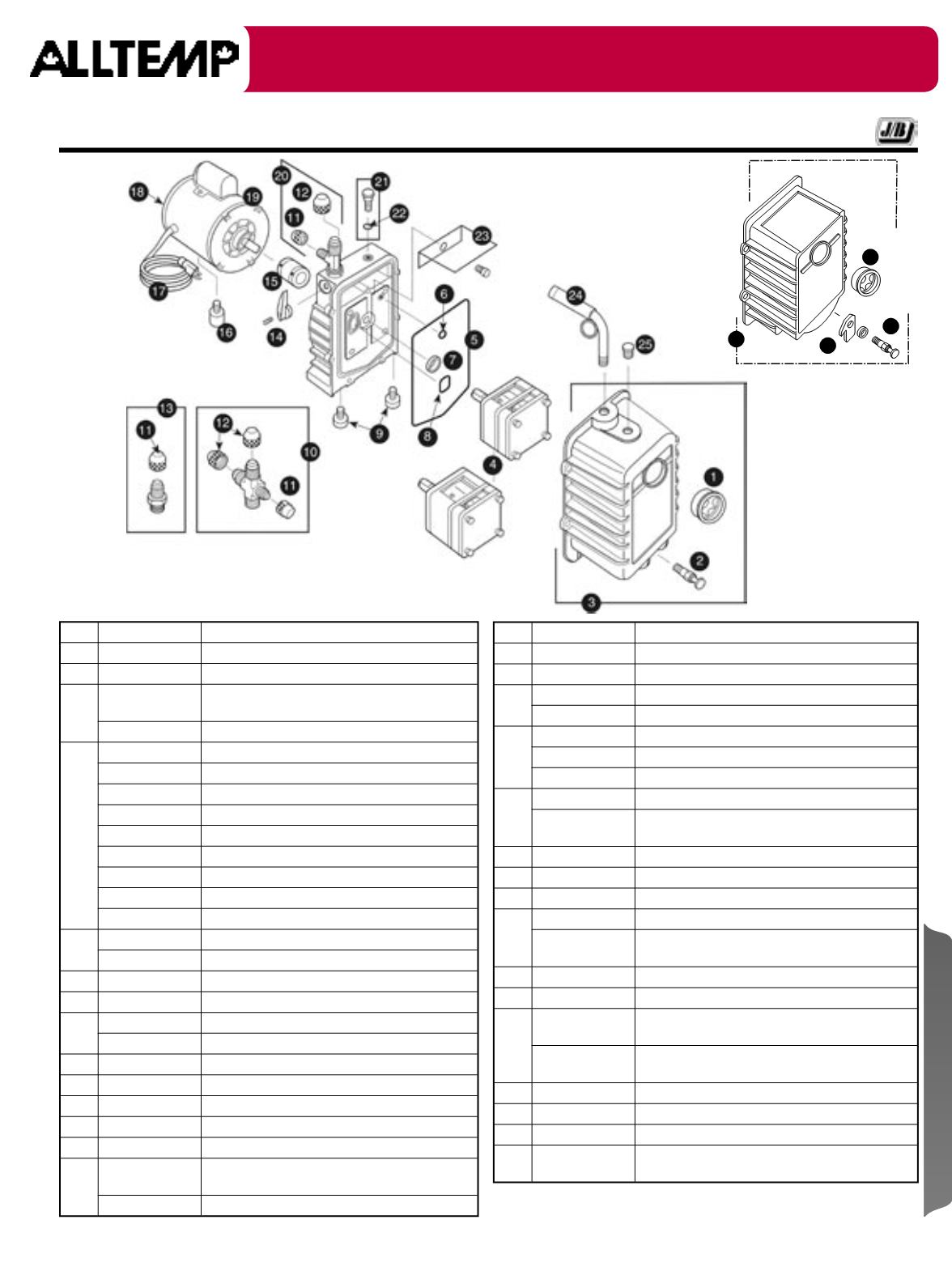

Vacuum Pump Repair Parts
05-DV42N through DV285V Series Pump Repair Parts
Manufactured after January 2001.
Ref.
Part #
Description
1
05-PR-1
Sight glass.
2
05-PR-2
Drain valve.
3
05-PR-300
DV-42N through DV-200N cover assy. w/sight glass
and drain valve.
05-PR-301
DV-285N cover assy. w/sight glass and drain valve.
4
05-PR-202
DV-85N cartridge w/o-ring and cover seal.
05-PR-203
DV-142N cartridge w/o-ring and cover seal.
05-PR-204
DV-200N cartridge w/o-ring and cover seal.
05-PR-214
DV-285N cartridge w/o-ring and cover seal.
05-PR-305
DV-42N cartridge w/o-ring and cover seal.
05-PR-302
DV-85N cartridge w/o-ring and cover seal.
05-PR-303
DV-142N cartridge w/o-ring and cover seal.
05-PR-304
DV-200N cartridge w/o-ring and cover seal.
05-PR-314
DV-285N cartridge w/o-ring and cover seal.
5
05-PR-216
Cover seal.
05-PR-311
Cover seal.
6
05-PR-211
Trap o-ring, gas ballast.
7
05-PR-3
Shaft seal.
8
05-PR-215
Trap o-ring, intake.
05-PR-315
Trap o-ring, intake.
9
05-PR-4
Rubber foot & screw assy. (1/ pkg.)
10
05-PR-24
Intake cross with caps.
11
02-NFT5-4
1/4" o-ring caps.
12
02-NFT5-6
3/8" o-ring caps.
13
05-PR-32
1/4" intake with cap.
14
05-PR-209
Plastic isolation valve handle & screw (not
interchangeable with metal handle below).
05-PR-210
Metal isolation valve handle & screw.
Ref.
Part #
Description
15
05-PR-208
Flexible coupler.
16
05-PR-42
Motor foot & screw.
17
05-PR-31
Line cord (Emerson motor).
05-PR-33
Line cord (Marathon motor).
18
05-PR-30
Rocker switch (Marathon).
05-PR-35
Rocker switch (Marathon after 1101).
05-PR-54
Rocker switch (Emberson).
19
05-PR-206
1/2 HP, 115V, 60 Hz motor w/line cord & switch.
05-PR-207
1/2 HP, 115/230V, 50/60 Hz motor w/line cord &
switch.
20
05-PR-5
Intake tee with caps.
21
05-PR-7
Gas ballast valve w/o-ring.
22
05-P90009
O-ring, gas ballast valve.
23
05-PR-39
3 CFM splash guard and screw.
05-PR-40
Splash guard & screw (excludes 3 CFM
manufactured before Jan 2001).
24
05-PR-205
Cushioned handled w/ lift loop.
25
05-PR-22
Oil fill plug w/o-ring.
26
05-PR-200
DV-85N cover assy. w/sight glass, drain valve &
guard
05-PR-201
DV-142N & DV-200N cover assy. w/sight glass, drain
valve and guard.
27
05-PR-55
Drain valve guard and spacer.
05-PR-18
Cartridge valve repair kit (excludes DV-285N).
05-PR-52
DV-285N cartridge valve repair kit.
05-PR-45
Pump repair kit: PR-1, PR-2, (2) PR-4, PR-42,
PR-208.
Not shown
