Vacuum Pump Repair Parts

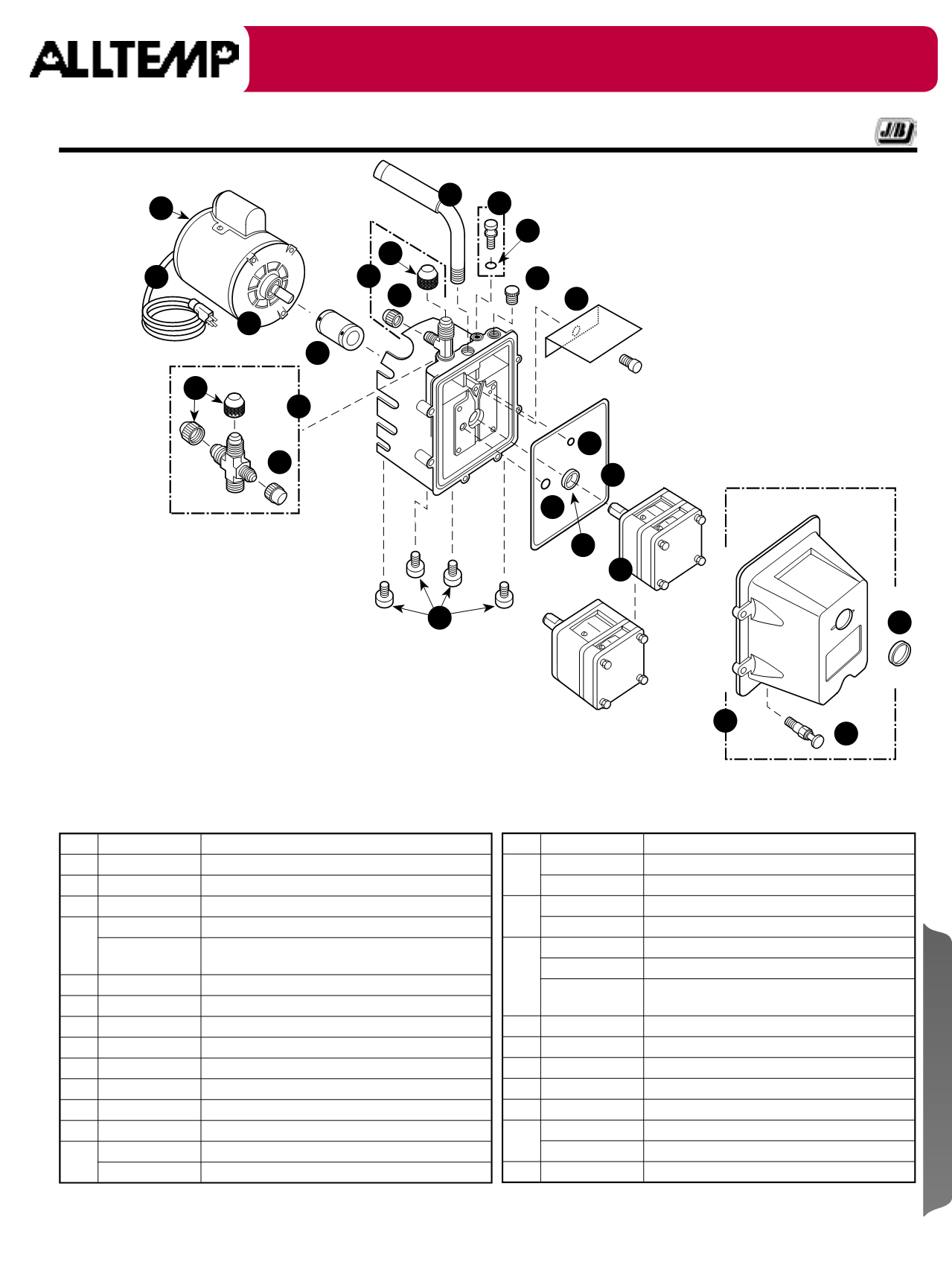

05-DV3, DV5 & DV127 Series Pump Repair Parts
Manufactured 1992 to December 2000.
(DV127 manufactured 1982 to April 1988).
Ref.
Part #
Description
1
05-PR-8
Sight glass*.
2
05-PR-2
Drain valve*.
3
05-PR-10
Cover assembly, includes sight glass and drain valve.
4
05-D10086
DV-3 cartridge complete w/o–rings and cover seal.
05-D10128
DV-5/DV-127 cartridge complete w/o–rings and cover
seal.
5
05-PR-216
Cover seal.
6
05-PR-12
O-ring.
7
05-PR-3
Shaft seal.
8
05-P90015
O-ring.
9
05-PR-4
Rubber foot & screw assy. (1/ pkg.).
10
05-PR-24
Intake cross with caps.
11
02-NFT5-4
1/4 O-ring cap.
12
02-NFT5-6
3/8 O-ring cap.
13
05-PR-6
Flexible coupler*.
05-PR-53
Flexible coupler* (-250 models after serial # 0198).
Ref.
Part #
Description
14
05-PR-206
1/2 HP, 115V, 60 Hz motor w/line cord and switch.
05-PR-207
1/2 HP, 115/230V, 50/60 Hz motor complete.
15
05-PR-31
Line Cord (Emerson motor).
05-PR-33
Line Cord (Marathon motor).
16
05-PR-14
115V motor toggle switch.
05-PR-30
115V motor switch-rocker (Marathon motor).
05-PR-54
115/230V motor switch-rocker (Emerson motor
after serial # 0198).
17
05-PR-5
Intake tee* with caps.
18
05-PR-23
DV-3 & 5 handle w/cushioned grip.
19
05-PR-7
Gas ballast w/o-ring assy.
20
05-P90009
O-ring, gas ballast.
21
05-PR-22
DV-3/DV-5 oil fill plug w/O-ring.
22
05-PR-39
DV-3 splash guard w/screw.
05-PR-40
DV-5/127 splash guard w/screw.
♦
05-PR-18
Cartridge valve repair kit.
♦
Not shown
*Coat threads with thread sealant when replacing.
