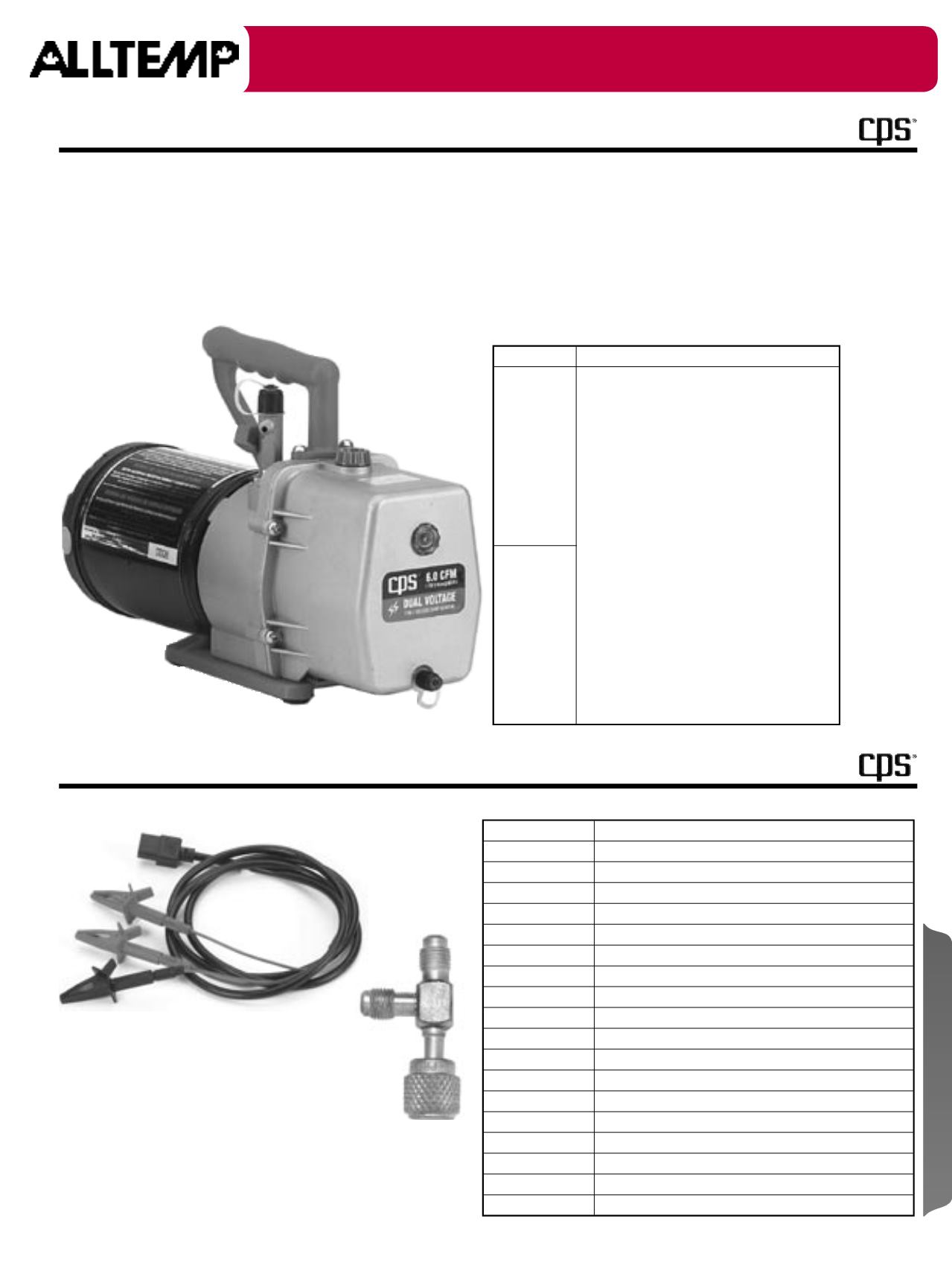

Service Tools
CPS Vacuum Pump Replacement Parts
Part #
Description
46-VPXJ220
220 Volt jumper kit.
46-VPX4RK
Rebuild kit for 46-VP4.
46-VPX6RK
Rebuild kit for 46-VP6.
46-VPXPH
Pump handle.
46-VPXPG
Gas ballast valve.
46-VPXOF
Oil fill port.
46-VPXOS
Oil sightglass.
46-VPXOC
Oil drain cap.
46-VPXPB
Molded base.
46-VPXPR
Aluminum reservoir housing.
46-VPXMF
Motor flange.
46-VPXM4
1/3 HP motor with thermal overload protector.
46-VPXM6
1/2 HP motor with thermal overload protector.
46-VPXPV
Valve with 1/4" flare and 1/2" ACME ports.
46-VPXEP
Electrical switch plate.
46-VPXPC
1/4" plastic caps with strap.
46-VPXC12
1/2" plastic caps with strap.
46-AVT48
Vacuum pump tee adapter (1/4" × 1/4" × 1/2" Acme).
Vacuum Pumps - Dual Voltage
Dual Stage Vacuum Pumps
Part #
Specification
46-VP4
1/3 HP
• Free Air Displacement
- 46-VP4 (4.0 CFM)
- 46-VP6 (6.0 CFM)
• Stages: 2
• Motor
- 46-VP4 (1/3 HP)
- 46-VP6 (1/2 HP)
• Frequency: 50/ 60 Hz
• RPM: 1440 (@50Hz) 1730 (@60Hz)
• Voltage: 110/ 220 VAC
• Internal Start Capacitor
• Thermal Overload Protector
• Intake: 1/4" SAE & 3/8" SAE
• Oil Capacity: 0.24 Gallon
• Dimensions: 16.93"L × 5.71"W × 10.43"H
• Shipping Weight
- 46-VP4 (29.76 lbs)
- 46-VP6 (30.20 lbs)
46-VP6
1/2 HP
46-VP6
Illustrated
PRO-SET® Dual Stage Vacuum Pumps
Dual voltage design vacuum pump operates on 110 VAC or 220 VAC. Heavy
duty high torque motor for easy startup & efficient operation. Advanced two
stage rotary vane design pulls deep vacuum fast to 15 microns. Gas ballast
speeds evacuation and keeps oil cleaner. A blank-off valve used to isolate
pump from the system. Pump is completely field serviceable. Able to tap into
rooftop power with an optional 220V jumper cable (46-VPXJ220).
46-VPXJ220
Illustrated
Vacuum Pump Accessories & Replacement Parts
46-AVT48
Illustrated
Vacuum Pumps
