Service Tools

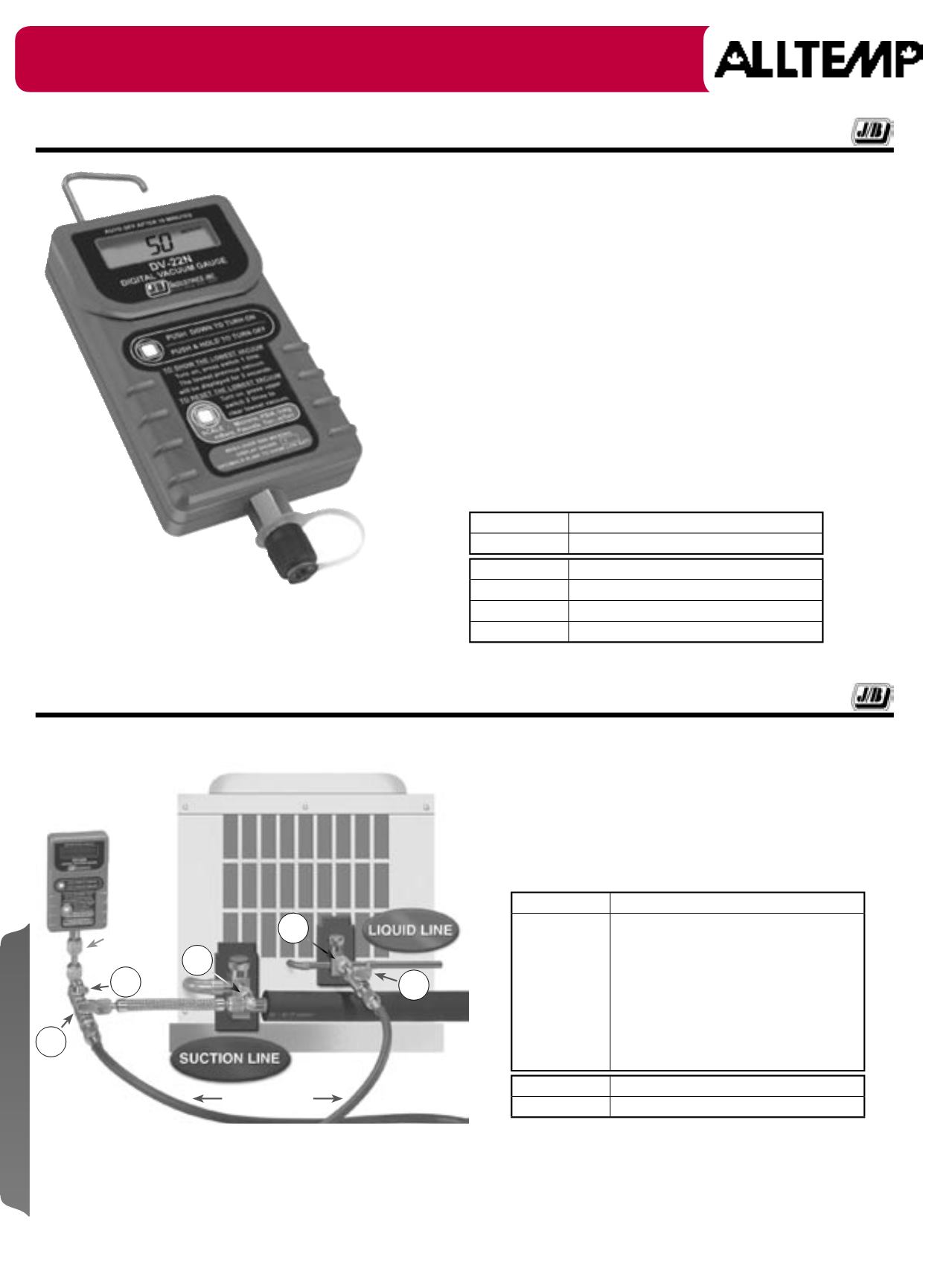

Digital Vacuum Gauge
Digital Vacuum Gauge - Hand Held Model
• Simple two button operation.
• Protected sealed touch buttons.
• Accurate display from 25 to 12,000 microns.
• Reads vacuum in 7 international units: micron, PSIA, InHg, mBars,
Pascal's, Torr, mTorr.
• Digital display with solid state circuitry.
• Solid state design - no adjustment necessary for temperature.
• NIST traceable.
• Saves last vacuum readout after shutdown.
• Retractable hanging hook.
• Uses one 9 volt battery (not included).
• Low battery indicator.
• Automatic power off battery saver (10 minute).
• 300 psi maximum pressure.
• 0°C to 48.9°C (32°F to 120°F) ambient temperature.
05-DV22
Illustrated
50 to 250 microns, ±15% average accuracy.
250 to 6,000 microns, ±10% average accuracy.
Digital Vacuum Gauge - Hand Held Model
Part #
Description
05-DV22
Hand held digital vacuum gauge.
Part #
Description
05-DV24
05-DV22 with protective carrying case.
05-DV26
Protective carrying case for 05-DV22.
05-D10244
1/4" SAE swivel o-ring coupler.
Digital Micron Gauge Blankoff Test Unit
Micron Gauge Blankoff Test Unit
• The most accurate reading is obtained at the high and
low side of system.
• Deep vacuum has its own unique properties which
requires leak-proof design in all the components
including couplers and hoses.
Digital Micron Gauge Blankoff Test Unit
Part #
Description
05-DV29
Kit includes:
• Ball valve with o-ring coupler with core
depressor.
• 10" metal hose with o-ring couplers.
• 90° male flare with o-ring coupler with
core depressor.
• (2) ball valve unit with 90° SAE elbow.
• 05-D10244 sold separately.
Part #
Description
05-D10244
1/4" female swivel coupler.
A.
Valve to micron gauge (close valve when charging).
B.
Valve to system.
C.
O-ring quick couplers with depressor.
D.
Valve to system.
Hoses to manifold.
A
B
C
C
D
05-DV22
Vacuum
Gauge
05-D10244
(sold separately)
Vacuum Gauges
