Vacuum Pump Repair Parts
When ordering replacement
parts please provide the
following information:
- Model #
- Four digit serial #
- Part # and description

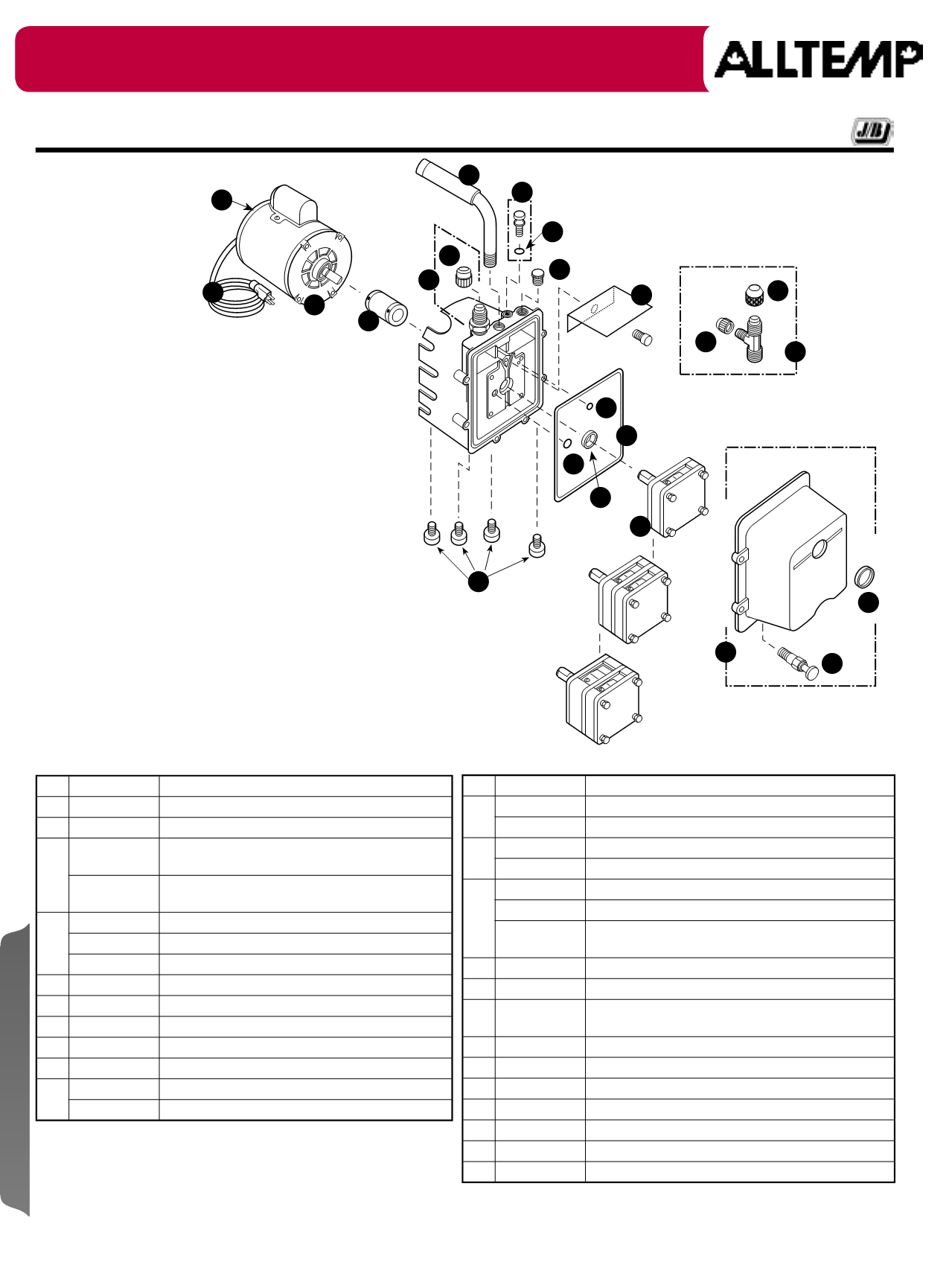

05-DV42, DV-42N & DV85C Series Pump Repair Parts
Manufactured February 1988 to December 2000.
Ref.
Part #
Description
1
05-PR-1
DV-85C & DV-42 Sight Glass*.
2
05-PR-2
Drain valve*.
3
05-PR-9
DV-85C & DV-42 cover assy. Includes sight glass and
drain valve.
05-PR-44
DV-42N cover assy. Includes sight glass and drain
valve.
4
05-D10043
DV-42 cartridge complete w/o–rings and cover seal.
05-D10086
DV-85C cartridge complete w/o–rings and cover seal.
05-PR-212
DV-42N cartridge complete w/o-rings and cover seal.
5
05-PR-216
Cover seal.
6
05-PR-12
O-ring.
7
05-PR-3
Shaft seal.
8
05-P90015
O-ring.
9
05-PR-4
Rubber foot & screw assy. (1/ pkg.).
10
05-PR-6
Flexible coupler*.
05-PR-53
Flexible coupler* (-250 models after Serial # 0198).
Ref.
Part #
Description
11
05-PR-207
1/2 HP, 115/230V, 50/60 Hz motor w/line cord & switch.
05-PR-206
1/2 HP motor w/line cord & switch.
12
05-PR-31
Line cord (Emerson motor).
05-PR-33
Line cord (Marathon motor).
13
05-PR-14
Motor switch–toggle.
05-PR-30
Motor switch–rocker (Marathon motor).
05-PR-54
115/230V motor switch-rocker (Emerson motor after
serial #0198).
14
05-PR-32
DV-42 Intake* with cap.
15
02-NFT5-4
1/4" O-ring cap.
16
05-PR-23
DV-42 New style handle and comfort grip complete - 3/8
nipple.
17
05-PR-7
Gas ballast w/O-ring assy.
18
05-P90009
O-ring, gas ballast.
19
05-PR-22
Oil fill plug w/o-ring for newer style DV-42.
20
05-PR-39
DV-42 and DV-85C splash guard with screw.
21
05-PR-5
DV-85C intake tee* with caps.
22
02-NFT5-6
3/8" O-ring cap.
♦
05-PR-18
Cartridge valve repair kit.
♦
Not shown
*Coat threads with thread sealant when replacing.
