Mounting Bases
Part #
"T" Frame
Converts
To "U"
Frame
(OAHT)
Height
A B C D E F G H K L M N P
92-1814T
143T/145T 182/184
1
1/2 4 1/2 5 1/2 4 5 3/4 1 1/2 2 1/4 7 1/2 3 3/4 7/16 5/16 - 18
92-2118T
182T/184T 213/215
3/4
1 5 1/2 7 4 1/2 5 1/2 1 1/2 5/8 1 7/8 9 1/2 4 1/4 7/16 3/8 - 16
92-25U21T
213T/215T 254U/256U 1 1 1/8 8 1/4 10 5 1/2 7 1 3/4 3/4 2 1/2 13 5 9/16 3/8 - 16
92-28U25T
254T/256T 284U/286U 3/4 1 3/8 9 1/2 11 8 1/4 10 1 1/4 1/2 3/4 2 1/2 14 1/2 5 1/2 9/16 1/2 - 13
92-32U28T
284T/286T 324U/326U 1 1 1/2 10 1/2 12 9 1/2 11 1 1/2 3/4 3/4 3 16 6 1/4 11/16 1/2 - 13
92-36U32T
324T/326T 364U/365U 1 1 3/4 11 1/4 12 1/4 10 1/2 12 1 3/4 3/4 3/4 3 1/2 16 3/4 7 11/16 5/8 - 11
92-40U36T
364T/365T 404U/405U 1
2 12 1/4 13 3/4 11 1/4 12 1/4 2 1 1 1/4 4 18 3/4 8 13/16 5/8 - 11
92-44U40T
404T/405T 444U/445U 1 2 1/4 14 1/2 16 1/2 12 1/4 13 3/4 2 1/4 1 1 1/4 4 22 9 13/16 3/4 - 10

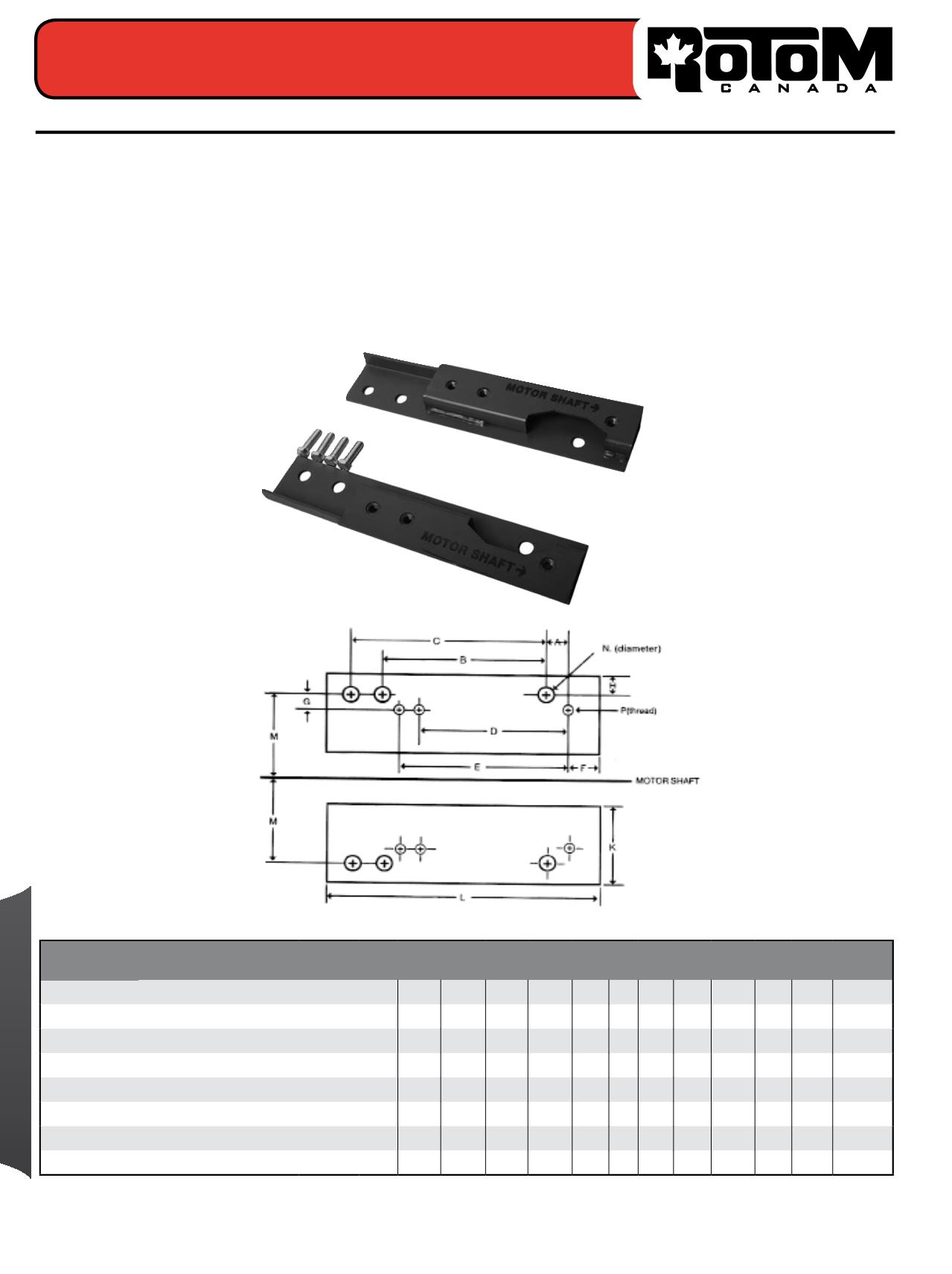

Transition Bases (Adapters)
A transition base inserted under the motor feet (one on each side) will allow you to copensate for the
difference in the mounting dimensions and shaft height of a rigid base “T" Frame to the next higher “U"
Frame. It hase the same heavy duty fabrication as the slide rails. For horizontal mounting only. Shimming
may be necessary for direct coupled loads. Thread size shown is for mounting base to the “T" Frame
motor. Dimensions listed are for one piece - two are supplied
