USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Submersible Effluent Pumps
11
B
Professional Plumbing
6/10
Testing is performed with
water specific gravity of 1.0
@ 68˚F (20˚C), other fluids
may vary performance

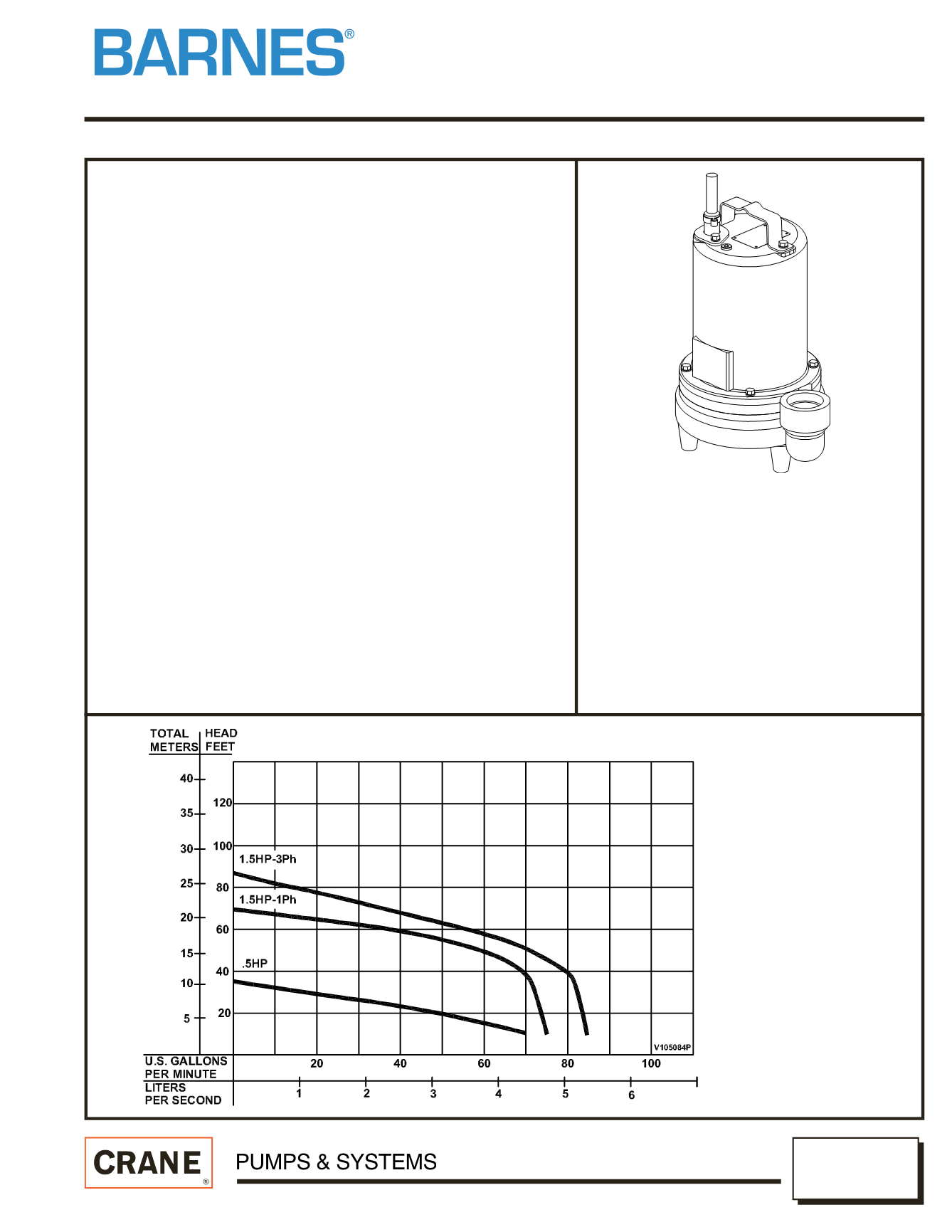

Series EH-HT
3/4" Spherical Solids Handling
Single Seal, High Temperature
Series: EH-HT
.5 - 1.5 HP, 3450RPM, 60Hz
DESCRIPTION:
PUMP IS DESIGNED FOR HANDLING SEWAGE
EFFLUENT IN
HIGH TEMPERATURE
SEPTIC
TANK/EFFLUENT APPLICATIONS
DISCHARGE ...................................
2” NPT, Female, Vertical
LIQUID TEMPERATURE ................
200°F (93°C) Continuous
VOLUTE.............................................
Cast Iron ASTM A-48, Class 30
MOTOR HOUSING ............................
Cast Iron ASTM A-48, Class 30
SEAL PLATE ....................................
Cast Iron ASTM A-48, Class 30
IMPELLER:
Design
......................
3 Vane, open, with pump out vanes on
back side. Dynamically balanced, ISO G6.3
Material
.....................
Cast Iron ASTM A-48, Class 30
SHAFT
..............................................
416 Stainless Steel
SQUARE RINGS................................
Buna-N
HARDWARE ......................................
300 Series Stainless Steel
PAINT .................................................
Air Dry Enamel
SEAL:
Design
.......................
Single Mechanical
Material
......................
Carbon/Ceramic/Buna-N
Hardware -300 Series Stainless
CORD ENTRY....................................
15 ft. (5m) Cord with plug on 120 volt &
.5HP, 240 volt, 1 phase. Quick connect
custom molded for sealing and strain relief
UPPER BEARING..............................
Single Row, Ball, Oil lubricated
LOWER BEARING.............................
Single Row, Ball, Oil lubricated
MOTOR:
Design
.......................
NEMA L -Single Phase, NEMA B -Three phase
Torque Curve, Oil Filled, Squirrel Cage Induction
Insulation
....................
Class B
SINGLE PHASE:
.5HP, 120Volt
..............
Split Phase. Includes overload protection in motor
.5HP, 240Volt
..............
Capacitor Start, Induction Run
Includes Overload Protection in Motor
1.5HP
.........................
Permanent Split Capacitor (PSC)
Includes Overload Protection in Motor
THREE PHASE..................................
200-240/480 is Tri-Voltage. 600V. Requires
Overload Protection to be included in control panel
OPTIONAL EQUIPMENT ................
Seal Material, Impeller Trims, Additional cord,
Normally Closed Temperature Sensors with
cord for 3 phase pumps (Requires relay in
control panel).
ACCESSORIES .................................
Break Away Fitting (BAF)
Check Valve
Control Panel
