Submersible Non-Clog Pumps
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598 A Crane Co. Company
38
C
www.cranepumps.com
Professional Plumbing
Series 3SE-HD
2½" Spherical Solids Handling
Heavy Duty, Single Seal
IMPORTANT !
1.) PUMP MAY BE OPERATED “DRY” FOR EXTENDED PERIODS WITHOUT DAMAGE TO MOTOR AND/OR SEALS.
2.) THIS PUMP IS APPROPRIATE FOR THOSE APPLICATIONS SPECIFIED AS CLASS I DIVISION 2 HAZARDOUS LOCATIONS.
3.) THIS PUMP IS NOT APPROPRIATE FOR THOSE APPLICATIONS SPECIFIED AS CLASS I DIVISION 1 HAZARDOUS LOCATIONS.
4.) INSTALLATIONS SUCH AS DECORATIVE FOUNTAINS OR WATER FEATURES PROVIDED FOR VISUAL ENJOYMENT MUST BE INSTALLED IN ACCORDANCE
WITH THE NATIONAL ELECTRIC CODE ANSI/NFPA 70 AND/OR THE AUTHORITY HAVING JURISDICTION. THIS PUMP IS NOT INTENDED FOR USE IN
SWIMMING POOLS, RECREATIONAL WATER PARKS, OR INSTALLATIONS IN WHICH HUMAN CONTACT WITH PUMPED MEDIA IS A COMMON OCCURRENCE.

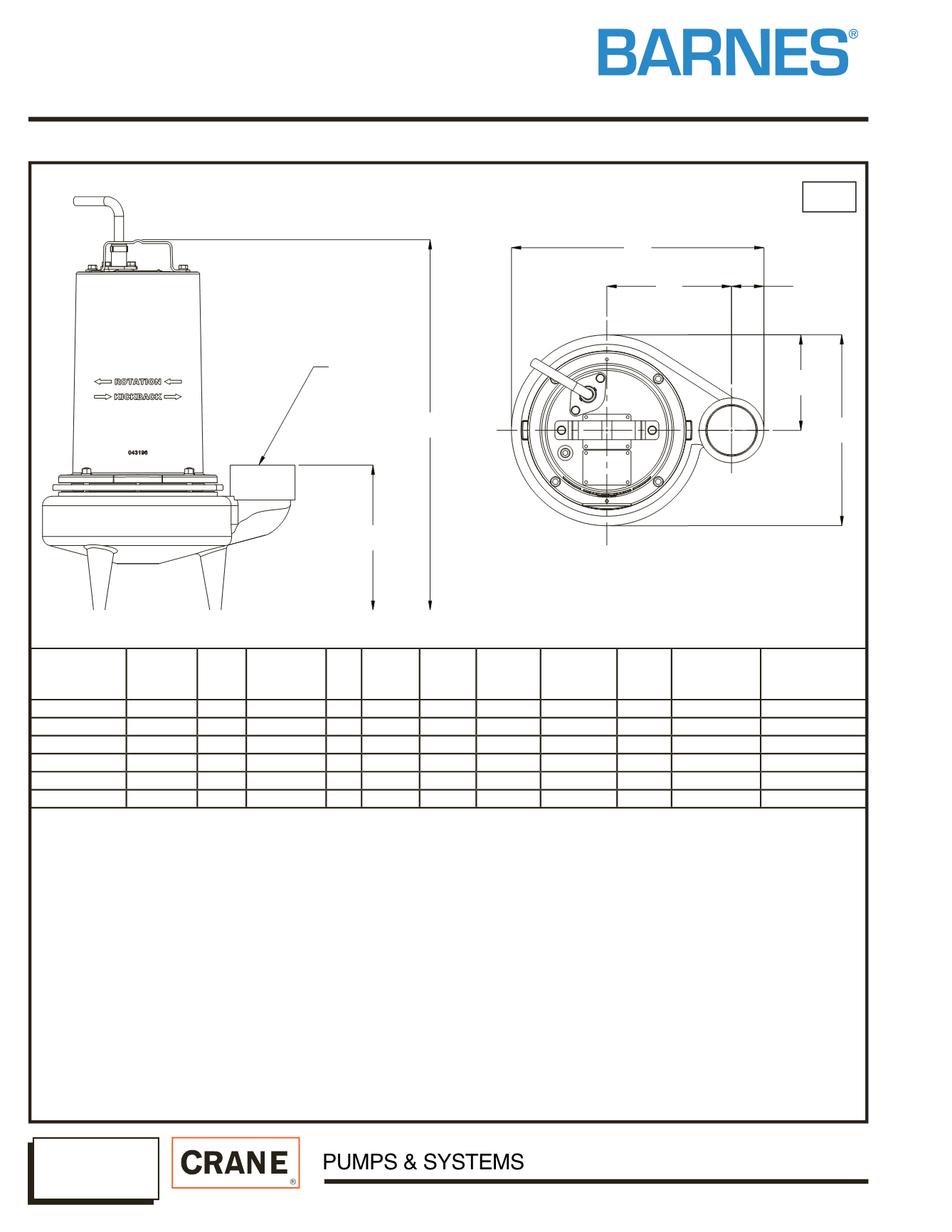

inches
(mm)
7/12
2.14
(54)
12.62
(321)
6.32
(160)
8.25
(209)
16.70
(424)
9.60
(243)
24.51
(622)
3.00 N.P.T.
DISCHARGE
MODEL NO PART NO HP VOLT/PH Hz RPM
(Nom)
NEMA
START
CODE
FULL
LOAD
AMPS
LOCKED
ROTOR
AMPS
CORD
SIZE
CORD
TYPE
CORD
O.D
inch (mm)
3SE1524HD 133463 1.5 230/1 60 1750 B 12.6 23.0 12/3 SOOW/SOW .61 (15.5)
3SE1594HD 133464 1.5 200-230/3 60 1750 H/L 8.8/8.0 30.4/36.0 12/4 SOOW/SOW .68 (17.4)
3SE1544HD 133465 1.5 460/3 60 1750 L 4.0 17.5 14/4 SOOW/SOW .57 (14.5)
3SE2024HD 133466 2.0 230/1 60 1750 B 14.5 29.0 12/3 SOOW/SOW .61 (15.5)
3SE2094HD 133467 2.0 200-230/3 60 1750 J/M 15.4/14.0 44.1/50.8 12/4 SOOW/SOW .68 (17.4)
3SE2044HD 133468 2.0 460/3 60 1750 M 7.0 25.4 14/4 SOOW/SOW .57 (14.5)
