SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Submersible Non-Clog Pumps
29
C
Professional Plumbing
Testing is performed with
water specific gravity of 1.0
@ 68˚F (20˚C), other fluids
may vary performance
6/10

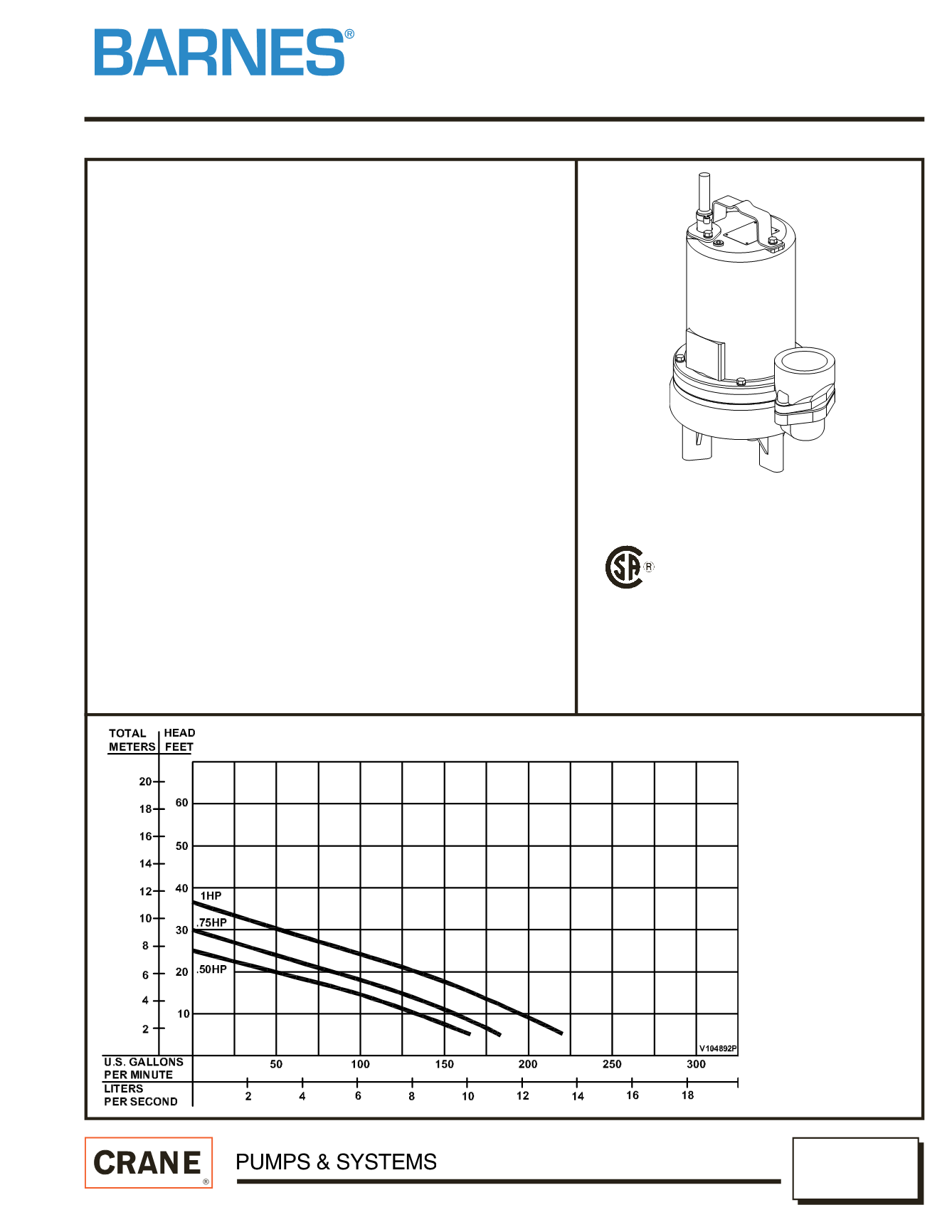

Series 3SE-L
2" Spherical Solids Handling
Single Seal
Series: 3SE-L
.5 - 1HP, 1750RPM, 60Hz
CSA 108 - File No. LR16567
UL 778
NRTL\C
DISCHARGE ...................................
3” NPT, Female, Vertical, Bolt-on Flange
LIQUID TEMPERATURE ................
104°F (40°C) Continuous
VOLUTE.............................................
Cast Iron ASTM A-48, Class 30
MOTOR HOUSING ............................
Cast Iron ASTM A-48, Class 30
SEAL PLATE ....................................
Cast Iron ASTM A-48, Class 30
IMPELLER:
Design
......................
2 Vane, open, with pump out vanes on
back side. Dynamically balanced, ISO G6.3
Material
.....................
Cast Iron ASTM A-48, Class 30
SHAFT
..............................................
416 Stainless Steel
SQUARE RINGS................................
Buna-N
HARDWARE ......................................
300 Series Stainless Steel
PAINT .................................................
Air Dry Enamel
SEAL:
Design
.......................
Single Mechanical
Material
......................
Carbon/Ceramic/Buna-N
Hardware -300 Series Stainless
CORD ENTRY....................................
30 ft. (9.1m) Cord. Plug on 120 Volt & .5HP.
240 Volt 1 Phase. Quick connect custom
molded for sealing and strain relief
UPPER BEARING..............................
Single Row, Ball, Oil lubricated
LOWER BEARING.............................
Single Row, Ball, Oil lubricated
MOTOR:
Design
.......................
NEMA L -Single Phase, NEMA B -Three phase
Torque Curve, Oil Filled, Squirrel Cage Induction
Insulation
....................
Class B
SINGLE PHASE.................................
Permanent Split Capacitor (PSC)
Includes Overload Protection in Motor
THREE PHASE..................................
200-240/480 is Tri-Voltage. 600V. Requires
Overload Protection to be included in control
panel
OPTIONAL EQUIPMENT ................
Seal Material, Impeller Trims, Additional cord,
Normally Closed Temperature Sensors with
cord for 3 phase pumps (Requires relay in
control panel).
ACCESSORIES .................................
Break Away Fitting (BAF)
Check Valve
Control Panel
DESCRIPTION:
SUBMERSIBLE NON-CLOG SEWAGE PUMP DESIGNED
FOR TYPICAL RAW SEWAGE APPLICATIONS
