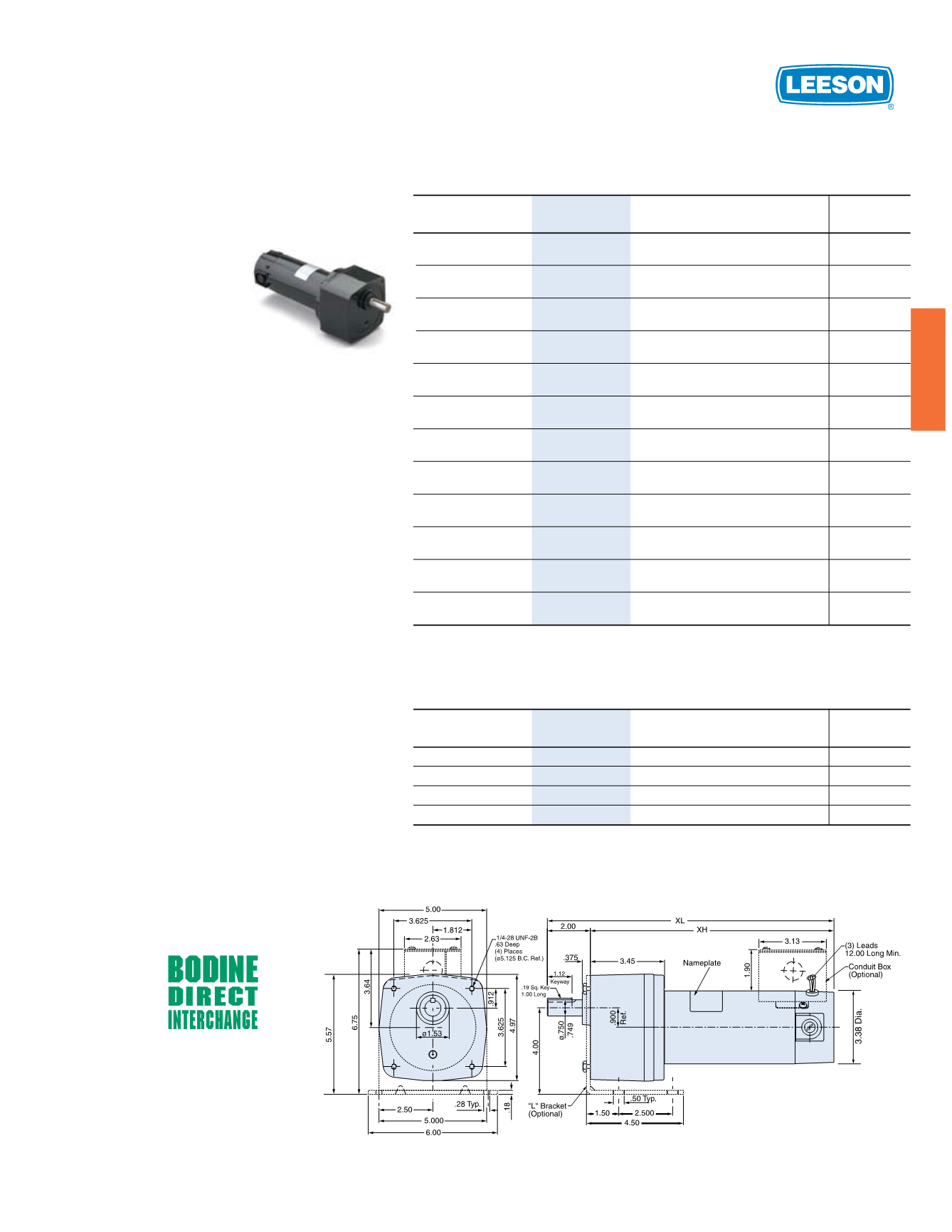

F.L. Arm F.L. Overhung DIMENSIONS
Output Torque Input Catalogue Type & Ratio Volts Amps Load XL XH
RPM (Lb.In.) HP Number Frame to 1 DC DC (lbs.) Inches
14 341 1⁄8 M1135243 P353-34 180 12 8.7 465 11.05 9.05
42 280 1⁄4 M1135244 P353-34 58 12 21.0 327 13.31 11.31
62 220 1⁄4 M1135245 P353-34 43 12 21.0 303 13.31 11.31
83 155 1⁄4 M1135246 P352-34 29 12 21.0 267 13.31 11.31
* ÎxäÊ- , -Ê ÊUÊ- ,Ê, /
* , Ê- /ÊUÊ/ 6ÊUÊ£°äÊ- ,6 Ê /",
F.L. Arm F.L. Overhung DIMENSIONS
Output Torque Input Catalogue Type & Ratio Volts Amps Load XL XH
RPM (Lb.In.) HP Number Frame to 1 DC DC (lbs.) Inches
7 330 1⁄8 M1135106 P353-34 336 90 0.70 565 11.31 9.31
7 330 1⁄8 M1135139 P353-34 336 180 0.35 565 11.31 9.31
14 341 1⁄8 M1135107 P353-34 180 90 1.00 465 11.31 9.31
14 341 1⁄8 M1135140 P353-34 180 180 0.50 465 11.31 9.31
21 371 1⁄4 M1135117 P353-34 124 90 1.10 413 13.31 11.31
21 371 1⁄4 M1135141 P353-34 124 180 0.55 413 13.31 11.31
27 305 1⁄4 M1135115 P353-34 91 90 1.50 374 13.31 11.31
27 305 1⁄4 M1135142 P353-34 91 180 0.75 374 13.31 11.31
42 280 1⁄4 M1135108 P353-34 58 90 2.30 327 13.31 11.31
42 280 1⁄4 M1135143 P353-34 58 180 1.20 327 13.31 11.31
50 250 1⁄4 M1135109 P353-34 50 90 2.30 315 13.31 11.31
50 250 1⁄4 M1135144 P353-34 50 180 1.20 315 13.31 11.31
62 220 1⁄4 M1135110 P353-34 43 90 2.30 303 13.31 11.31
62 220 1⁄4 M1135145 P353-34 43 180 1.20 303 13.31 11.31
83 155 1⁄4 M1135114 P352-34 29 90 2.30 267 13.31 11.31
83 155 1⁄4 M1135146 P352-34 29 180 1.20 267 13.31 11.31
125 100 1⁄4 M1135111 P352-34 23 90 2.00 256 13.31 11.31
125 100 1⁄4 M1135147 P352-34 23 180 1.00 256 13.31 11.31
165 70 1⁄4 M1135112 P352-34 15 90 2.00 232 13.31 11.31
165 70 1⁄4 M1135148 P352-34 15 180 1.00 232 13.31 11.31
250 45 1⁄4 M1135116 P352-34 10 90 2.00 201 13.31 11.31
250 45 1⁄4 M1135149 P352-34 10 180 1.00 201 13.31 11.31
500 25 1⁄4 M1135113 P352-34 5 90 2.00 194 13.31 11.31
500 25 1⁄4 M1135150 P352-34 5 180 1.00 194 13.31 11.31
SUB-FHP DC GEARMOTORS
PARALLEL SHAFT GEARMOTORS
PE350 SERIES - DC
SCR RATED:
25-371 In-Lbs Torque
LOW VOLTAGE:
155-341 In-Lbs Torque
Electrical Specifications:
SCR Rated Gearmotors
Totally enclosed,
permanent magnet DC
gearmotors, performance
matched for continuous
duty service over
a 60:1 speed range. All have
constant torque throughout the
range when powered by a full-wave
unfiltered SCR-type adjustable speed control
having a typical form factor of 1.3 to 1.4.
Low Voltage Gearmotors
Totally enclosed, permanent magnet DC gearmotors,
performance matched for continuous duty. Motors are
designed for battery power or can be used with a low
voltage controller with form factor up to 1.05.
Mechanical Specifications:
Gearbox has rugged aluminum die cast housing, for
maximum gear and bearing support. Precision machined
gearing, hardened for maximum load capability. All
gearing designed and rated to AGMA Class 9 standards
and to withstand momentary shock overload of 200%.
Oversized output bearings for greater overhung load
capacity and longer life. High-carbon alloy output shaft
provides maximum strength and rigidity. All needle
bearing journals are precision-ground after heat treating,
to provide maximum finish and fit. Heavy-duty industrial
oil seals help keep lubricant in and dirt out. Gears and
bearings are splash lubricated with permanent, heavy-
duty gear oil.
Conduit box not included with motor. Optional conduit
box shown on page 121.
Application Notes:
These gearmotors are designed for mounting at any
angle, but shaft up with motor below should be avoided
to prevent leakage of lubricant into the motor should the
motor’s shaft seal fail.
Overhung load capacities shown
are at center of output shaft.
The motor’s stall torque exceeds recommended full load
torques. A current limiting device such as an SCR control
should be used to prevent damage.
Model PE350 gearmotors have the same mounting
dimensions as Bodine’s “E” box and many Baldor
gearmotors.
ALL DIMENSIONS IN INCHES
