JACUZZI POOL P ARTS

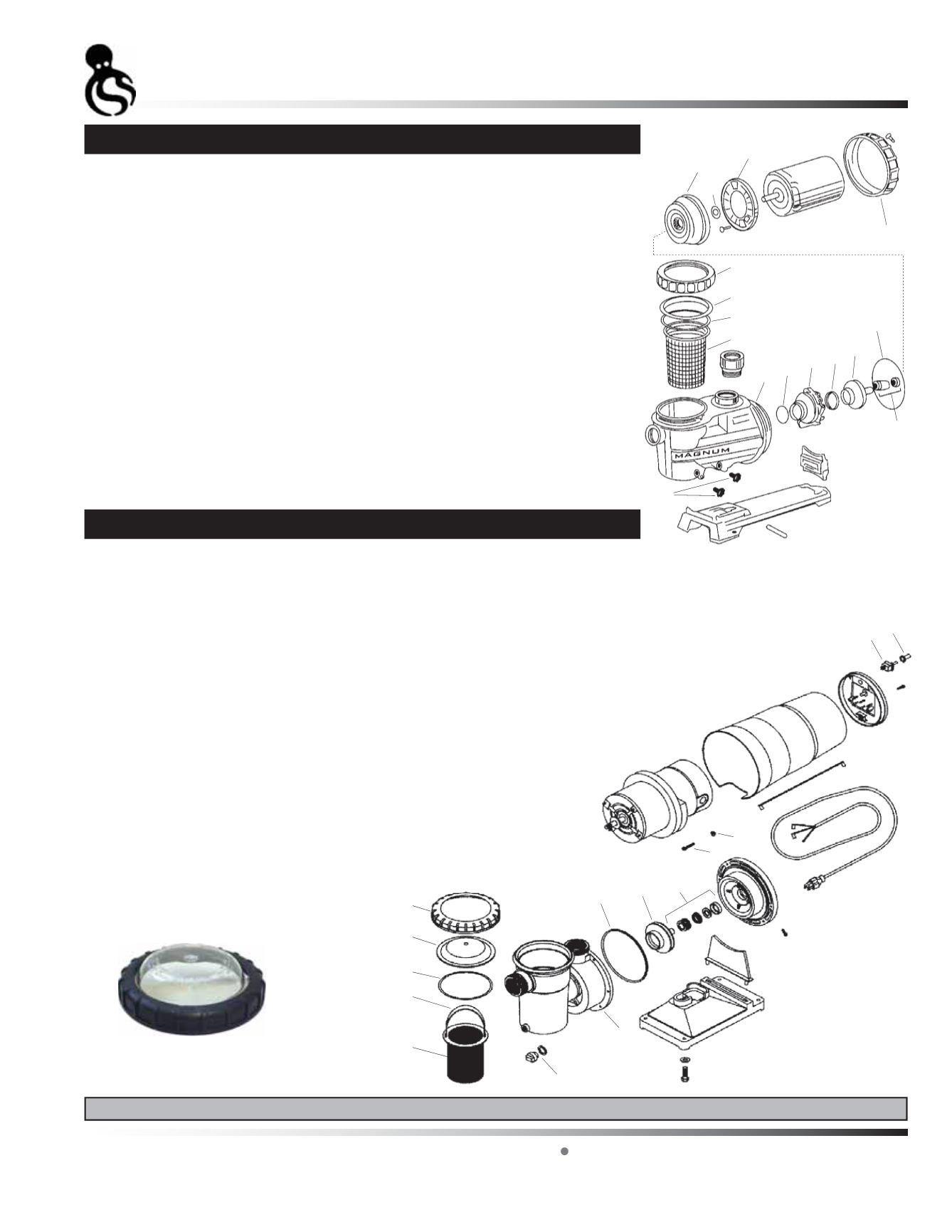

MAGNUM HIGH FLOW PUMP PARTS
SKU Number Description List Price Code
1 02-1366-04-R ......... Seal Housing Assembly ..............................................$ 131.42 C
2 SEAL-02................. Seal Housing Assembly ..............................................$ 11.32 A12-10
3 05-3801-00-R ......... Impeller Assembly with Wear Ring..............................$ 42.04 C
05-3802-09-R ......... Impeller Assembly with Wear Ring..............................$ 42.04 C
4 10-1462-07-R ......... Seal Ring ....................................................................$ 11.60 C
10-1463-14-R ......... Seal Ring ....................................................................$ 15.46 C
5 06-0157-05-R ......... Diffuser........................................................................$ 32.58 C
6 47-0232-54-R ......... Square Ring Gasket....................................................$ 2.74 C
7 47-0364-47-R ......... O-Ring.........................................................................$ 12.32 C
8 03-0856-02-R ......... Strainer Case ..............................................................$ 142.28 C
9 16-1095-06-R ......... Strainer Basket ...........................................................$ 26.32 C
10 39-2579-02-R ......... Strainer Cover.............................................................$ 37.42 C
11 47-0358-03-R ......... Strainer O-Ring ...........................................................$ 9.08 C
12 31-1609-06-R2 ....... Drain Plug with O-Ring (Set of 2)................................$ 5.76 C
13 42-2828-06-R ......... Strainer Nut.................................................................$ 27.14 C
14 22-3403-01-R ......... Flinger .........................................................................$ 1.64 C
15 02-1368-02-R .........Motor Housing Bracket ...............................................$ 56.32 C
16 42-2886-05-R ......... 8” Pump Mounting Nut ................................................$ 65.38 C
CHECK YOUR ORDER ACKNOWLEDGEMENT FOR AVAILABILITY OF PARTS
LRC PUMP PARTS
SKU Number Description List Price Code
1 SEAL-01.................Mechanical Seal Assembly .........................................$ 9.26 A25-10
2 05-3911-07-R ......... Impeller .......................................................................$ 74.80 C
3 47-0258-53-R ......... Square Ring Gasket....................................................$ 4.26 C
4 14-2223-01-R6 ....... Hex Washer Head Screw (Set of 6)............................$ 6.26 C
5 14-3971-03-R6 ....... Hex Flange Nut #10-24 (Set of 6) ...............................$ 4.60 C
6 16-0300-09-R ......... Strainer/Case Assembly..............................................$ 104.44 C
7 31-1609-06-R2 ....... Drain Plug with O-Ring (Set of 2)................................$ 5.76 C
8 16-0729-02-R ......... Strainer Basket with Handle........................................$ 14.40 C
8A 12-0924-09 ............. Handle.........................................................................$ 4.94 C
9 39-0753-10-R ......... Strainer Cover.............................................................$ 31.26 C
39-2524-08-R ......... Screw On Cover - Old Style........................................$ 38.66 C
10 42-1678-09-R ......... Strainer Nut.................................................................$ 31.26 C
11 23-1993-00-R ......... Toggle Switch..............................................................$ 18.58 C
12 23-3882-01-R ......... 1 Piece Rubber Boot & Nut.........................................$ 7.40 C
13 47-0352-41-R ......... Strainer O-Ring ...........................................................$ 10.48 C
12 11
4
3 2 1
7
6
5
10
9
13
8
8A
1
15
14
10
13
8 6
5 4 3
7
16
2
11
9
12
39-2524-08-R
(Old Style)
