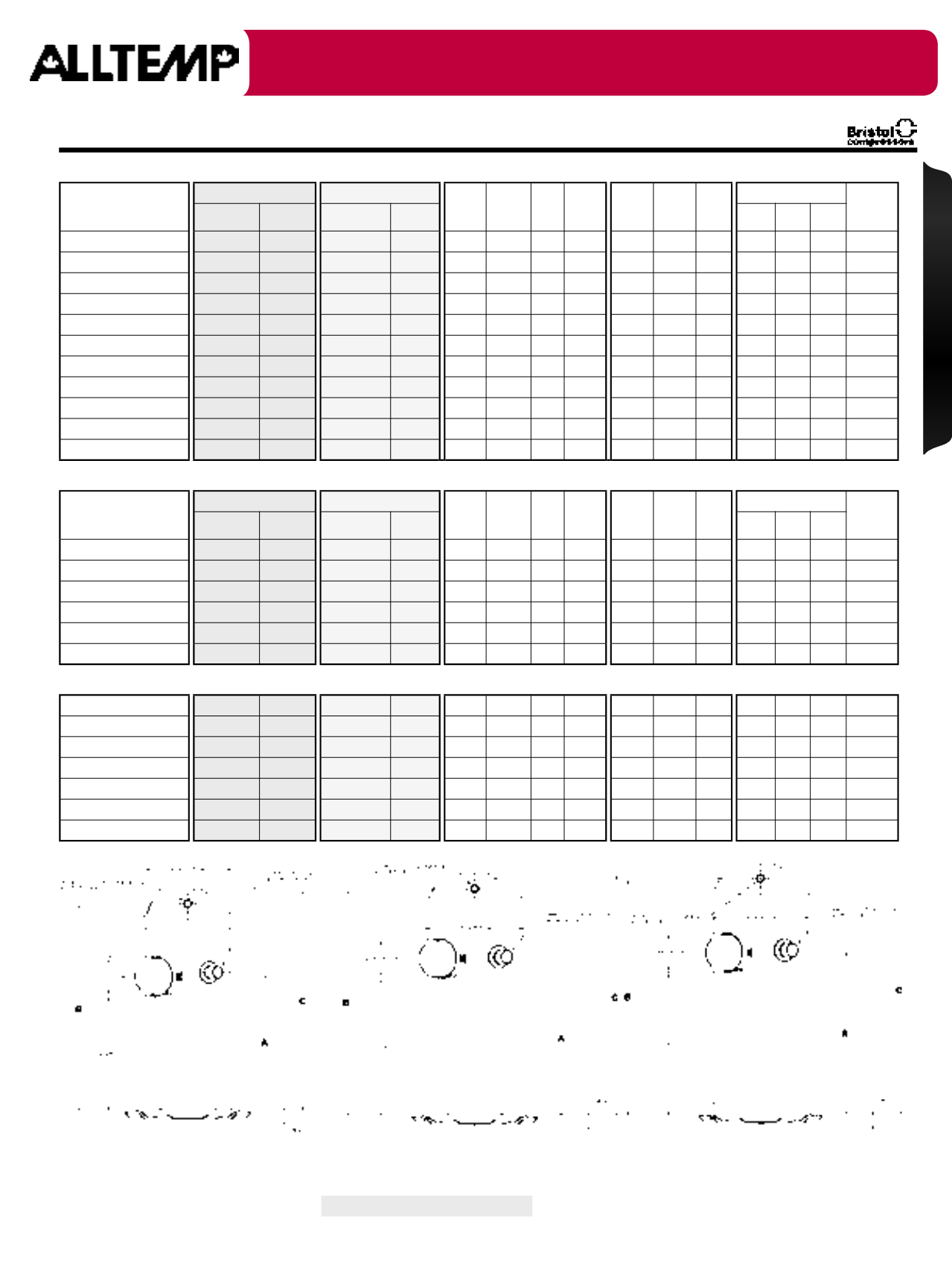

Butt’s Pumps and Motors - page 1017

12 Refrigeration www.alltemp.ca
Single Phase - 208/230 Volt (R22)
Part #
@45°F/130°F Evap @45°F/110°F Evap
HZ RLA LRA MCC Dis Suc
Oil
Chrg
(oz)
Dimensions (") Weight
(Lbs.) BTUH EER BTUH EER A B C
H20C233ABCA 22800 10.9 25700 15.1 50/60 11.5 64 18.0 1/2 S 3/4 S 36 9.4 14.3 15.8 60.1
H21C293ABCA 28700 11.0 32022 15.9 50/60 14.1 78 22.0 1/2 S 3/4 S 36 9.4 14.3 15.8 60.1
H21C343ABCA 33400 10.9 37579 15.9 50/60 16.7 97 26.0 1/2 S 3/4 S 36 10.2 15.2 16.7 68.0
H21C383ABCA 37500 10.9 42292 16.1 50/60 19.2 105 30.0 1/2 S 3/4 S 36 10.2 15.2 16.7 68.3
H21C403ABCA 39700 11.1 44573 16.0 50/60 18.3 115 28.5 1/2 S 3/4 S 36 10.2 15.2 16.7 68.3
H21C423ABCA 41400 11.0 46678 16.1 50/60 20.5 115 32.0 1/2 S 3/4 S 36 10.2 15.2 16.7 68.3
H21R453ABCA 44800 11.3 50169 16.1 50/60 23.4 126 36.5 1/2 S 7/8 S 65 12.2 17.2 18.8 88.8
H21R483ABCA 48500 11.4 54088 16.3 50/60 24.4 150 38.0 1/2 S 7/8 S 65 12.2 17.2 18.2 85.8
H21R543ABCA 54100 11.3 60521 16.3 50/60 26.9 175 42.0 1/2 S 7/8 S 65 12.2 17.2 18.8 93.0
H21R583ABCA 57900 11.3 65099 15.8 50/60 28.9 175 45.0 1/2 S 7/8 S 65 12.2 17.5 19.1 91.3
H21R603ABCA 60670 11.3 67979 16.1 50/60 28.9 175 45.0 1/2 S 7/8 S 65 12.2 17.5 19.1 93.0
Three Phase - 208/230 Volt (R22)
Part #
@45°F/130°F Evap @45°F/110°F Evap
HZ RLA LRA MCC Dis Suc
Oil
Chrg
(oz)
Dimensions (") Weight
(Lbs.) BTUH EER BTUH EER A B C
H20C403DBYA 39600 11.1 44300 13.9 60 12.4 90 19.4 1/2 S 3/4 S 36 10.2 15.2 16.7 66.8
H21C423DBYA 41400 11.0 44169 13.5 60 14.1 90 22.0 1/2 S 3/4 S 36 10.2 15.2 16.7 68.3
H21R453DBYA 44100 11.2 49580 16.2 60 13.0 93 20.0 1/2 S 7/8 S 70 12.2 17.2 18.8 74.7
H21R583DBYA 56500 11.3 63614 16.6 60 15.5 125 26.5 1/2 S 7/8 S 76 12.2 17.5 19.1 80.3
H20R603DBYA 59400 11.4 66434 15.7 60 16.0 125 25.0 1/2 S 7/8 S 76 12.2 17.5 19.1 87.8
H20R753DBYA 74800 11.4 83900 15.8 60 18.9 146 29.5 1/2 S 7/8 S 80 11.7 16.6 18.2 97.8
Three Phase - 460 Volt (R22)
H21C383DBEA 33200 10.9 37503 15.8 50/60 5.5 37.5 8.5 1/2 S 3/4 S 36 10.2 15.2 16.7 37.7
H21C343DBEA 33400 10.9 37579 15.9 50/60 16.7 96.7 26.0 1/2 S 3/4 S 36 10.2 15.2 16.7 67.7
H20C403DBEA 39700 11.1 44600 15.6 50/60 6.2 45 9.7 1/2 S 3/4 S 36 10.2 15.2 16.7 66.8
H21R453DBEA 44000 11.2 49580 16.2 50/60 6.4 46.5 10.0 1/2 S 7/8 S 70 12.2 17.2 18.8 81.0
H21R583DBEA 56600 11.2 63880 16.4 50/60 8.9 67 13.9 1/2 S 7/8 S 76 12.2 17.5 19.1 81.3
H21R603DBEA 58400 11.2 65607 16.4 50/60 9.1 67 14.2 1/2 S 7/8 S 76 12.2 17.5 19.1 81.3
H20R753DBEA 75300 11.6 83500 16.1 50/60 9.5 73 14.8 1/2 S 7/8 S 80 12.2 17.5 19.1 97.8
H20C & H21C H20R H21R
* Requires Motor Protection Part Numbers Ending In “R” = Rotolock Unless Otherwise Indicated All Compressors Are Sweat
R22 Scroll Compressors - Single Speed Air Conditioning
Compressors
