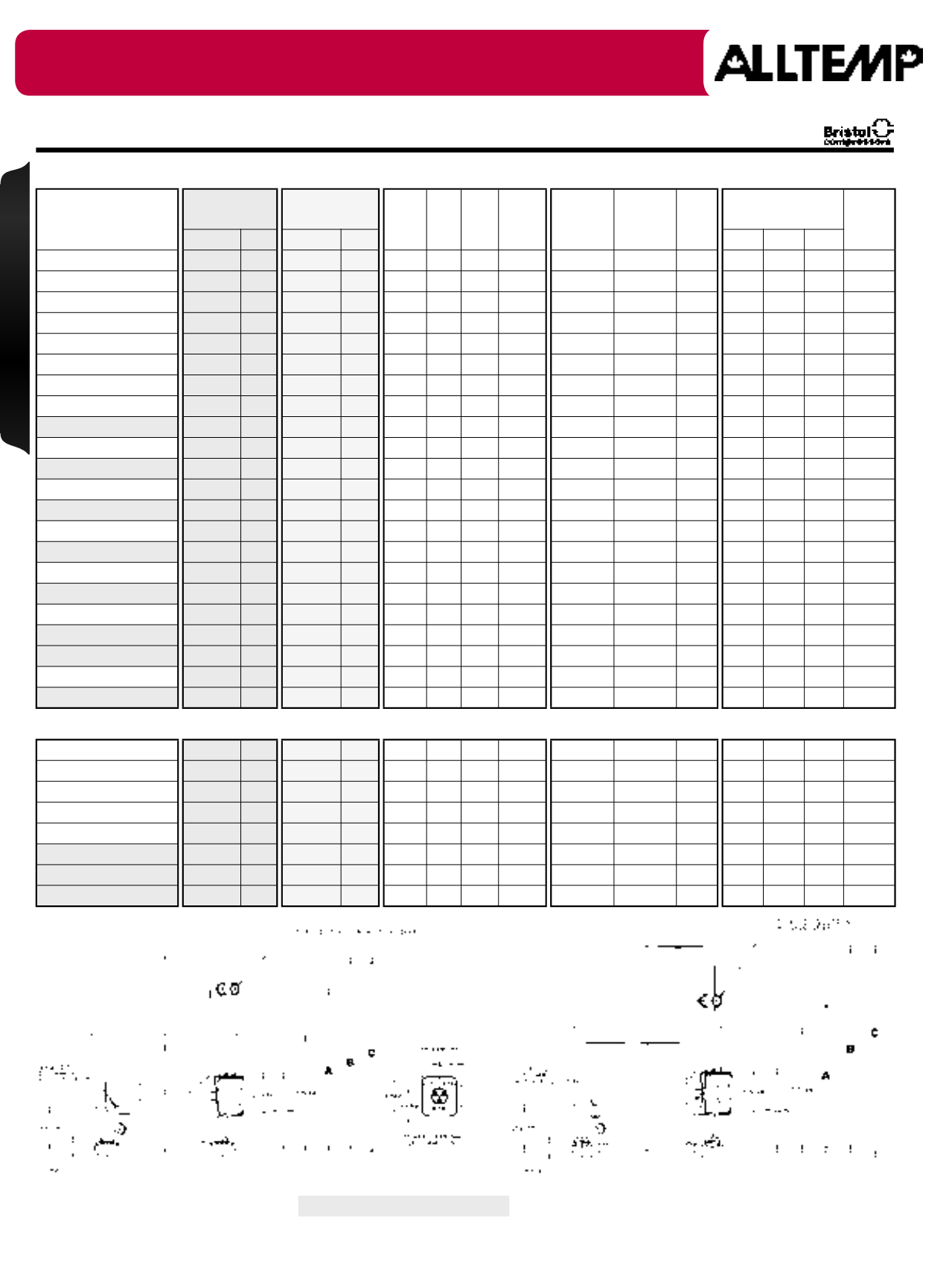

Butt’s Pumps and Motors - page 1020

15 Refrigeration www.alltemp.ca
Three Phase - 460 Volt (R22)
Part #
@45°F/130°F
Evap
@45°F/110°F
Evap HZ RLA LRA MCC Dis Suc
Oil
Chrg
(oz)
Dimensions (") Weight
(Lbs.)
BTUH EER BTUH EER A B C
H29B32UDBEA 31900 10.8 38089 14.8 50/60 4.5 40 8.1 1/2 E 3/4 S 35 12.2 14.2 14.5 71.0
H29B35UDBEA 34900 10.7 41396 14.6 50/60 4.9 40 8.6 1/2 E 3/4 S 40 12.0 14.2 14.5 71.0
H23A383DBEA 37900 10.4 45130 14.2 50/60 5.5 39 9.5 3/8 E 3/4 E 50 12.5 14.6 14.9 78.5
H23A423DBEA 42100 10.4 49820 14.1 50/60 5.7 39 9.5 1/2 E 7/8 E 50 12.5 14.0 14.9 78.5
H23A463DBEA 46300 10.5 54570 13.8 50/60 6.3 45 13.0 1/2 E 7/8 E 55 12.5 14.6 14.9 78.5
H23A543DBEA 53400 10.0 63061 13.3 50/60 7.5 53 14.0 1/2 E 7/8 E 55 14.0 16.1 16.4 84.0
H23A563DBEA 55600 10.3 66029 13.4 50/60 8.0 62 15.0 1/2 E 7/8 E 55 14.0 16.1 16.4 87.5
H23A623DBEA 60800 10.2 71127 13.3 50/60 8.8 62 16.0 1/2 E 7/8 E 55 14.0 16.1 16.4 87.5
H2BG094DBEER 88700 10.3 108684 14.5 50/60 12.3 72 19.0 1-1⁄4 × 12 1-3⁄4 × 12 96 9.0 17.6 17.9 138.0
H2BG094DBEE 88700 10.3 108684 14.5 50/60 12.3 72 19.0 7/8 S 1-1/8 S 96 9.0 17.6 17.9 138.0
H2BG104DBEER 103900 10.4 121853 13.9 50/60 14.6 87 22.0 1-1⁄4 × 12 1-3⁄4 × 12 96 9.0 18.3 18.7 153.0
H2BG104DBEE 103900 10.4 121853 13.9 50/60 14.6 87 22.0 7/8 S 1-1/8 S 96 9.0 18.3 18.7 153.0
H2BG124DBEER 119000 9.9 108273 14.2 50/60 17.0 85 25.0 1-1⁄4 × 12 1-3⁄4 × 12 96 9.0 18.3 18.7 155.0
H2BG124DBEE 119000 9.9 108273 14.2 50/60 17.0 85 25.0 7/8 S 1-1/8 S 96 9.0 18.3 18.7 155.0
H25G144DBEER 140000 10.1 167854 13.7 50/60 21.6 138 34.5 1-1⁄4 × 12 1-3⁄4 × 12 96 9.0 20.6 20.9 176.0
H25G144DBEE 140000 10.1 167854 13.7 50/60 21.6 138 34.5 7/8 S 1-1/8 S 96 9.0 20.6 20.9 176.0
H2NG184DPEFR* 183200 10.3 221942 14.3 50/60 25.9 117 40.0 1-1⁄4 × 12 1-3⁄4 × 12 224 11.8 21.8 22.4 259.0
H2NG184DPEF* 183200 10.3 221942 14.3 50/60 25.9 117 40.0 1-1/8 S 1-1/8 S 224 11.8 21.8 22.4 259.0
H2NG204DREFR* 212400 10.2 255610 13.8 50/60 30.0 141 49.0 1-1⁄4 × 12 1-3⁄4 × 12 224 11.8 21.8 22.4 259.0
H2NG244DREFR* 252900 10.0 298669 13.3 50/60 36.6 180 56.0 1-1⁄4 × 12 1-3⁄4 × 12 224 11.8 21.8 22.4 279.0
H2NG244DREF* 252900 10.0 298669 13.3 50/60 36.6 180 56.0 1-1/8 S 1-1/8 S 224 11.8 21.8 22.4 279.0
H2NG294DPEFR* 287300 9.5 341775 12.6 50/60 43.9 200 69.0 1-1⁄4 × 12 1-3⁄4 × 12 224 11.8 21.8 22.4 279.0
Three Phase - 575 Volt (R22)
H23A423DBFA 42100 10.4 49820 14.1 50/60 4.6 36 8.0 1/2 E 7/8 E 50 12.5 14.6 14.9 78.5
H23A463DBFA 46300 10.5 54570 13.6 50/60 5.0 36 10.0 1/2 E 7/8 E 55 12.5 14.6 14.9 78.5
H23A543DBFA 53400 10.1 63061 13.3 50/60 5.8 43 10.0 1/2 E 7/8 E 55 14.0 16.1 16.4 84.0
H23A563DBFA 55600 10.3 66029 13.4 50/60 6.1 50 12.0 1/2 E 7/8 E 55 14.0 6.1 16.4 87.5
H23A623DBFA 60800 10.2 71127 13.3 50/60 6.8 50 13.0 1/2 E 7/8 E 55 14.0 16.1 16.4 87.5
H2BG094DBFER 88200 10.3 108273 14.2 50/60 10.0 60 14.5 1-1⁄4 × 12 1-3⁄4 × 12 96 9.0 17.6 17.9 128.0
H2BG124DBFER 119000 9.9 143055 13.4 50/60 13.4 66 20.0 1-1⁄4 × 12 1-3⁄4 × 12 96 9.0 17.6 17.9 146.0
H2NG184DPFER 183200 10.3 221942 14.3 50/60 20.7 94 32.0 1-1⁄4 × 12 1-3⁄4 × 12 224 11.8 21.8 22.4 253.0
H23A & H23B H24B
* Requires Motor Protection Part Numbers Ending In “R” = Rotolock Unless Otherwise Indicated All Compressors Are Sweat
R22 Reciprocating Compressors - Single Speed
Air Conditioning
Compressors
