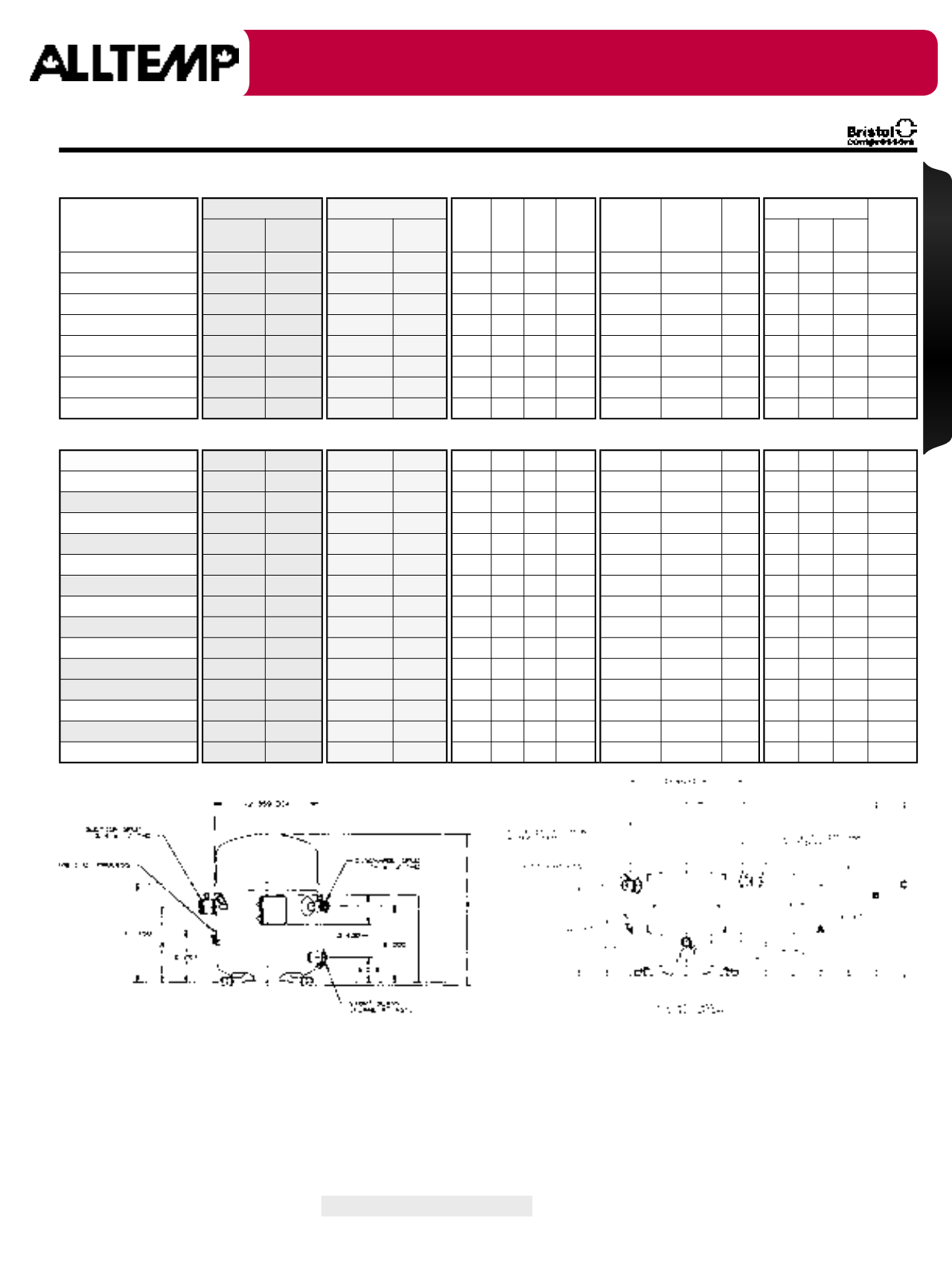

Three Phase - 200/208 Volt (R22)
Part #
@45°F/130°F Evap @45°F/110°F Evap
HZ RLA LRA MCC Dis Suc
Oil
Chrg
(oz)
Dimensions (") Weight
(Lbs.) BTUH EER BTUH EER A B C
H29B32UDBLA 32200 10.9 38336 15.0 50/60 9.0 78 16.0 1/2 E 3/4 S 35 12.2 14.2 14.5 71.0
H29B35UDBLA 35100 10.8 41405 14.6 50/60 9.6 78 16.0 1/2 E 3/4 S 40 12.2 14.2 14.5 71.0
H23A383DBLA 37900 10.4 45130 14.2 50/60 10.4 78 20.0 3/8 E 3/4 E 50 12.5 14.6 14.9 78.5
H23A423DBLA 42100 10.4 49820 14.1 50/60 11.7 78 20.0 1/2 E 7/8 E 50 12.5 14.6 14.9 78.5
H23A463DBLA 46300 10.5 54570 13.6 50/60 12.6 90 24.0 1/2 E 7/8 E 55 12.5 14.6 14.9 78.5
H23A543DBLA 53400 10.1 63061 13.3 50/60 14.5 106 27.0 1/2 E 7/8 E 55 14.0 16.1 16.4 84.0
H23A563DBLA 55600 10.3 66029 13.4 50/60 15.3 124 30.0 1/2 E 7/8 E 55 14.0 16.1 16.4 87.5
H23A623DBLA 60800 10.2 71127 13.3 50/60 17.0 124 32.0 1/2 E 7/8 E 55 14.0 16.1 16.4 87.5
Three Phase - 208/230 Volt (R22)
H2BG094DBDER 88700 10.3 108684 14.5 50/60 24.0 145 40.0 1-1⁄4 × 12 1-3⁄4 × 12 96 9.0 17.6 17.9 138.0
H2BG094DBDE 88700 10.3 108684 14.5 50/60 24.0 145 40.0 7/8 S 1-1/8 S 96 9.0 17.6 17.9 138.0
H2BG104DBDER 103900 10.4 121853 13.9 50/60 29.3 166 45.0 1-1⁄4 × 12 1-3⁄4 × 12 96 9.0 18.3 18.7 153.0
H2BG104DBDE 103900 10.4 121853 13.9 50/60 29.3 166 45.0 7/8 S 1-1/8 S 96 9.0 18.3 18.7 153.0
H2BG124DBDER 121500 10.1 144193 13.5 50/60 36.0 205 56.0 1-1⁄4 × 12 1-3⁄4 × 12 96 9.0 18.3 18.7 155.0
H2BG124DBDE 121500 10.1 144193 13.5 50/60 36.0 205 56.0 7/8 S 1-1/8 S 96 9.0 18.3 18.7 155.0
H25G144DBDER 140000 10.1 167854 13.7 50/60 43.1 252 69.0 1-1⁄4 × 12 1-3⁄4 × 12 96 9.0 20.6 20.9 176.0
H25G144DBDE 140000 10.1 167854 13.7 50/60 43.1 252 69.0 7/8 S 1-1/8 S 96 9.0 20.6 20.9 176.0
H2NG184DPDFR* 183200 10.3 224544 14.4 50/60 20.5 100 35.2 1-1⁄4 × 12 1-3⁄4 × 12 256 11.8 21.8 22.4 253.0
H2NG184DPDF * 183200 10.3 224544 14.4 50/60 20.5 100 35.2 1-1/8 S 1-1/8 S 256 11.8 21.8 22.4 253.0
H2NG204FRDFR* 212400 10.2 255610 13.8 50/60 60.0 282 98.0 1-1⁄4 × 12 1-3⁄4 × 12 224 11.8 21.8 22.4 259.0
H2NG244FRDFR* 252900 10.0 298669 13.3 50/60 73.1 360 112.0 1-1⁄4 × 12 1-3⁄4 × 12 224 11.8 21.8 22.4 279.0
H2NG244FRDF* 252900 10.0 298669 13.3 50/60 36.6 180 56.0 1-1/8 S 1-1/8 S 224 11.8 21.8 22.4 279.0
H2NG294FPDFR* 287300 9.5 341781 12.6 50/60 87.7 400 138.0 1-1⁄4 × 12 1-3⁄4 × 12 224 11.8 21.8 22.4 279.0
H2NG294FPDF* 287300 9.5 341781 12.6 50/60 87.7 400 138.0 1-1/8 S 1-1/8 S 224 11.8 21.8 22.4 279.0
* Requires Motor Protection Part Numbers Ending In “R” = Rotolock Unless Otherwise Indicated All Compressors Are Sweat
R22 Reciprocating Compressors - Single Speed
H2BG H2NG
Air Conditioning
Compressors
