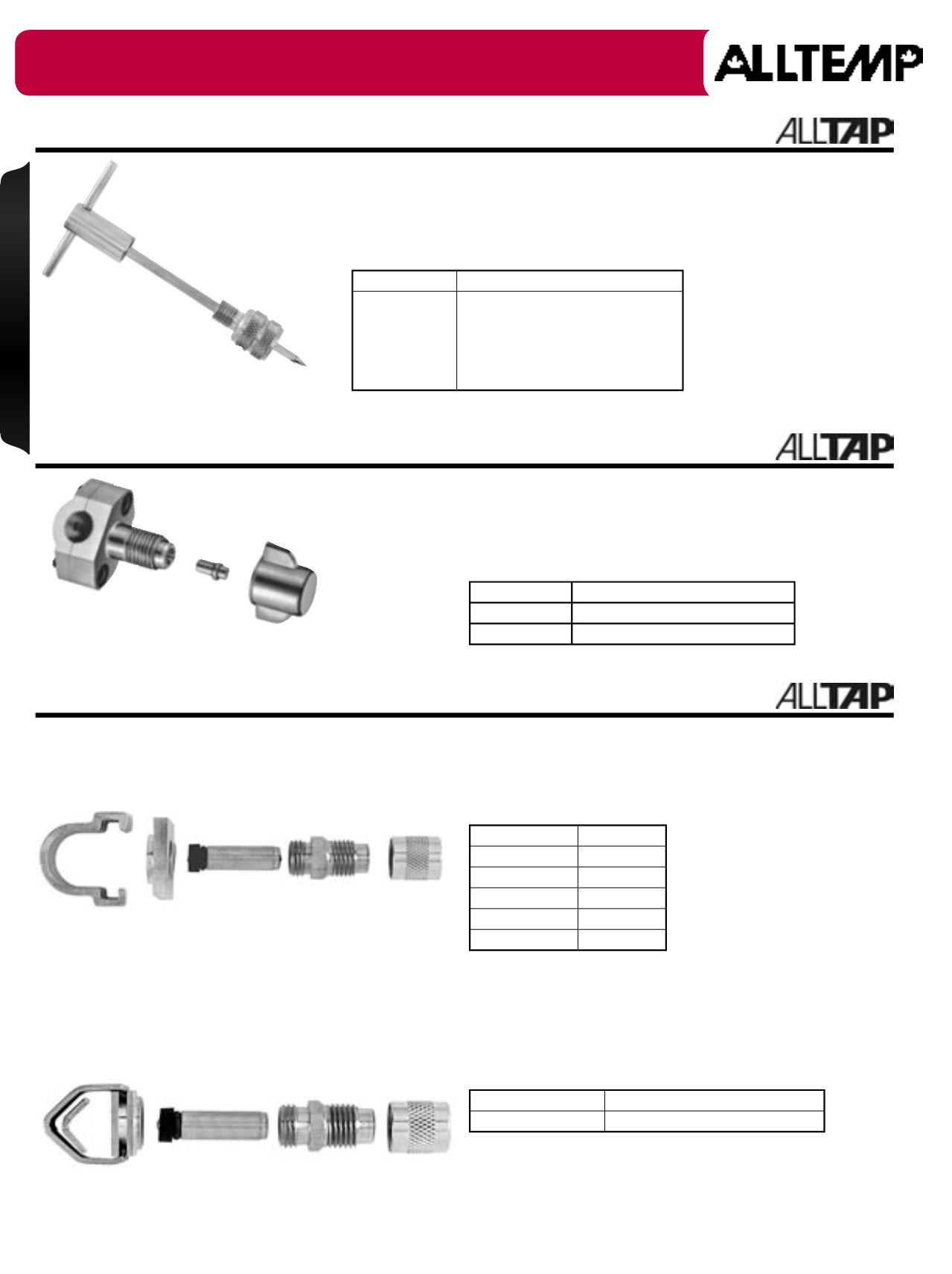

65
Refrigeration
Line Piercing Valve - O-Ring Seal
• Spring loaded needle automatically back-seats forming a leak proof seal.
• 100% restriction free.
• Simple installation.
Tube Piercing Attachment
Installation Instructions
1. Braze V-Series fitting onto line
2. Attach main body of CRT to
fitting
3. Attach TPA to the CRT body,
screw down needle to pierce
hole in tubing until it bottoms out.
It will not go through the other
side of the tube.
4. Pull back TPA handle. Shut off
system with CRT shut-off valve.
Remove TPA from the CRT.
Attach regular CRT rod with
core. Open shut-off valve. Screw
core into V fitting. Remove CRT.
Tube Piercing Attachment
Part #
Description
02-CD3090
• Optional tool for CRT
• With any CRT and special access
V-Series fitting, lines can be
pierced & core inserted into V
fitting.
CRT - Core Removal Tool
Clamp-on Service Valves
Clamp-On Service Valves
Part #
Tubing Size
02-CD2140
1/4"
02-CD2160
5/16"
02-CD2380
3/8"
02-CD2120
1/2"
02-CD2580
5/8"
Installation Instructions
1. Place aluminumchannel on
line. Insert aluminumslide into
grooves on channel.
2. Grip slide and channel with
pliers. Place steel pin in steel
body and screw into place.
3. Holding grip on channel and
slides, tighten steel housing.
Unique torque action provides
permanent clamp.
4. Continue to tighten steel
housing. Neoprene gasket on
pin gives long-life seal.
Clamp-on Line Piercing Service Valves
02-CD2580
Illustrated
02-CD3090
Illustrated
B Series
A line tap valve that is easy to use! Five individual
sizes for special access jobs. Viton gasket for heat
extremes.
Clamp-On Service Valves
Part #
Description
07-LT-456
1/4" to 3/8" Line Piercing Valve
07-LT-810
1/2" and 5/8" Line Piercing Valve
07-LT
Series
V Series Line Tap Valve
Part #
Description
02-CD4321
Fits 1/4", 5/16", 3/8" & 1/2" tubes.
V Series Line Tap Valve
A complete line tap valve. Each assembly fits
four sizes: 1/4", 5/16", 3/8" & 1/2" lines. Easy
to install.
02-CD4321
Illustrated
Tube Piercing Attachment
Punches a hole in copper tubing through a
V-Series fitting for the installation of a core
without loss of refrigerant.
Access Fittings
