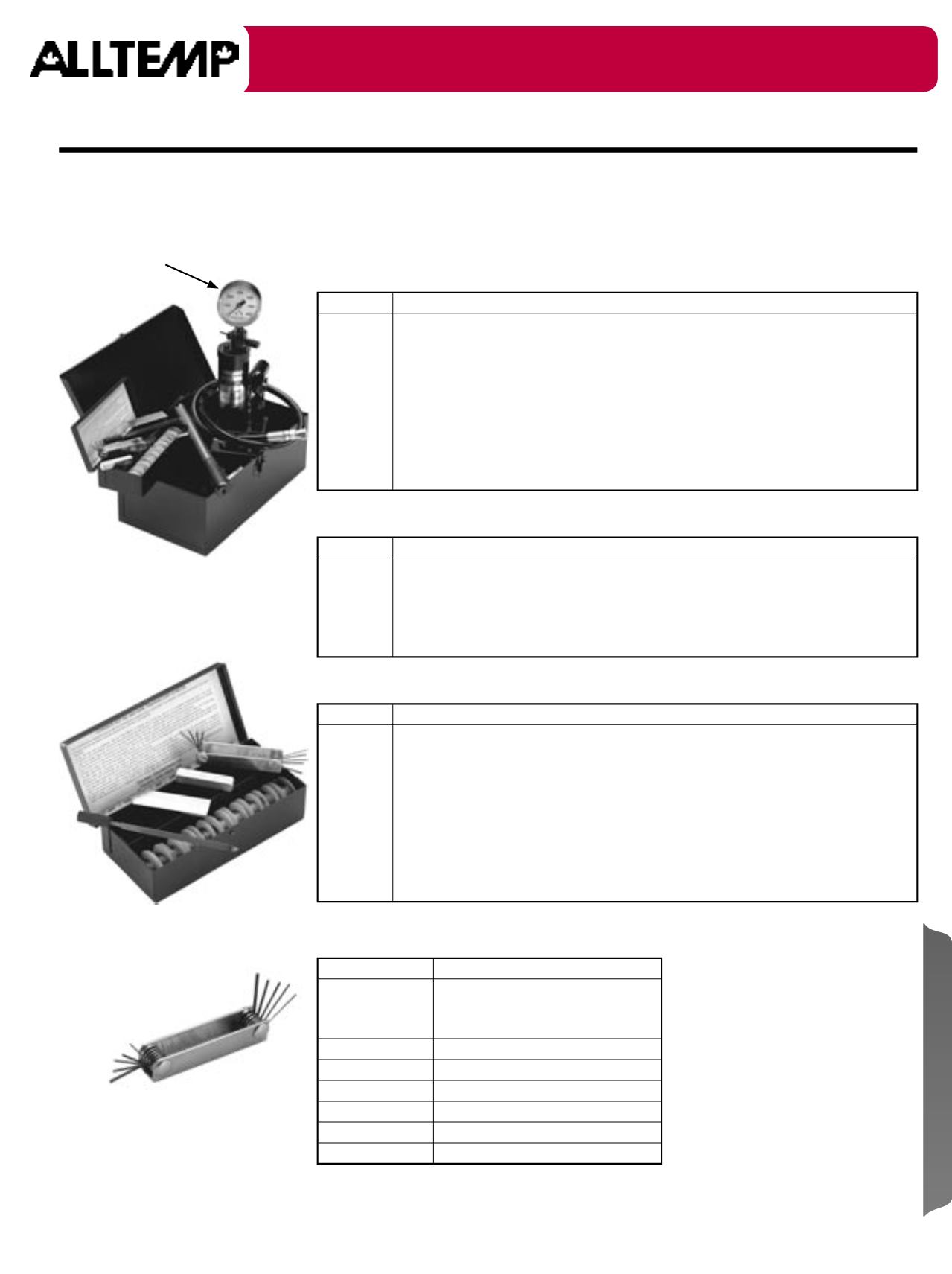

Service Tools
51-1003
51-1003
Cap-Check
Capillary Tubing Service Tools
Cap-Check
The Cap-Check is a Thermal Engineering innovation that has made cap tube cleaning possible and practical. It is
designed to pump a high rate of oil into the cap tube, building up pressures needed to open any plugged cap tube.
The Cap-Check will also clean partially plugged cap tubes when used with the 55-1101 Thermal Chaser Kit.
Cap-Check
Part #
Description
51-1003
• Cap-Check is a portable, self contained hydraulic power unit with auxiliary equipment
especially adapted to cleaning refrigeration capillary tubes.
• A 0 to 6000 PSI gauge shows pressure build-up if cap tube is restricted and also
shows when chaser has passed through the tube. A trigger operated gauge shut-off
is provided so the gauge will not be damaged if pressures greater than 6000 PSI
are desired. A 30" high pressure hydraulic hose with a 1/4" SAE male flare outlet
connects the cap tube to the Cap-Check for simple handling.
• An adapter is supplied to connect the cap tube directly to the hose outlet without a
flared fitting
Cap-Check Outfit Kit
Part #
Description
55-5101
• Cap-Check Outfit provides both the Cap-Check and Chaser Kit in one compact case
along with an extended base that holds the Cap-Check. The Cap-Check can be
operated with one hand, allowing high pressures to be easily pumped.
• Carrying case has clips to hold Cap-Check, Chaser Kit, hose, handle and extended
base.
Cap-Check Outfit
Part #
Description
55-1101
• Chaser Kit is the only means available to clean partially plugged cap tubes. The kit
must be used with the Thermal Cap-Check since no other cap tube cleaning tool
provides a rate of oil flow large enough to remove partial restrictions even from the
smallest cap tubes.
• The Chaser Kit consists of 10 spools of lead alloy wire which can be used as a chaser
for the 10 most popular sizes of cap tubes (0.028, 0.031, 0.036, 0.039, 0.042, 0.046,
0.050, 0.055, 0.064, 0.070).
• In addition to the wire, a cap tube gauge, a set of sizing tools and a combination
file/reamer are all included in a durable metal case.
55-5101
Kit Illustrated
55-5101
Illustrated
Cap-Check Accessories
Part #
Description
55-1003RK
Cap-Check Repair Kit-complete set
of gaskets,"0" rings, springs, and
balls for 1003, with instructions.
12-1102
Capillary tubing gauge.
55-1011
0 to 6000 PSI gauge
55-1012
30" Hydraulic hose.
55-1056
Adapter seals for 55-1012 (12pk.)
55-1201
Carrying case for Cap-Check.
55-1301
Extended base for Cap-Check.
12-1102
THERMAL
Capillary Tube Tools
