Motors

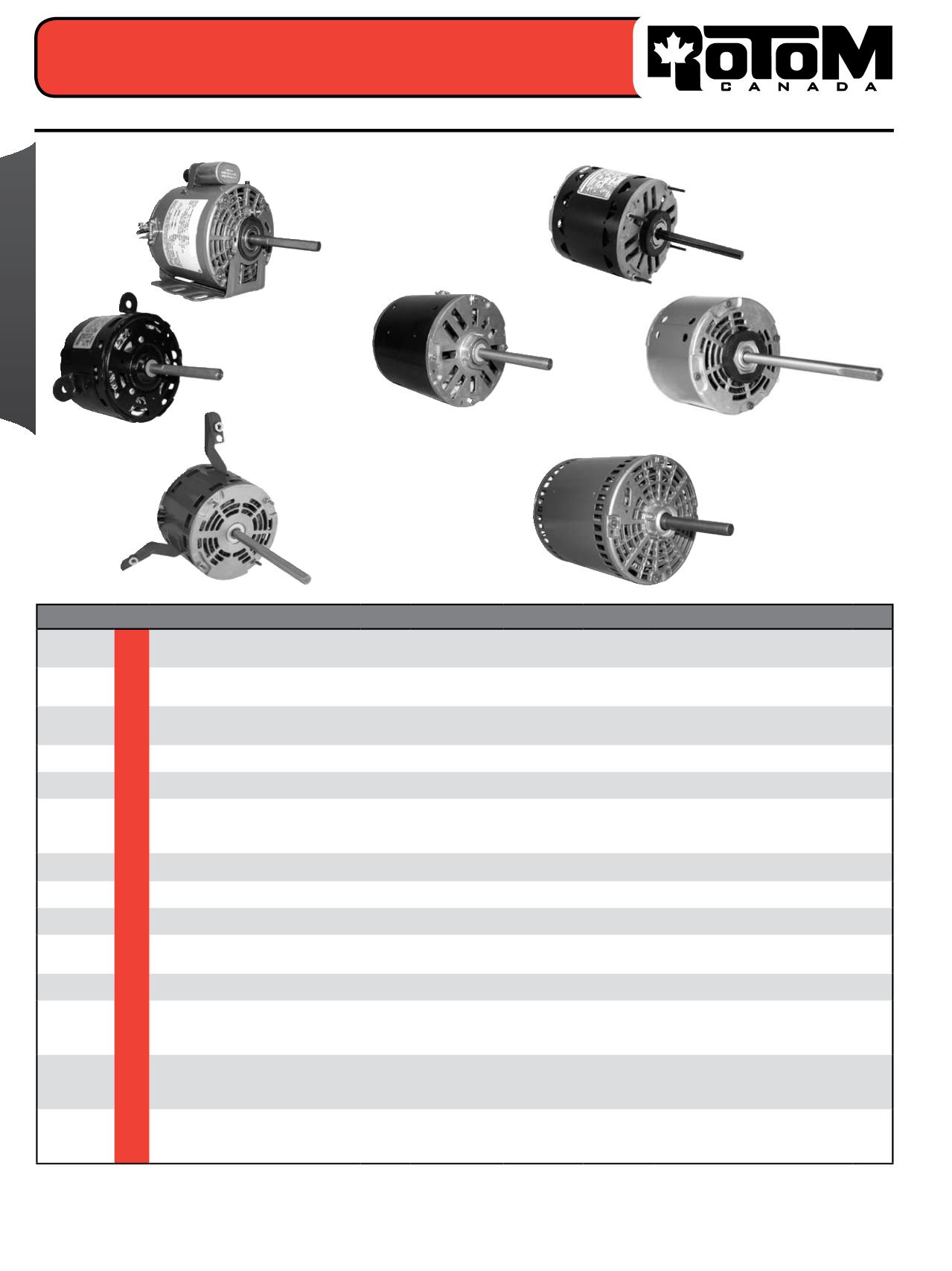

5.5" Motors
5.5" Motors
Fig.1
R3001
Part # HP Amps Spd/RPM Rot.
Body Shaft
Cap.
Bearing
Comment
Fig.
DD-045
1/3
2.30 4/1075
REV.
4.30 6.0"×1/2" 10/370
SLEEVE FM1036, D1734, 3786, R42349 6
DD-3586
1/3
2.60 3/1075
REV.
4.28 4.5"×1/2"
5/370
SLEEVE
D1036, WG840586, 1972, D923,
E204, 3586,X003, 529, R43586
2
R3001
1/3
1.80 1/1625
C.W.
4.50 3.5"x1/2"
INC.
SLEEVE
HILL PP3955B,
G E 3001, 5KCP39KG1369
1
R42781
1/3
2.30 3/1625
REV.PLUG
4.60 6.5"x1/2"
5/370
SLEEVE U.E.454, FASCO D781, D787 2
R32011
1/3
2.30 3/1625
REV.PLUG
5.30 6.0"x1/2"
5/370
SLEEVE FASCO D781, 5KCP39HGE214T 4
R3005
1/3
2.40 1/825
C.W.
5.00 3.5"x1/2" 12.5/370
SLEEVE
COPELAND 050-0107-00,
0234-00G.E.3005,
5KCP39PG3224, 915S
4
R22011
1/3
2.50 2/1075
REV.
4.80 4.0"x1/2"
5/370
SLEEVE
YORK 24-12737-000
3
R22012
1/3
2.50 2/1075
REV.
4.00 4.0"x1/2"
5/370
SLEEVE U.E.536, FASCO D803
3
R10810
1/3
2.70 1/1625
C.W.
4.50 7.5"x1/2"
3/370
SLEEVE
208 Volt only
5
R42132
1/3
3.00 3/1075
REV.PLUG
5.00 6.0"x1/2"
5/370
SLEEVE
FASCO D723,D923,
U.E.132, 529, MARATHON X003
2
R43586
1/3
3.10 3/1075
REV.
4.31 4.5"x1/2"
5/370
SLEEVE
GE 3586
2
R42349
1/3
3.70 3/1075
REV.PLUG
4.60 6.0"x1/2" 7.5/370
SLEEVE
GE 3786, CARRIER
HC39XE224HC41ME244,
HC43ME244
6
R32117
1/3
3.80 1/825
REV.PLUG
5.90 5.3"x1/2"
4/370
SLEEVE
U.E.117, FASCO D2017,
D2817,LENNOX P-8-2948,
P-8-9080
2
R42237
1/3
4.80 4/1075
REV.PLUG
5.30 6.0"x1/2"
10/440
SLEEVE
CARRIER HC41SE651,
HC39SE651BDP P251-5306,
P251-5408
7
Fig.2
R42781
R42132
R43586
R32117
DD-3586
Fig.3
R22011
R22012
Fig.4
R3005
R32011
Fig.5
R10810
Fig.6
R42349
DD-045
Fig.7
R42237
Single Shaft - 208/230 Volts - Open
Sleeve & Ball Bearing - PSC
Motors continued next page
Motors continued from previous
